Sanyo PLC-ZM5000

1920 x 1200 resolution - 5,000 lumens


Using the popular “M-series” cabinet design, the PLC-ZM5000 offers 5,000 ANSI, WUXGA resolution for the mid range installation market. Native WUXGA resolution offers seamless compatibility with high resolution PC signals, with full capability to display High Definition video signals (1080p). HDMI, DVI-D, Dsub-15 and RGBHV terminals offer compatibility with digital and analogue sources. Inorganic optical components and iris control deliver and enhanced contrast ratio (2000:1) and provide superior image quality, while horizontal and vertical lens, keystone correction and a range of optional lenses covering throw ratios from 0.8:1 through to 7.36:1 provide unrivalled flexibility for the mid range installation market. Centre mounted lenses simplify installation, while SANYO’s Auto Maintenance Filter System enables the projector to operate for up to 10,000 hours without filter maintenance. Once installed an RJ45 port enables either the PLC-ZM5000L to be monitored and controlled across the network to ensure that the resource is available when required.


5000 ANSI Lumen Brightness
1920 x 1200 (WUXGA) Native Resolution
Automatic Maintenance Filter
5 Optional Lenses
Mechanical Shutter

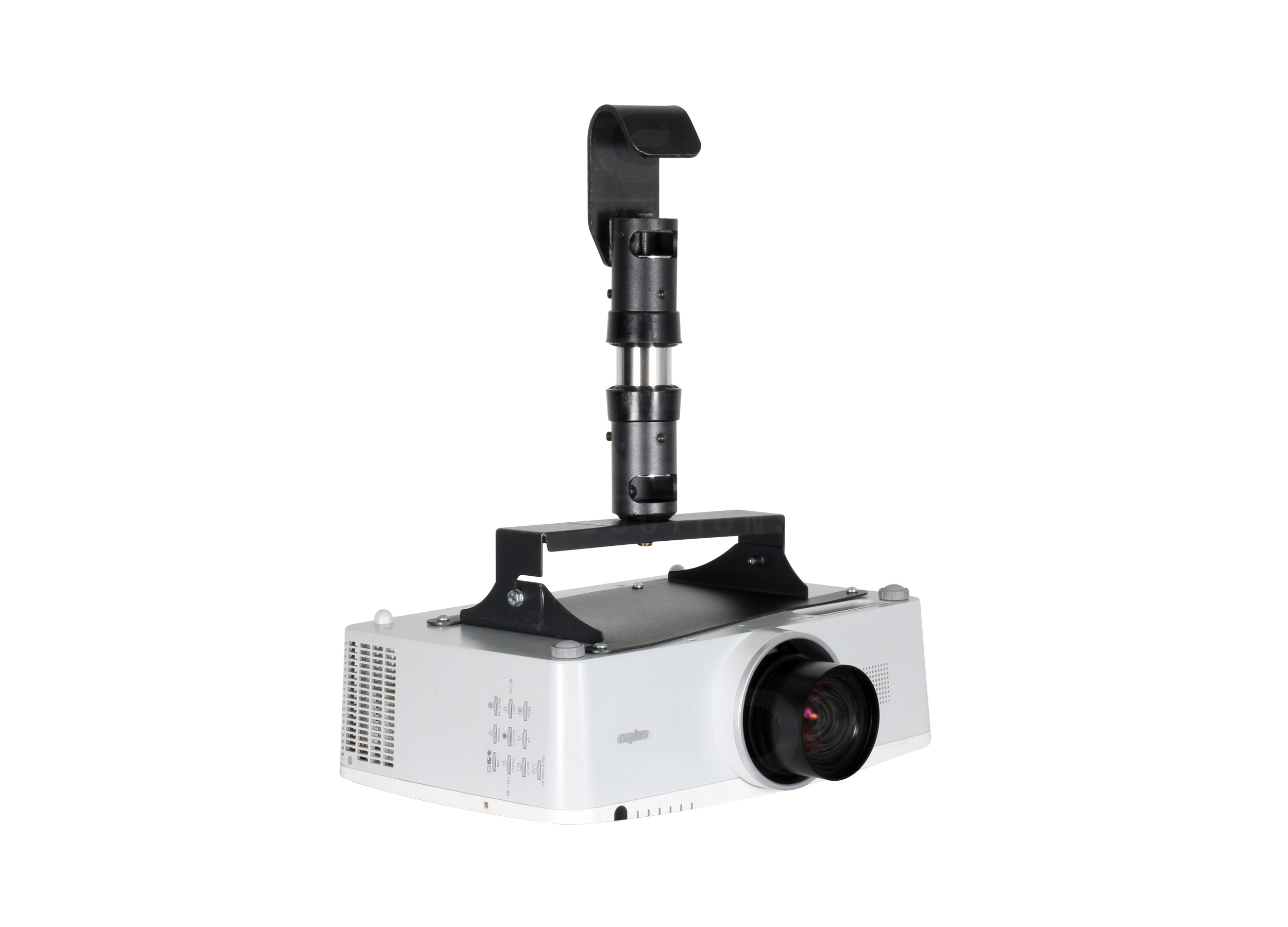

360° Installation

Technical Specification

Panel 3 x 0.76" polysilicon TFT Active Matrix - Inorganic
Lamp 330w NSHA
Brightness ANSI lumens 5000
Lamp Service Life 3000h (Eco Mode)
2000h (Normal Mode)
Fan Noise 29dBA (Eco Mode)
Contrast Ratio 2000:1
Resolution in pixels 1920 x 1200
Image size min–max (diagonal) 40" - 400"
Uniformity 90%
Bandwidth/Frequency 162MHz
Horizontal 15kHz - 120kHz
Vertical 48Hz - 100Hz
Colour Systems NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

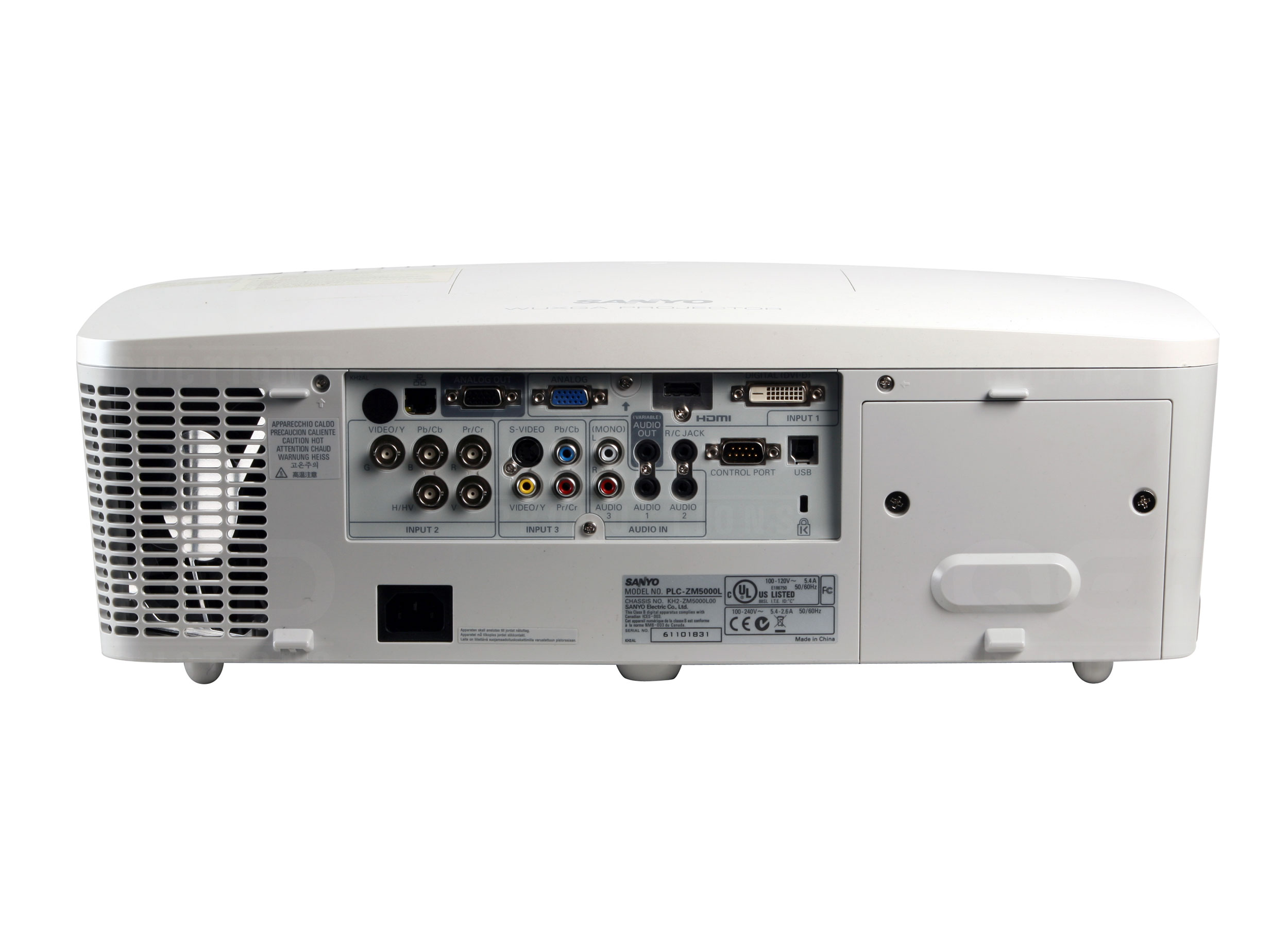

Connections 1 x HDMI, 1 x DVI-D, 1 x Dsub15, 1 x 5BNC, 1 x 3 RCA, 1 x Monitor out, 1 x RJ45
Keystone Correction Vertical ±30°
Horizontal ±30°
HDTV Signals 1080p/50, 1080p/60, 1080i/50, 1080i/60, 720p/50, 720p/60
Computer Compatibility WUXGA, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC
Power Consumption/Voltage 415w (Eco Mode)
488w (Normal Mode)
0.6w (Standby Mode)
Dimensions (W x H x D) 489.5 x 164 x 371.1mm
Weight 9.0kg
