Overview
The PLC-XP200L features QUADRIVE, a new optical engine design which adds a Colour Control Device to manage yellow light within the optical engine. The results are outstanding. QUADRIVE yields a 20% increase in available colour space, and the PLC-XP200L delivers visible improvement in colour purity, with reds and greens being especially vibrant. The PLC-XP200L offers Horizontal and Vertical Lens Shift and Keystone Correction, an Auto Maintenance Filter for extended service intervals, as well as compatibility with all existing XP series lenses.
Features
| New LCD "Quadrive" Optical Engine |
| 7000 ANSI lumen |
| DVI-D(HDCP), Dsub15, 5 x BNC inputs |
| Active Maintenance Filter system (AMF) |
| Mechanical Shutter |
| Horizontal and Vertical Powered Lens Shift |
| Horizontal and Vertical Digital Keystone |
| 5 Interchangeable Lenses |
Technical Specification
| Panel | 3 x 1.3" TFT p-Si (4 : 3), microlens |
| Panel Type | LCD |
| Lamp | 330W NSH (LMP-124) |
| Brightness | 7000 ANSI lumens |
| Lamp Service Life |
3,000h (Eco Mode) 2,000h (Normal Mode) |
| Fan Noise | 35 dBA |
| Contrast Ratio | 2,200 : 1 |
| Resolution in pixels | 1,024 x 768 (XGA) |
| Image size min–max (diagonal) | 31" – 400" |
| Uniformity | 90% |
| Bandwith/Frequency |
180MHz Horizontal 15kHz-100kHz Vertical 48Hz-100Hz |
| Colour Systems | PAL, SECAM, NTSC, NTSC4.43, PAL-M/N |

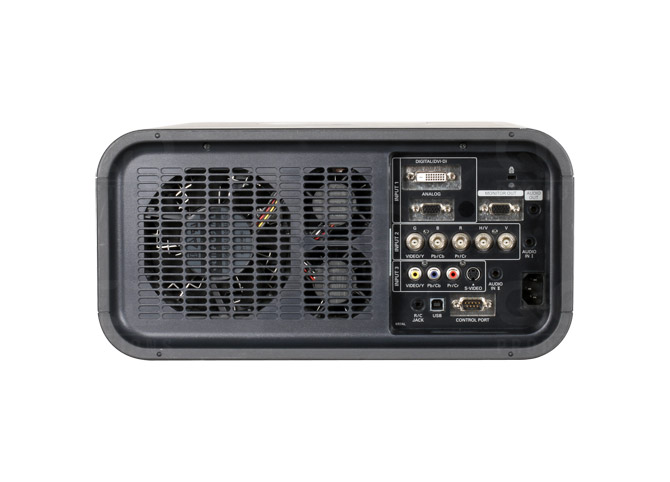

| Connections |
Input: 1: DVI-D (digital / HDCP) Input 2: D-Sub15 (RGB / SCART-RGB) Input 3: 5 x BNC (RGBHV / Video / Y-Pb/Cb-Pr/Cr) Input 4: 3 x RCA (Video/Y-Pb/Cb-Pr/Cr)Monitor Output: D-Sub15 Control input 1: D-Sub9 (RS232) Control input 2: USB type B (Mouse Control) |
| Keystone Correction |
Vertical ±40° Horizontal ±20° |
| Lens-Shift |
Vertical: 10:0 to 1:1 Horizontal: 2:3 to 3:2 |
| HDTV Signals | 1080i/50, 1080i/60, 1035i, 720p |
| Computer Compatibility | UXGA / SXGA / SXGA+ / WXGA / XGA / S-VGA / VGA / Mac |
| Power Consumption/Voltage | 499W |
| Dimensions (W x H x D) | 370mm x 187mm x 440 mm |
| Weight | 11.4kg |
