Sanyo PLC-XP100

1024 x 768 resolution - 6,500 lumens


The PLC-XP100L high brightness projector offers 6500 ANSI, XGA resolution, compatibility with five XP series lenses, as well DVI and RGBHV connectivity. Benefiting from an in-organic LCD panel, the PLC-XP100L achieves improved black levels over previous XP products, as well as improved colour reproduction. In addition, the PLC-XP100L offers both horizontal and vertical keystone correction and lens shift, and benefits from an Active Filter Maintenance system which under normal operating conditions can reduce filter maintenance to an interval of up to 10,000 hours. The PLC-XP100L is ideally rental and staging applications.


6,500 ANSI lumens
2,000:1 contrast ratio
Inorganic 3LCD panels for superior image quality
Automatic air filter replacement reduces maintenance
Horizontal and vertical lens shift
Network integration (optional) with control camera
5 interchangeable lenses

Technical Specification

Panel 3 x 1.3" TFT p-Si (4:3) micro lens
Panel Type LCD
Lamp 330W NSHA
Brightness (ANSI Lumens) 6500
Lamp Service Life 3000h (Eco Mode), 2000h (Normal Mode)
Fan Noise 32dBA(Eco Mode), 40dBA (Normal Mode)
Contrast Ratio 2000:1
Resolution in Pixels 1024 x 768 (XGA)
Image Size min-max (Diagonal) 31" - 400"
Uniformity 90%
Lamp Life (Long Life) 3000 hours
Bandwith/Frequency 180MHz, Horizontal 15kHz-100kHz, Vertical 48Hz - 100Hz
Colour Systems PAL/ SECAM/ NTSC/ NTSC4.43/ PAL-M/N

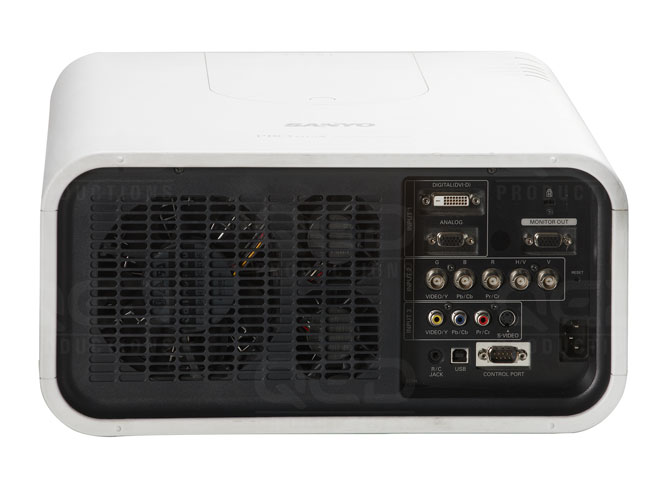

Connections Input 1: DVD-D (HDCP)
Input 2: Dsub15 (RGB)
Input 3: 5-BNC (RGBHV, Video, Y-Pb/Cb-Pr/Cr)
Input 4: S-Video
Input 5: RCA (Composite)
Keystone Correction Vertical And Horizontal
Lens-Shift Motorised
HDTV Signals 1080i, 1035i, 720p, 480p
Computer Compatibility UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC
Zoom/Focus Depending on Lens
Power Consumption/Voltage 392W (Eco Mode), 490W (Normal Mode)
Dimensions (W x H x D) 370 x 187 x 440mm
Weight 11.7kg
