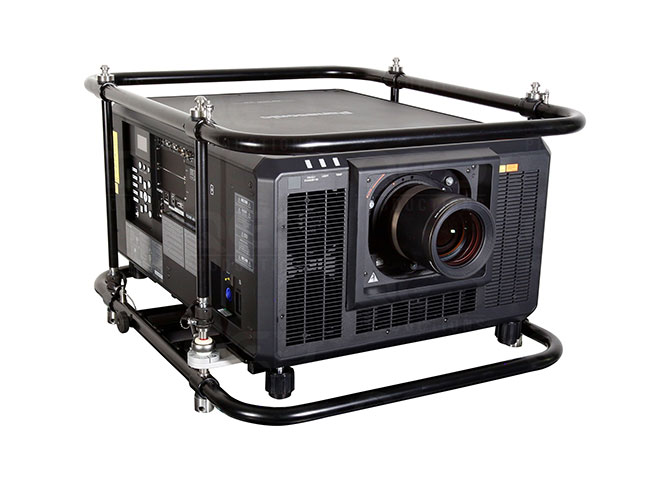

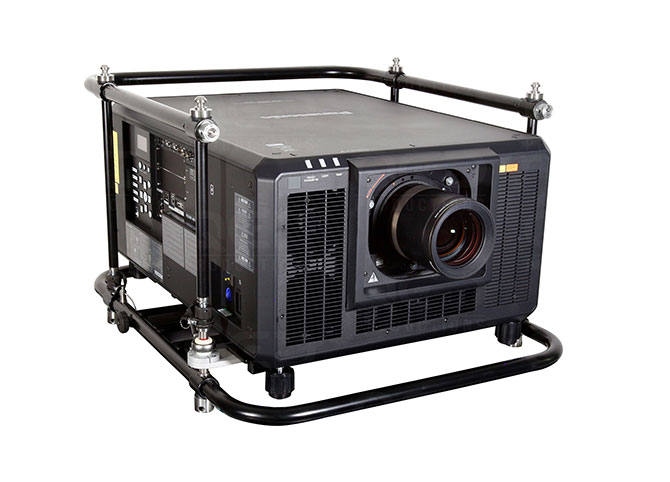

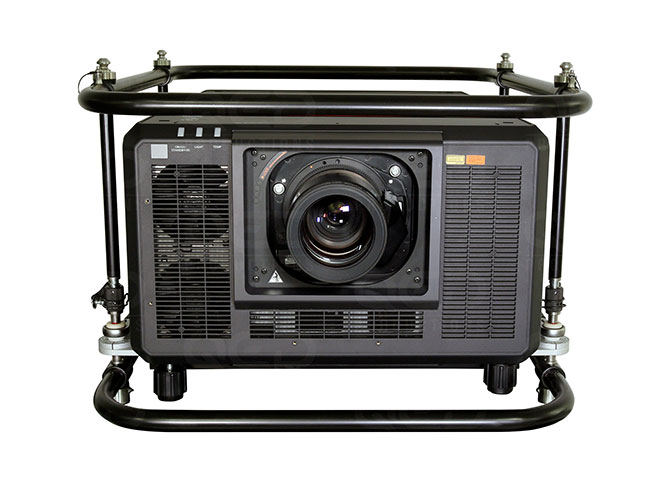

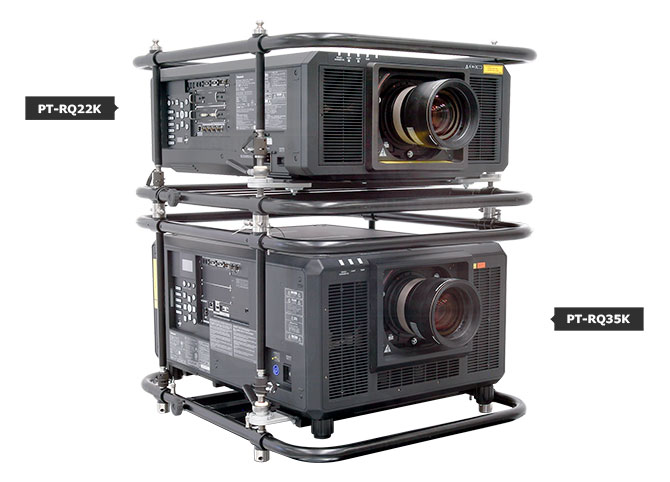

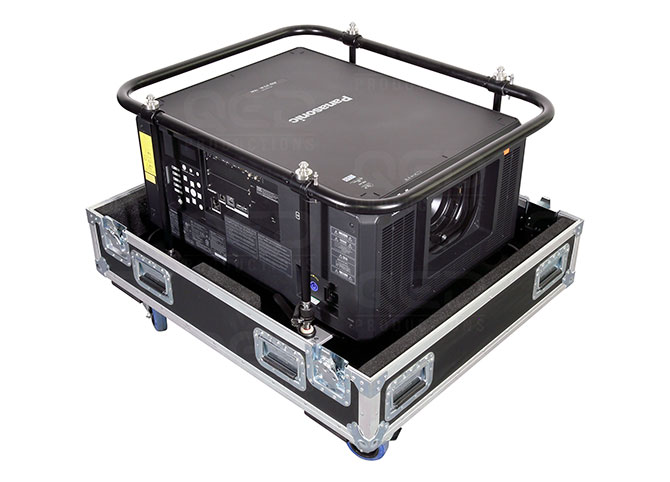

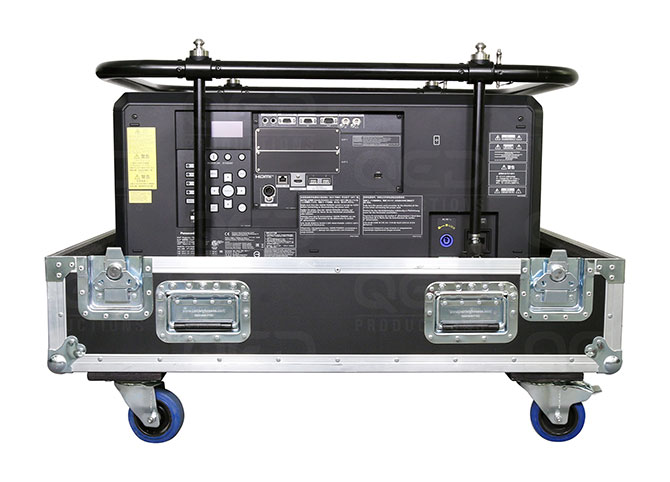

The RQ35K occupies the same footprint, fits in exactly the same-sized flight-case and can be stacked with the 20,000 lumen Panasonic RQ22 4K and RZ21K projectors. Like its predecessor the 31,000 lumen RZ31K, it can be handled by only two people however it is physically much smaller and quieter. With its native WUXGA panel the RQ35K accepts the same lenses and has the same zoom ratios as the RZ31K.
Laser 3-chip DLP, 32.000 lumens (centre), 4K (With Quad Pixel Drive On) |
Lamp-free laser projection with dust resistant liquid cooling system for 20000 hours maintenance free operation |
Smart Projector Control with NFC for mobile access to network configuration such as IP address setup |
Preactivated Upgrade Kits for Geo Pro Software |
Two blue and one red laser module expands colour-gamut reproduction |
Projector type | 3-Chip DLP™ projector |
DLP™ Chip | Panel Size | 24.4 mm (0.96 in) diagonal (16:10 aspect ratio) |
DLP™ Chip | Display Method | DLP™ chip x 3, DLP™ projection system |
DLP™ chip | Number of Pixels | 2,304,000 (1920 x 1200 pixels) x 3 |
Light Source | Laser diodes (Blue LD, Red LD) |
Light output | 30,500 lm*1/32,000 lm (Center)*2 |
Time until light output declines to 50 %*3 | 20,000 hours (Normal), 24,000 hours (Eco), 26,000 hours (Quiet) |
Resolution | 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON) |
Contrast Ratio*1 | 20,000:1 (Full On/Full Off, Dynamic Contrast [3]) |
Screen size [diagonal] | 1.78–25.4 m (70–1,000 in), 1.78–15.24 m (70–600 in) with ET-D75LE8/ET-D3LET80, 3.05–15.24 m (120–600 in) with ET-D75LE95 |
Center-to-corner zone ratio*1 | 90% |

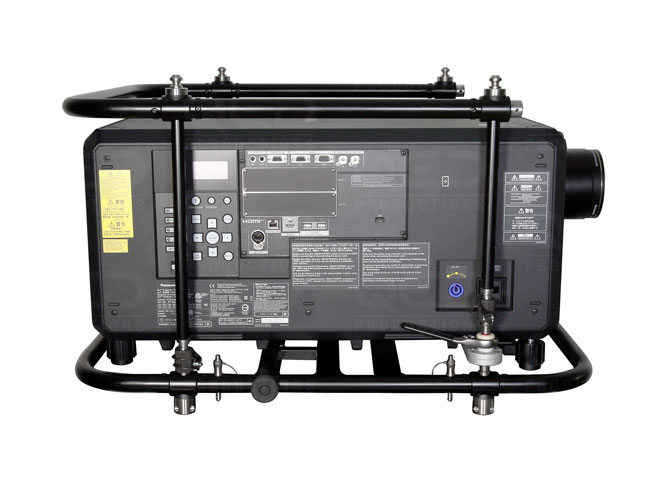

Terminals | HDMI In | HDMI x 1 (Deep Color, compatible with HDCP 2.2, 4K/60p signal input*5 ) |
Terminals | Multi Projector Sync In | BNC x 1 |
Terminals | Multi Projector Sync Out | BNC x 1 |
Terminals | Serial In | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
Terminals | Serial Out | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
Terminals | REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control |
Terminals | REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control |
Terminals | Remote 2 In | D-sub 9-pin (female) x 1 for external control (parallel) |
Terminals | DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX, compatible with Art-Net, PJLink™ (Class 2), Deep Color, HDCP 2.2, 4K/60p signal input*5 |
Terminals | LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
Terminals | USB | USB connector (Type A) x 1 for optional Wireless Module (AJ-WM50 Series)/USB Memory Stick |
Terminals | DC Out | USB Type A x 2 (for power supply, DC 5 V total of 2 A) |
Terminals | Expansion Slot | SLOT 1/SLOT 2 (total two terminals, vacant) for interface boards, SLOT NX compatible |
Power Supply | AC 200 V–240 V (Light output will decrease when using the projector with AC 100 V to AC 120 V) |
Power Consumption | 2,550 W (Standby: 14 W) |
Operation noise*1 | 49 dB (Normal), 46 dB (Quiet) |
Dimensions (W x H x D) | Approx. 598 x 353 x 780 mm (23 17/32" x 13 29/32" x 30 23/32" ) (not including protruding parts or flying frame) |
Operating Environment | Operating temperature: 0–45 °C (32–113 °F*7), operating humidity: 10–80 % (no condensation) |
*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *2 Average light-output value of all shipped products measured at center of screen in NORMAL Mode. *3 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, Normal Mode, Dynamic Contrast [3], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output decreases to 50 % will vary depending on environment. *4 Lens shift is not supported on the ET-D3LEW50. *5 4K signals are converted to WUXGA (1920 x 1200 pixels) only for the PT-RZ34K. *6 Average value. May differ depending on the actual unit. *7 When optional AJ-WM50 wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft).
