Overview

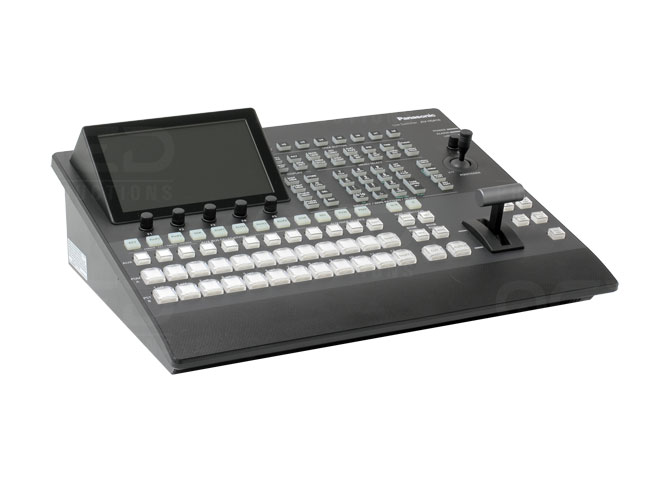

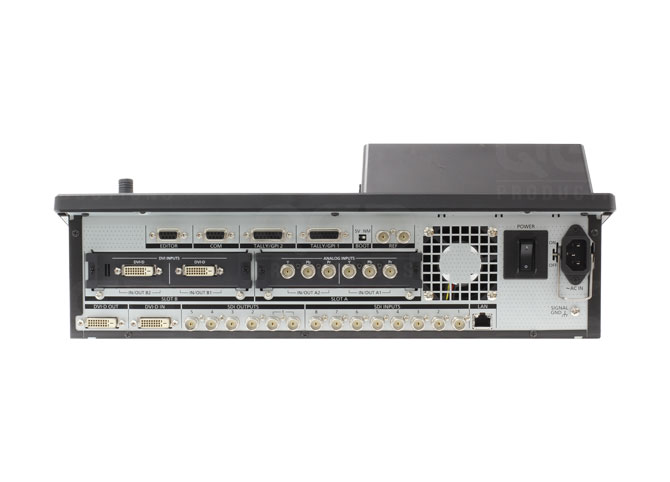

The AV-HS410 is compact and versatile with nine inputs standard (eight HD-SDI, one scaleable HD DVI-D), and is expandable using option boards to a maximum of 13 HD/SD switchable signal inputs. Five HD-SDI and one DVI-D outputs are also standard with option boards enabling expansion to a maximum of 10 outputs.
Four Aux busses are provided to enable versatile production workflow, with mix transitions available on AUX1. Dual PinP (with transition memories), one DSK, and an upstream keyer with 3D flying key and Primatte® Chroma key capabilities are also provided. Numerous high-quality 3D and 2D effects are available for transitions for both background and key. All input channels feature a built-in switchable frame synchronizer, while upconverters are available for four channels and 16-axis color correction for the eight standard HD-SD/SDI inputs. The HS410's system frequency is switchable among 60Hz, 50Hz, and 24Hz, enabling international operation and digital cinema style live switching.

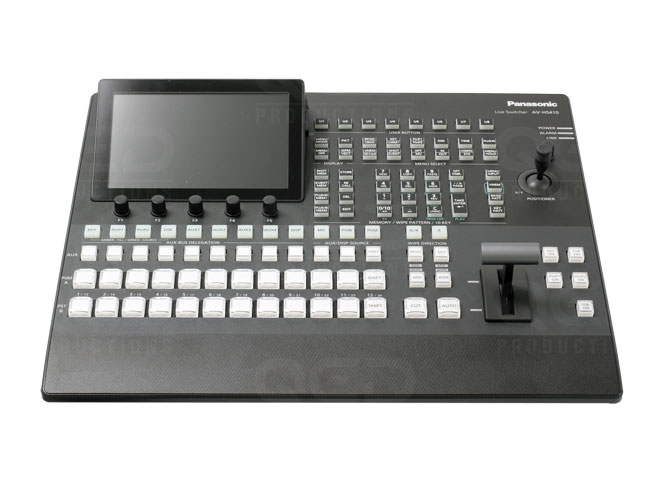

The HS410's user-friendly interface is distinguished by the 7" WVGA (800 x 480 pixels) color LCD monitor that, in addition to displaying settings and menus, can show input and output video, waveform monitor readings and even the Multiviewer display. MultiViewer configurations include assignable screen divisions into 4, 5, 6, 9, 10 or 16 sections and support the display of time, audio level meters and 4:3 markers. The switcher's simple panel layout features dedicated buttons for many common functions, such as PinP 1/2, as well as A bus and B bus rows with 12 crosspoint buttons (22 with shift function), allowing easy access to a variety of internal and external sources.
Advanced features include dual-channel video/still clip player/recorders, 100 event memories, Effect Preview (for offline viewing of programmed effects), timeline editing, and customizable Plug-in programs for external device control and many other applications. An SDK (Software Development Kit) is available from Panasonic to enable the creation of powerful custom Plug-in programs.
Four Aux busses are provided to enable versatile production workflow, with mix transitions available on AUX1. Dual PinP (with transition memories), one DSK, and an upstream keyer with 3D flying key and Primatte® Chroma key capabilities are also provided. Numerous high-quality 3D and 2D effects are available for transitions for both background and key. All input channels feature a built-in switchable frame synchronizer, while upconverters are available for four channels and 16-axis color correction for the eight standard HD-SD/SDI inputs. The HS410's system frequency is switchable among 60Hz, 50Hz, and 24Hz, enabling international operation and digital cinema style live switching.
The HS410's user-friendly interface is distinguished by the 7" WVGA (800 x 480 pixels) color LCD monitor that, in addition to displaying settings and menus, can show input and output video, waveform monitor readings and even the Multiviewer display. MultiViewer configurations include assignable screen divisions into 4, 5, 6, 9, 10 or 16 sections and support the display of time, audio level meters and 4:3 markers. The switcher's simple panel layout features dedicated buttons for many common functions, such as PinP 1/2, as well as A bus and B bus rows with 12 crosspoint buttons (22 with shift function), allowing easy access to a variety of internal and external sources.
Advanced features include dual-channel video/still clip player/recorders, 100 event memories, Effect Preview (for offline viewing of programmed effects), timeline editing, and customizable Plug-in programs for external device control and many other applications. An SDK (Software Development Kit) is available from Panasonic to enable the creation of powerful custom Plug-in programs.
