Lightware MX2-8x8-HDMI20-Audio-L

8x8 HDMI 2.0 full 4K matrix Switcher

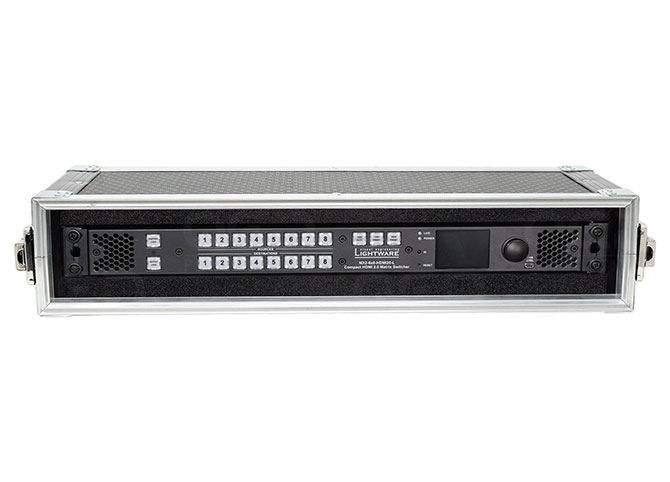

The MX2-8x8-HDMI20-Audio-L is an HDMI 2.0 compatible, standalone matrix switcher that supports uncompromised 4K UHD resolution at 60Hz 4:4:4.

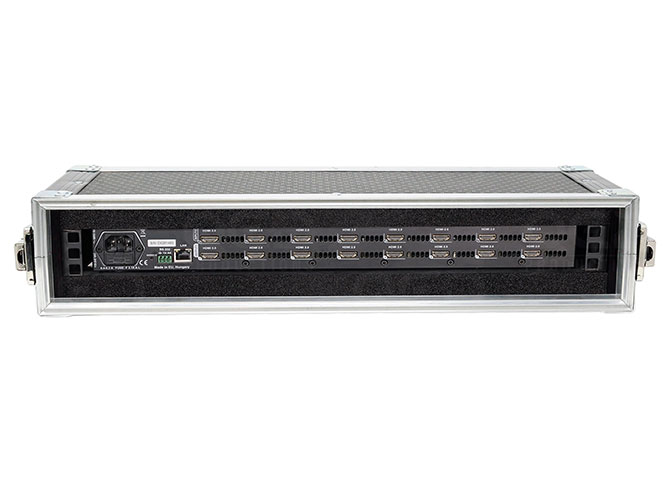

Thanks to its compact size and silent design, it is particularly suitable for offices and meeting rooms, for 4K live events, and for futureproof operation centers. It is also a perfect choice for home theater enthusiasts who demand the highest quality along with HDMI 2.0 and 4K@60Hz video signals. This standalone product has 8 HDMI 2.0 inputs and 8 HDMI 2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio. Each input port has an audio connector for embedding analog audio into the HDMI stream. The audio connectors next to the output ports can provide deembedded audio for amplifiers and audio systems; the output volume is adjustable.

The product has recently undergone external redesign resulting in a 100 mm longer chassis depth. There are also some changes in features and services since the original release of the device: input cable compensation is improved, allowing longer cable runs, while the power source inside the matrix is also more powerful. There is more robust reclocking applied to improve weaker 4K input signals.

The MX2-8x8-HDMI20-Audio-L matrix switcher supports both HDR and Dolby Vision in the HDMI signal at 10 or 12 bit speeds respectively, within its frame bandwidth of 18 Gbps.
