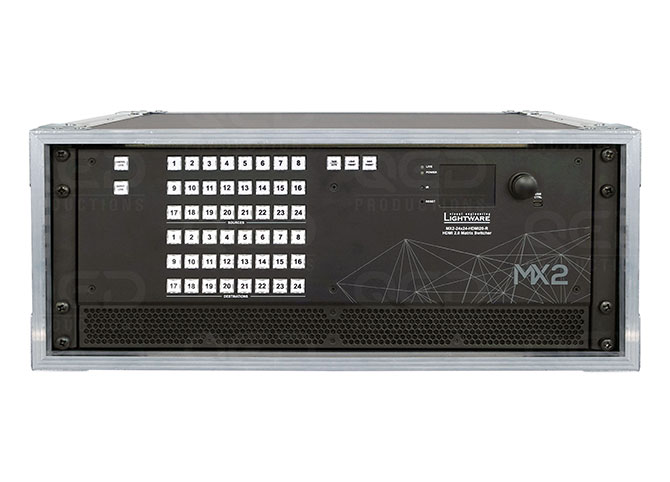

Lightware MX2-24x24-HDMI20

24x24 HDMI 2.0 full 4K matrix switcher


MX2-24x24-HDMI20 is a member of the HDMI 2.0 standalone matrix switcher family that supports uncompromised 4K UHD resolution at 60Hz 4:4:4.

It has a huge number of input and output ports resulting in outstanding port density that makes it particularly suitable for rental and fix-install applications. It is a perfect choice for installations where a huge number of HDMI 2.0 compliant input and output ports are required.

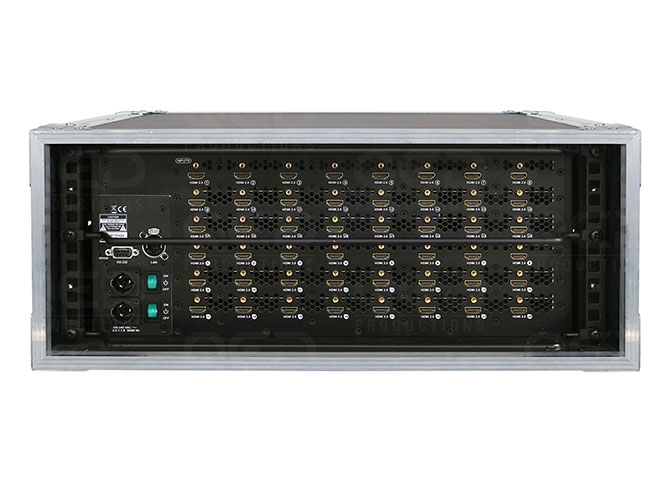

This standalone product has 24 HDMI2.0 inputs and 24 HDMI2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio.


HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
HDR and Dolby Vision support
Front to back cooling airflow
Built-in universal power supply
HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
HDCP enable/disable function on input
Vista Spyder and Barco Encore compatibility
Multiple TCP/IP connections
Advanced EDID Management
Save and reload full crosspoint configurations as preset
Front panel LCD menu and buttons for crosspoint control
Intuitive control software for device configuration
Device control via Ethernet (TCP/IP), RS-232 and USB
CEC support (command injection)
Fully non-blocking switching architecture
Built-in website for device configuration
Pixel Accurate Reclocking
No video compression
Redundant power supplies available
Firmware upgrade through Ethernet
Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
No signal latency, zero frame delay

Technical Specification

To view the full technical specification please click here.
