Overview

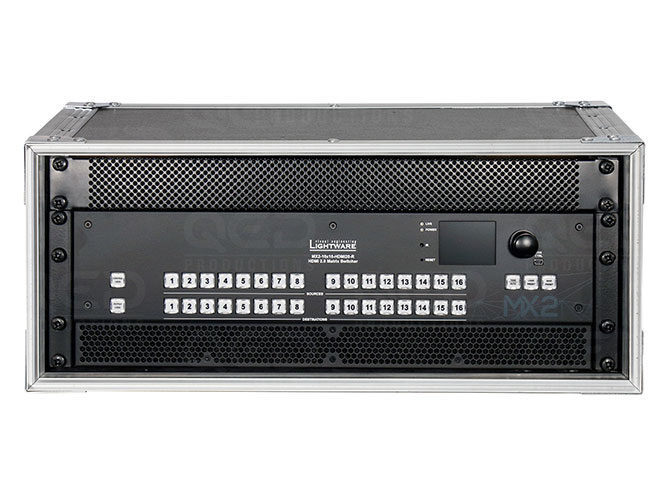

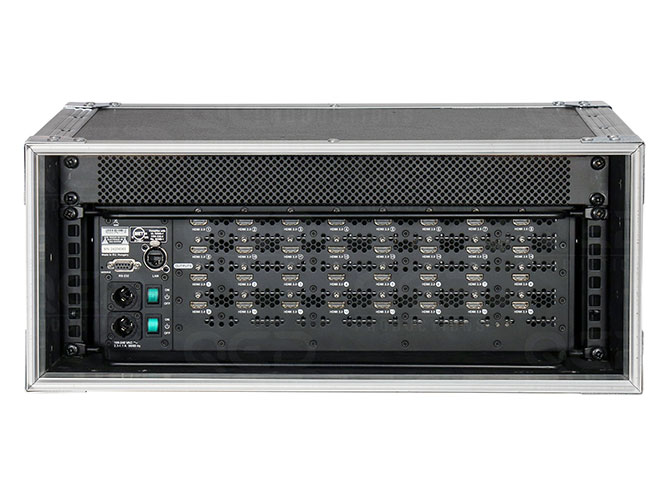

The MX2-16x16-HDMI20 is a member of the HDMI 2.0 standalone matrix switcher family supporting uncompromised 4K UHD resolution at 60Hz 4:4:4. It has an outstanding port density that makes it particularly suitable for rental and fix install applications, as well as for future-proof operation centers. It is a perfect choice for installations where at most 16 HDMI 2.0 compliant input and output ports are required. This standalone product has 16 HDMI 2.0 inputs and 16 HDMI 2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio.
Features
| HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities |
| Supports HDMI 4K signal formats 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps |
| HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant |
| HDR and Low Latency Dolby Vision support |
| High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD |
