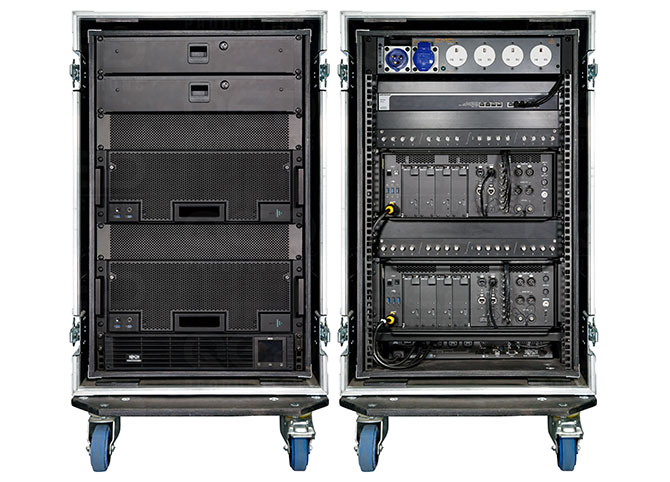

disguise vx4 rack

2 x disguise vx 4, 10GB network switch, UPS

Overview

The vx4 has been engineered to play back video at higher quality, smoothness and resolution than ever before. Optimized for playing up to four times uncompressed 4K60 using its high-performance NVME RAID drive array; as well as the capability of playing lossless 10-bit video. Additionally, it can capture either 16 3G-SDI sources, or four 4K sources (2160p60).

Features

Video Output
1x Displayport 1.2 (GUI), 4x VFC Output Slots, Ships standard with HDMI 2.0 VFC cards (4096 x 2160 max)
Video Input
16x 3G-SDI
Video Sync
1x BNC Genlock
Video Playback
.mov (anim, pjpg, DXV*, Hap, Hap Q)
Still image formats
.png, .jpeg, .bmp, .tiff, .tga
Audio file formats
.mp3, .wav
