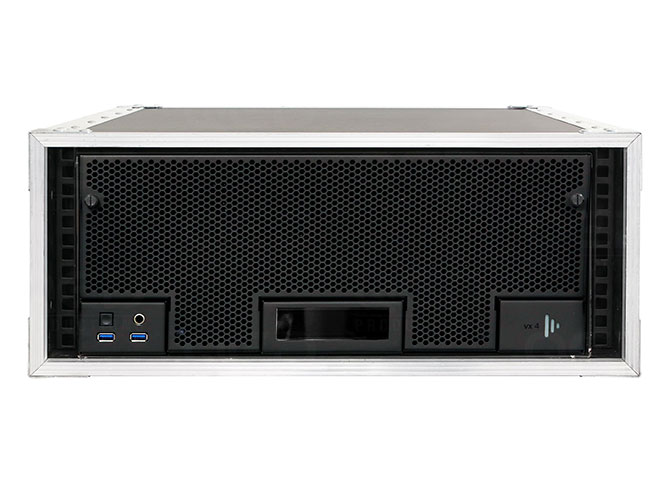

disguise vx 4 media server


The vx 4 has been engineered to play back video at higher quality, smoothness and resolution than ever before. Optimized for playing up to four times uncompressed 4K60 using its high-performance NVME RAID drive array; as well as the capability of playing lossless 10-bit video. Additionally, it can capture either 16 3G-SDI sources, or four 4K sources (2160p60).

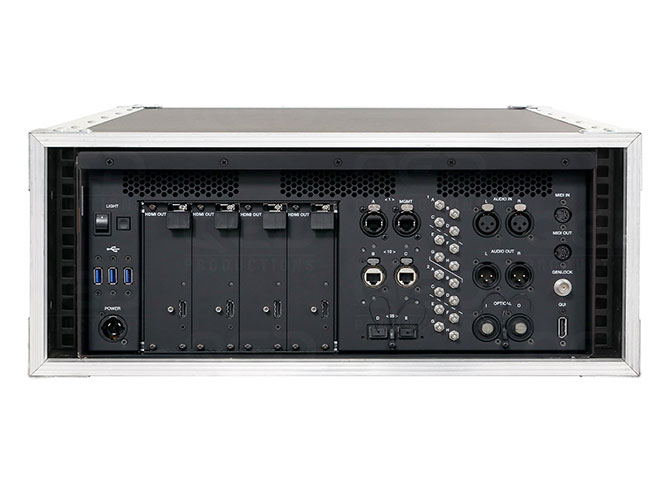

Video Output
1x Displayport 1.2 (GUI), 4x VFC Output Slots, Ships standard with HDMI 2.0 VFC cards (4096 x 2160 max)
Video Input
16x 3G-SDI
Video Sync
1x BNC Genlock
Video Playback
.mov (anim, pjpg, DXV*, Hap, Hap Q)
Still image formats
.png, .jpeg, .bmp, .tiff, .tga
Audio file formats
.mp3, .wav
