Disguise gx3


The gx3 is disguise's most versatile and flexible single-box solution to fit any production across any application, be it live or xR, allowing you to unlock new potential in Notch generative content such as facial tracking, simulation and buffer effects or even AI background removal for IMAG thanks to the NVIDIA A6000 advanced processing capabilities.

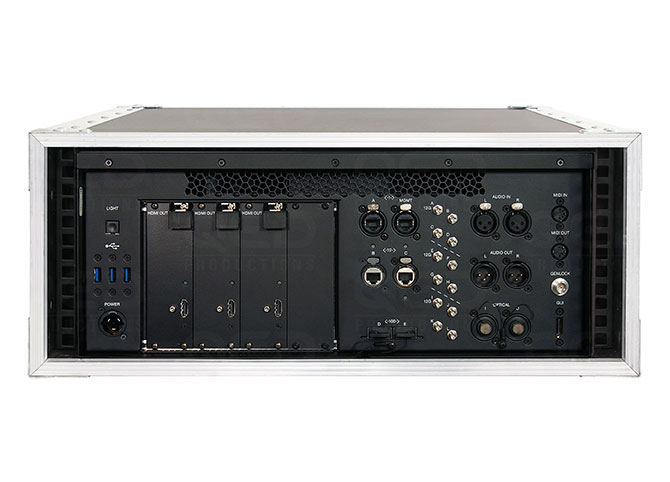

The gx3 includes two 100GbE network ports and 12G video capture as standard, keeping in line with the future requirement of live shows. In addition, the integration of a new PCIe 4.0 motherboard, CPU, and storage guarantees peak performance when dealing with complex video files.

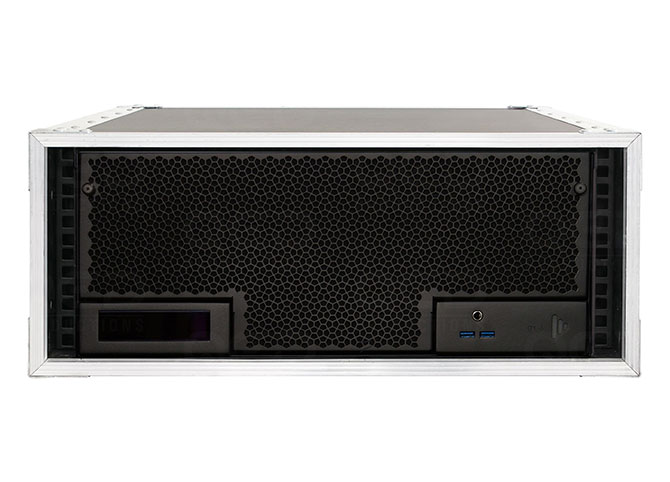

It comes in a ruggedised 4U chassis with hi-res OLED front panel displaying detailed system information and a redesigned fan with a maximum decibel rating of 56dB.


Video Playback
With next-generation video playback capable of pushing over 53,000 Notchmarks (the highest of any media server at the time of launch), the gx 3 provides a large step up in terms of capabilities to take Notch generative graphics to the next level.
Capture Capability
The gx 3 can capture either 3x 12G 4K inputs or 12x 3G HD inputs.
3.84TB removable NVMe drive fitted freeing creatives to work with higher quality codecs, including support for NotchLC, at a 6.2Gb/s read speed.
VFC Technology
The gx 3 has three HDMI 2.0 VFC output cards by default.

Technical Specification

To view the full technical specification please click here.
Back to equipment list
