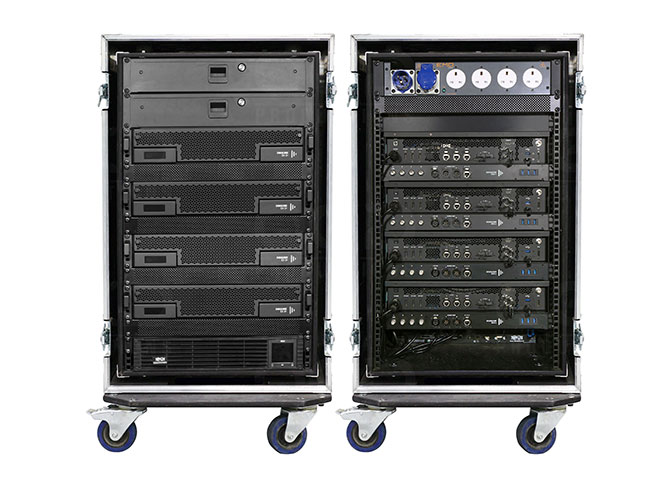

DISGUISE EX 3+ rack

4 x DISGUISE EX 3+, UPS

Overview

The DISGUISE EX 3+ media server features three 4K video outputs and up to 2x 4K DCI or 8x Full-HD video capture inputs. Ideally suited for mid-scale installations and shows delivering impactful content via LED walls or projectors at scale, also requiring a physical video input to enable 4K cameras to be used for audience interaction.

Features

Video output
1x DisplayPort 1.4 (GUI) & 3x DisplayPort 1.4 (Outputs)
Video input
Up to 2x 4K DCI inputs or 8x Full-HD inputs via: 1x 12G or 4x 3G SDI (HD-BNC connectors) & 1x HDMI 2.0
High-speed network
2x 100Gb/sec (QSFP28)
CPU
AMD EPYC 2.45Ghz
GPU
NVIDIA RTX 4000 Ada
Motherboard
PCIe 5.0
Storage
3.84TB Removable NVMe SSD

Technical Specification

To view the full technical specification please click here.
