Overview
The DISGUISE EX 3+ media server features three 4K video outputs and up to 2x 4K DCI or 8x Full-HD video capture inputs. Ideally suited for mid-scale installations and shows delivering impactful content via LED walls or projectors at scale, also requiring a physical video input to enable 4K cameras to be used for audience interaction.
Features
|

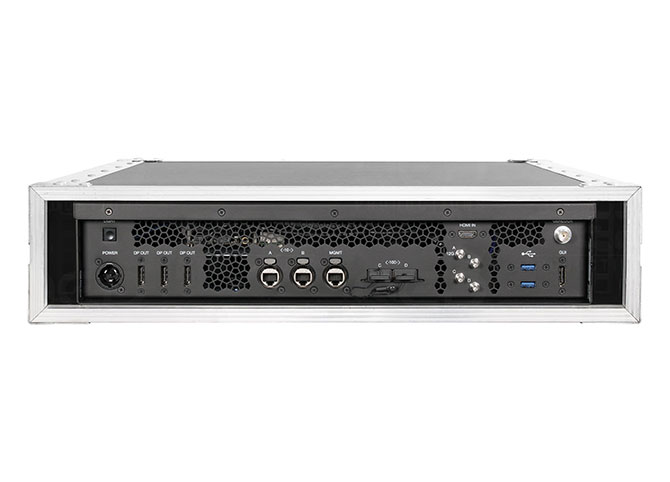

Video output 1x DisplayPort 1.4 (GUI) & 3x DisplayPort 1.4 (Outputs) |
|
Video input Up to 2x 4K DCI inputs or 8x Full-HD inputs via: 1x 12G or 4x 3G SDI (HD-BNC connectors) & 1x HDMI 2.0 |
|
High-speed network 2x 100Gb/sec (QSFP28) |
|
CPU AMD EPYC 2.45Ghz |
|
GPU NVIDIA RTX 4000 Ada |
|
Motherboard PCIe 5.0 |
|
Storage 3.84TB Removable NVMe SSD |
Technical Specification
To view the full technical specification please click here.
