The Christie HD12K offers high resolution, crisp images from 10-bit processing combined with an HD platform – the next level of unparalleled presentation power. The first-ever native HD resolution 3-chip DLP® 12,000 ANSI lumen digital projector utilizes Xenon illumination – the pinnacle of image colour accuracy and adjustability in easy to use, flexible packages.
The Christie HD12K 1920 x 1080 native resolution and a variable contrast ratio of 1500-2000:1 for crisp, detailed images. Next generation DLP® technology, high-quality optics and proven 10-bit image processing deliver exceptional image quality. The Christie HD12K features high-quality lenses specifically designed to increase image sharpness and provide manual contrast adjustment for impeccable control over your images. This model also features standard built-in edge-blending, two HD input channels that will also allow 4:4:4 signals, digital dark level adjustment, ILS™ on zoom and focus, and DMX 512 communication capabilities.
The Christie HD12K 1920 x 1080 native resolution and a variable contrast ratio of 1500-2000:1 for crisp, detailed images. Next generation DLP® technology, high-quality optics and proven 10-bit image processing deliver exceptional image quality. The Christie HD12K features high-quality lenses specifically designed to increase image sharpness and provide manual contrast adjustment for impeccable control over your images. This model also features standard built-in edge-blending, two HD input channels that will also allow 4:4:4 signals, digital dark level adjustment, ILS™ on zoom and focus, and DMX 512 communication capabilities.
True HD native resolution (1920 x 1080) |
12,000 ANSI lumens |
1600-2000:1 contrast ratio enabling highly enhanced image detail, with blacker blacks and whiter whites |

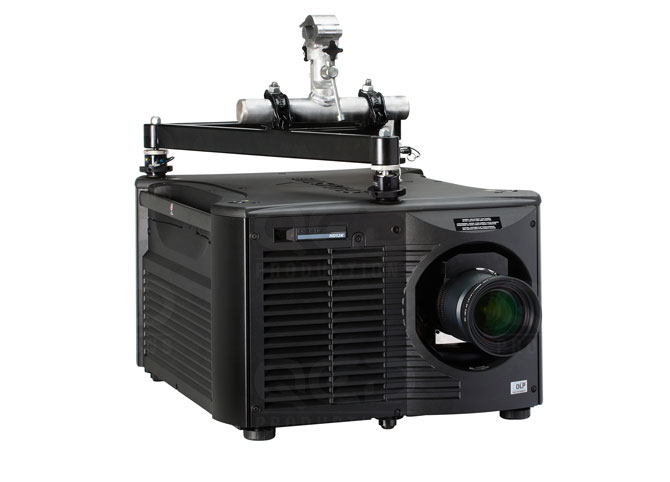

Built-in stacking and rigging |
3.0kW Xenon pre-aligned lamp module |
Built-in stacking and rigging |
Xenon Bubble lamp system provides repeatability of photo-realistic colors and ability to accurately color-match images |
2 High Definition input channels that allow 4:4:4 HD signals |
DMX 512 communication capabilities |
Image |
12,000 ANSI lumens (+/- 10%) 90% brightness uniformity across the screen |
Contrast | 1600-2000:1 full field |
Display Technology and Resolution |
3-chip 0.95" DLP® True HD 1920 x 1080 resolution |
Input Signal Compatibility |
VGA through to QXGA (2048 x 1536) Supports standard HDTV formats up to 1080p Multi-standard video decoder Horizontal and vertical scaling, all inputs |
Scan Rates |
Horizontal - 15 kHz to 120 kHz Vertical - 23.97 Hz to 150 Hz |

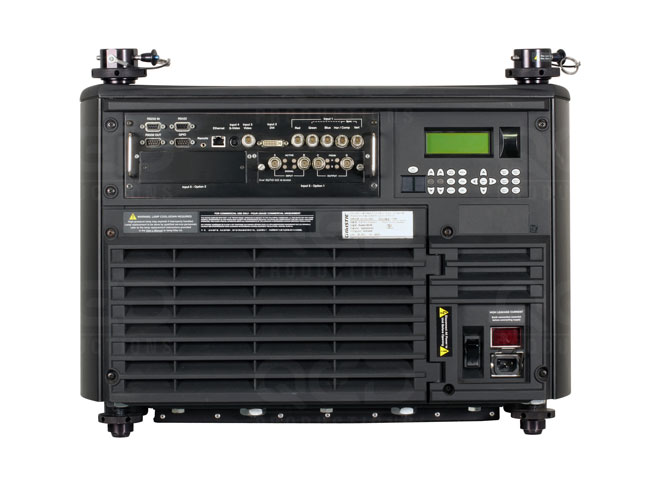

Inputs, Control and Networking |
RGBHV/YPbPr via 5 BNC DVI-I - digital/analog RGB/YPbPr (HDCP) One composite video, one S-Video Two option slots for analog/digital modules 3 RS-232 ports and 1 RS-422 port On-board ChristieNET™ connectivity (RJ45) Built-in backlit keypad and IR remote control |
Graphical User Interface |
Auto set-up, power-up feature Menus in five languages On-screen help 50 channel memories Optional image warping Built-in edge-blending Comprehensive Color Adjustment (CCA™) |
Lens Mount |
Motorized horizontal and vertical offset Tool-free lens insertion system Tilt adjustment |
Lamp |
2.0kW Xenon Bubble lamp 1000 hours (typical) lifetime User-replaceable bulb |
Light Output Control (LITELOC™) |
"Auto Brightness" (Intensity), "Lamp Conserve" (Power), "Max Brightness" modes Built-in light shutter |
Power Requirements |
200 VAC to 240 VAC +/- 10% @ 50/60 Hz Power consumption: 3000W maximum Thermal dissipation: 10,236 BTU/hr Operating current: 12A @ 200V |
Dimensions |
Weight: 61 kg (excludes lens, feet, stacking points) Flightcase weight: 51 kg Shipping weight: 112 kg (in flight case, excludes lens, feet, stacking points) Size: 24.5" W x 32.1" L x 15.1" H (631.4mm W x 814.8mm L x 384mm H) (excludes lens, feet, stacking points) Flightcase size: 29.3" W x 39.6" L x 28.7" H (745mm W x 1006mm L x 730mm H) |
Operating Environment |
Temp: 40 to 95° F (5 to 35° C Humidity: 20 - 80% non-condensing |
HD Lens Options |
0.67:1 HD Fixed Lens 1.1:1 HD Long Focal Lens 1.16-1.49 HD Zoom Lens 1.4-1.8:1 HD Zoom Lens 1.8-2.6:1 HD Zoom Lens 2.6-4.1:1 HD Zoom Lens 4.1-6.9:1 HD Zoom Lens 6.9-10.4:1 HD Zoom Lens |
