Overview

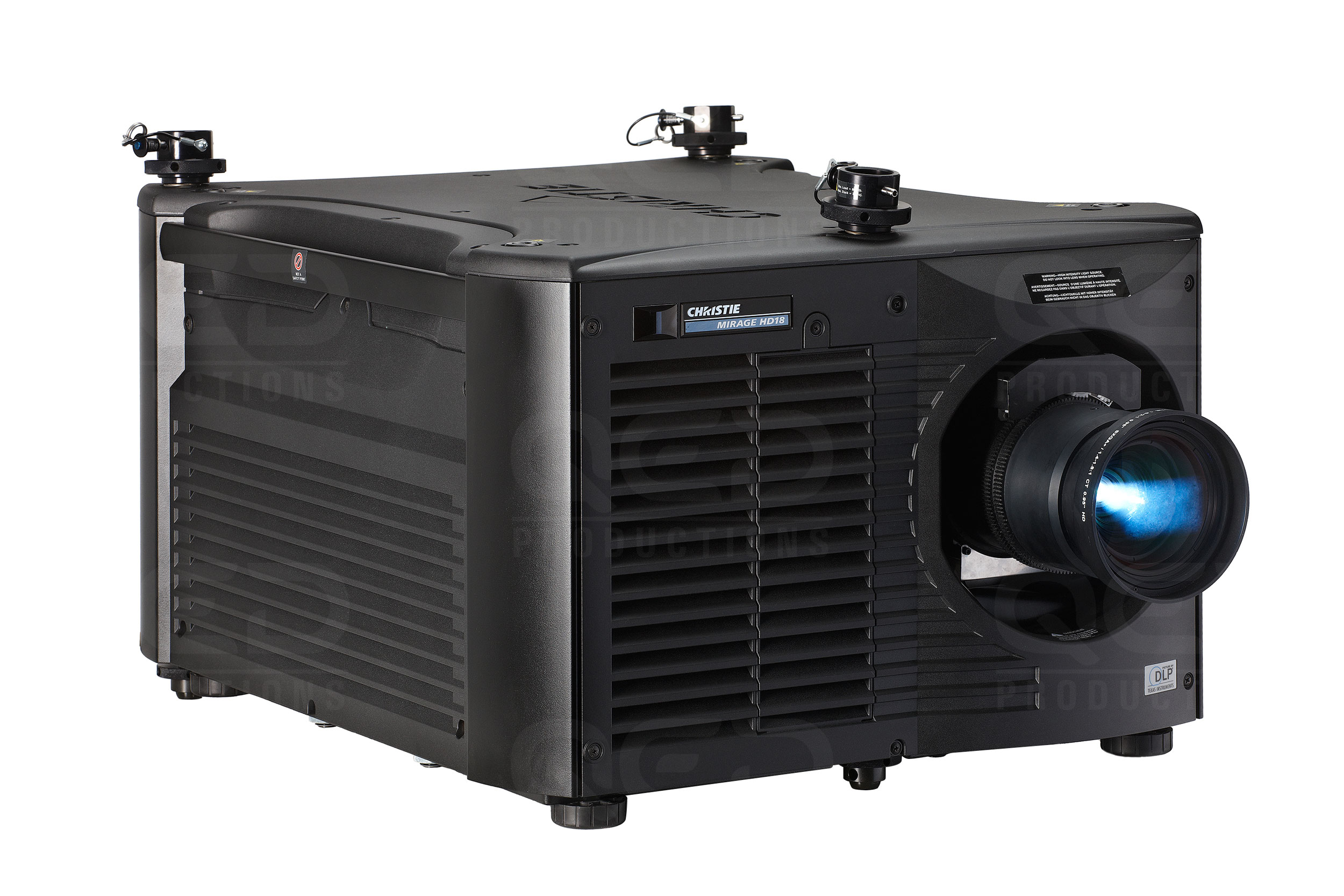

The Christie Mirage HD18 DLP projector sets a new benchmark in stereographic projection as the first and only full 1920 x 1080 HD resolution 3D active stereo solution – utilized in a single projector or multi-projector array. The Christie Mirage HD18 enables a new level of compatibility with computers and infrastructure that supports HD active stereo, up to 120Hz output due to unique image processing technology from up to 60Hz input, without requiring super bandwidth DVI or Analog infrastructure.
With a wider field of view and active stereo from a single projector, the Mirage HD18 is simple to set up and easy to use in large auditoriums for increased brightness and more pixels on the wall. Part of the Christie Mirage HD Series, the Christie Mirage HD18 is the highest brightness HD stereoscopic projector available with 18,000 ANSI lumens, the highest contrast, excellent colour and brightness uniformity control capability.
With a wider field of view and active stereo from a single projector, the Mirage HD18 is simple to set up and easy to use in large auditoriums for increased brightness and more pixels on the wall. Part of the Christie Mirage HD Series, the Christie Mirage HD18 is the highest brightness HD stereoscopic projector available with 18,000 ANSI lumens, the highest contrast, excellent colour and brightness uniformity control capability.
Features
| 18,000 ANSI lumens |
| Full 1920 x 1080 HD resolution |
| Variable contrast up to 2000:1 enabling highly enhanced image detail, with blacker blacks and whiter whites |
| Up to 120Hz output due to unique image processing technology from up to 60Hz input,over standard single link DVI-D or Analog |
| 3.0kW Xenon pre-aligned lamp module |
| 10-bit image processing providing broader color spectrum and wider input signal compatibility (HD Mirage Series) |
| Broad source compatibility – both stereo and non-stereo |
| ChristieTwist™ internal enhanced Image Warping and Edge-Blending module option |
| Horizontal, vertical lens shift |
| Built-in blending |
| Easy filter and lamp access for simple maintenance |
Technical Specification
| Image |
18,000 ANSI lumens (+/- 10%) 90% brightness uniformity 450:1 ANSI, 1600-2000:1 full field (adjustable internal aperture) |
| Display Technology and Resolution |
3-chip 0.95" Darkchip3™ DLP® True HD 1920 x 1080 resolution Up to 120Hz using unique image processing technology |
| Input Signal Compatibility |
Up to 60Hz input for both stereo and mono content VGA to QXGA (2048 x 1536) All current HDTV/DTV formats Multi-standard video decoder Horizontal and vertical scaling, all inputs |
| Inputs, Control & Networking |

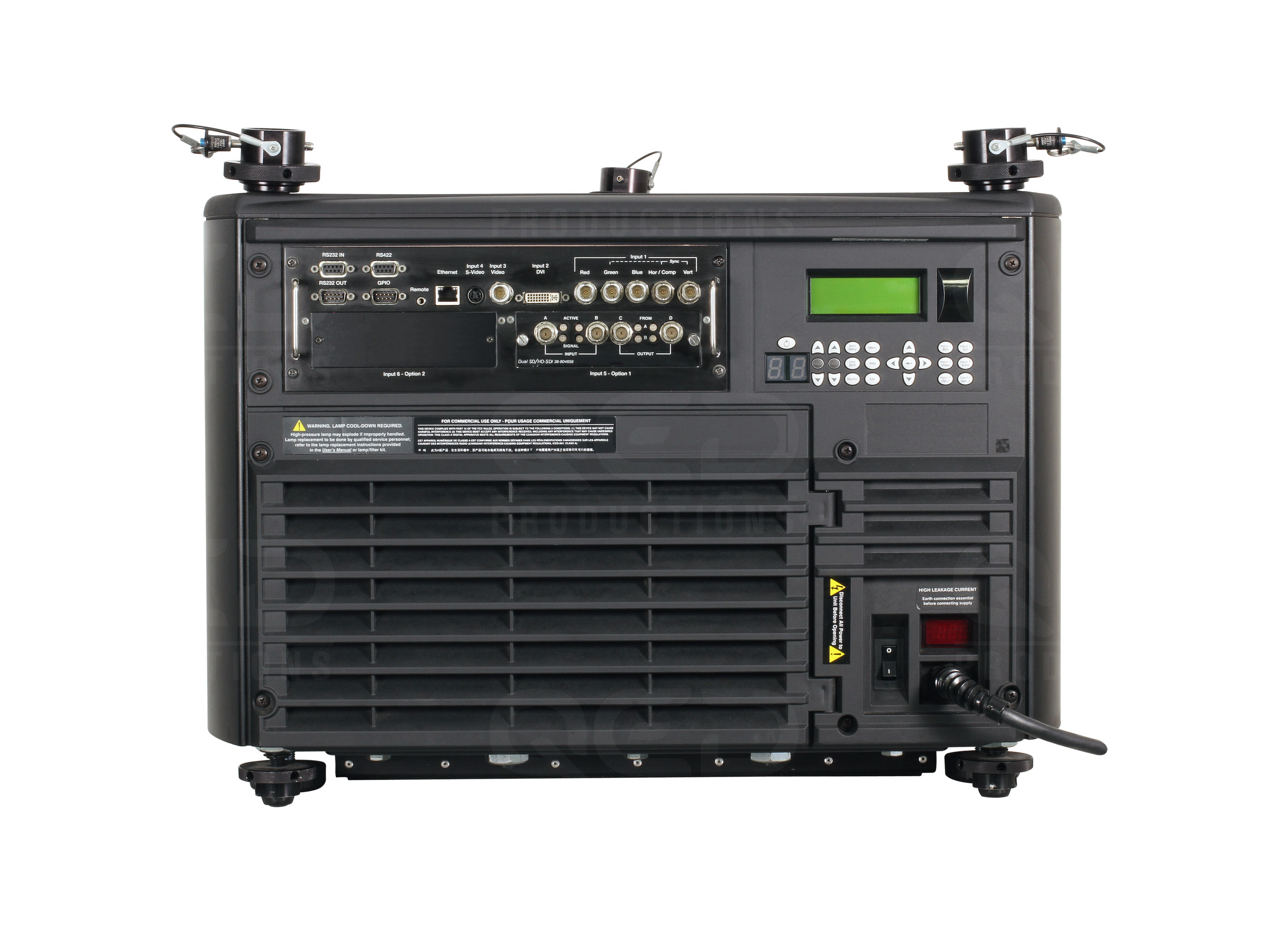

RGBHV/YPbPr: 5 BNC DVI-I: digital/analog RGB/YPbPr (HDCP) One composite video, one S-video Two option slots for analog/digital modules 3 RS-232 ports and 1 RS-422 port On-board ChristieNET™ connectivity (RJ45) Built-in backlit keypad and IR remote control |
| Advanced Feature Set |
Built-in edge-blending Brightness Uniformity Control - adjusts center-to-edge brightness uniformity across the image – up to 100% uniformity Dark Interval Adjustment (DIA™) - a mechanism to tune the projector's interaction with the LCD shutter glasses to achieve the optimum image with a minimum of color artifacts or cross-talk between left and right eye images Minimum Delay Feature - provides a less than one frame delay in image processing between input and display Stereo Sync Harness - provide projector control of the phase of the output through the menu Auto set-up, power-up feature Menus in five languages On-screen help 50 channel memories |
| Lens Mount |
Motorized horizontal and vertical offset Tool-less lens insertion system Tilt adjustment Built-in light shutter Internal electro-mechanical iris |
| Lamp |
Auto set-up, power-up feature Menus in five languages On-screen help 50 channel memories Built-in edge-blending Comprehensive Color Adjustment (CCA™) Optional ChristieTWIST™ image warping |
| Lens Mount |
Motorized horizontal and vertical offset Tool-free lens insertion system Tilt adjustment Built-in light shutter |
| Lamp |
3.0kW Xenon pre-aligned lamp module 750 hours (typical) lifetime |
| Light Output Control (LITELOC™) | Provides constant brightness tracking and monitors lamp output. It also automatically adjusts the power to ensure constant, uniform brightness across the image – on a multiple-projector screen or multiple-screen display. |
| Comprehensive Color Adjustment | Provides the ability to individually adjust actual RGB channels for even color matching within individual projectors. This produces true color representation across multi-screen applications for a completely blended image. |
| Power Requirements |
200 VAC to 240 VAC (+/- 10%) @ 50/60 Hz Power consumption: 4800W maximum Thermal dissipation: 13,320 BTU/hr Operating current: 24A @ 200V |
| Dimensions (excluding lens) |
Weight: 160 lb (72.6 kg) Shipping weight: 230 lb (104.3 kg) Size: 24.5"W x 32.1" L x 15.1" H (631.4mm W x 814.8mm L x 384mm H) |
| Operating Environment |
Temp: 40-95° F (5-35° C) Humidity: 20-80% non-condensing |
