Overview

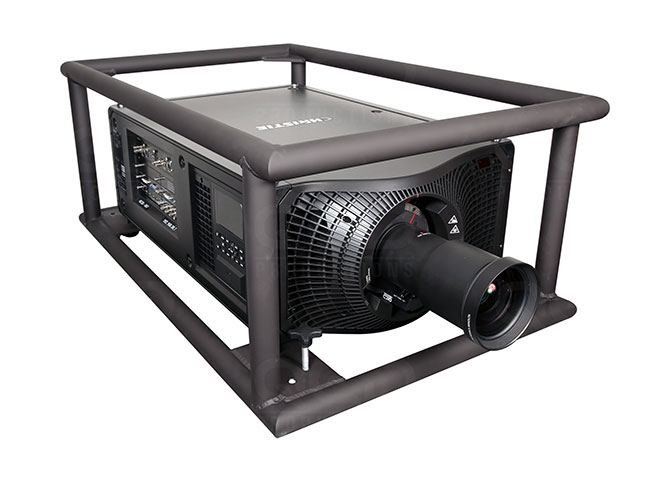

With its compact form factor, light weight, powerful processing and host of user-friendly features such as built-in warping and blending, near field communication monitoring and an at-a-glance preview screen, the Christie® Mirage 304K represents a new paradigm to realise the brightest, most immersive 3D visualisations imaginable.
Based-on the industry's only 4K, true 120Hz capable projection system and featuring Christie's proprietary TruLife® electronics, the Christie Mirage 304K produces incredible image and colour reproduction for ultra-bright immersive 3D environments. Engineered for omnidirectional deployment, the Mirage 304K can be mounted and operated in any orientation for increased design and installation flexibility.
Features
| Christie TruLife processing at true 120Hz ensures stunning color reproduction and image quality |
| Mercury lamps for more than double the life of Xenon illumination |
| Omnidirectional deployment capabilities and a weight of only 155lbs. for increased design and installation flexibility |
| Built-in warp and blend functionality |
| Preview screen for at-a-glance status updates |
| Integrated near field communication (NFC) for lamp information tracking |
Technical Specification
| Brightness | 30,000 lumens (center), 29,000 ANSI lumens (typical) |
| Contrast | 2000:1 |
| Display | 3DLP 1.38" DMD |
| Resolution | 4K (4096 x 2160) |
| Illumination | 6x 450W NSH |
| Lamp Life | 1500 hours to 70% initial brightness |
| Inputs |
4 x Twin DisplayPort input card HDBaseT |
| Pixel clock | 1.2Gpx/s - TruLife Electronics |
| Networking |
Keypad RS232 in Ethernet (10/100) RJ45 |
| Lens mount |
Tool-free lens insertion system Boresight adjustable Motorized horizontal and vertical lens offset Motorized zoom and focus adjustment |
| Power |
200-240V 19A |
| Dimensions (L x W x H) |
37.75 x 23.5 x 12" 959 x 597 x 305 mm |
| Weight | 155lbs |
| Operating environment |
Temperature: 5 to 40°C (41 to 104°F) Humidity: 10 to 80%, non-condensing |
Related Equipment
Christie

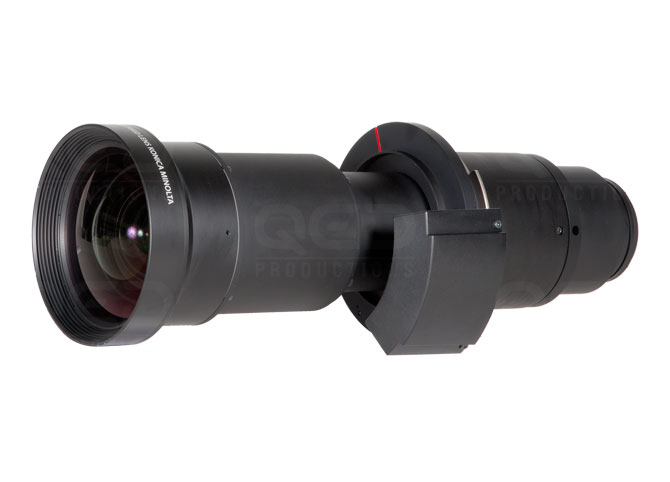

0.72:1 fixed focus lensMore information
Christie

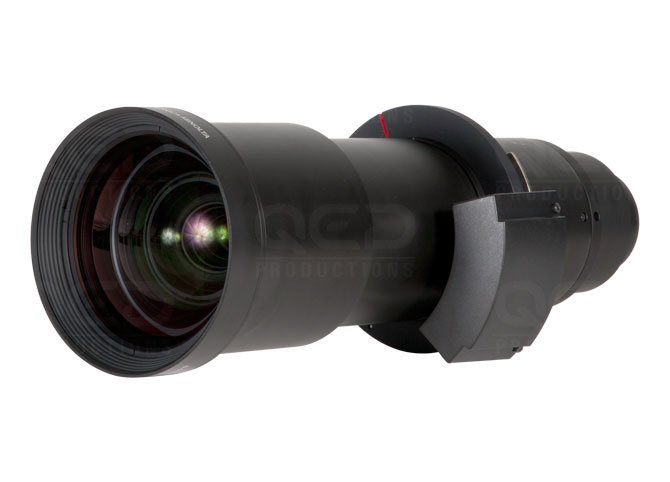

0.9:1 fixed focus lensMore information
Christie

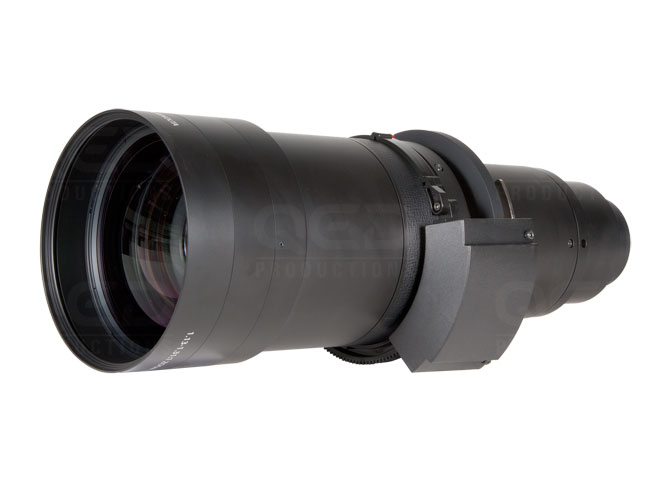

1.13-1.31:1 zoom lensMore information
Christie

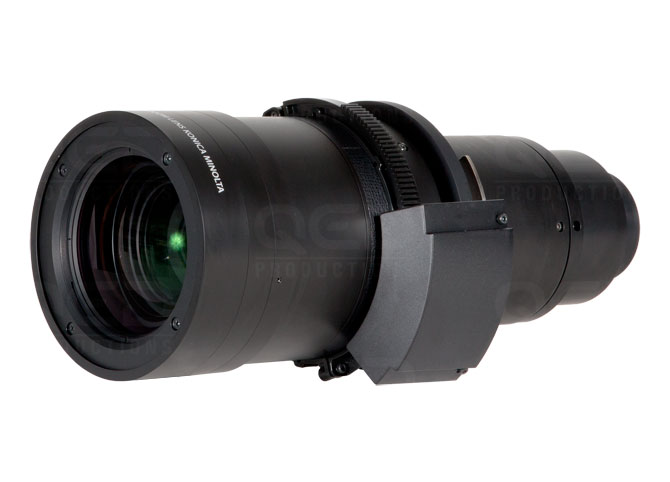

1.31-1.63:1 zoom lensMore information
Christie

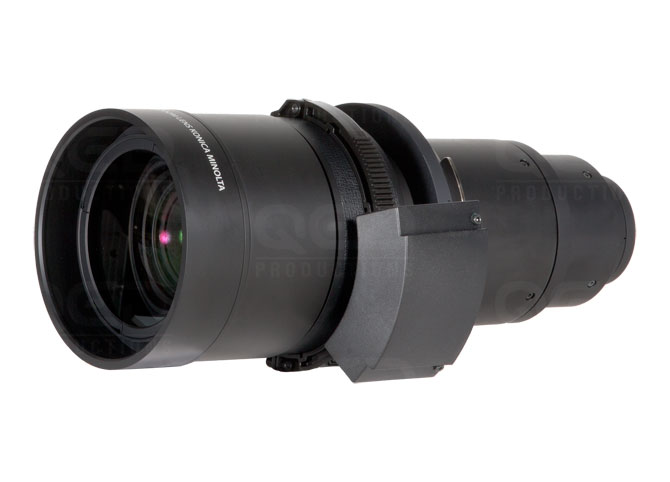

1.63-2.17:1 zoom lensMore information
Christie

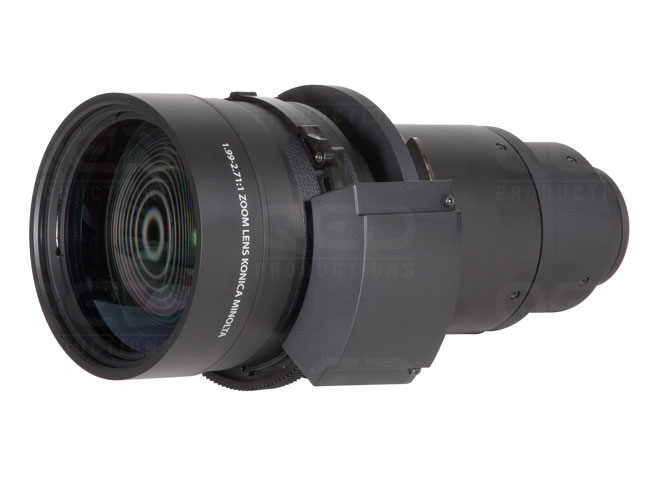

1.99-2.71:1 zoom lensMore information
Christie

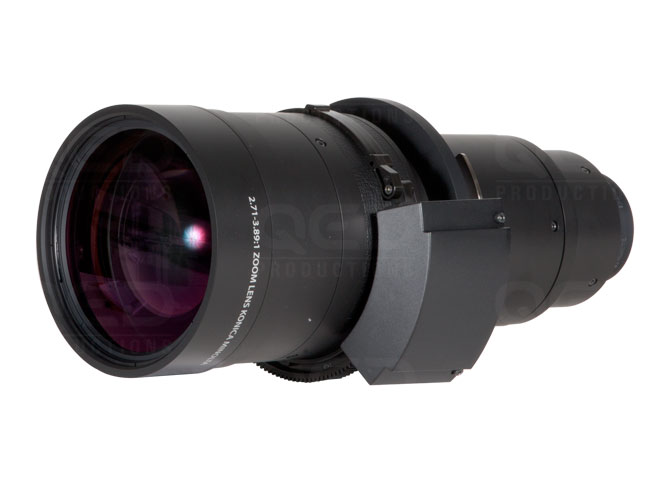

2.71-3.89:1 zoom lensMore information
Christie

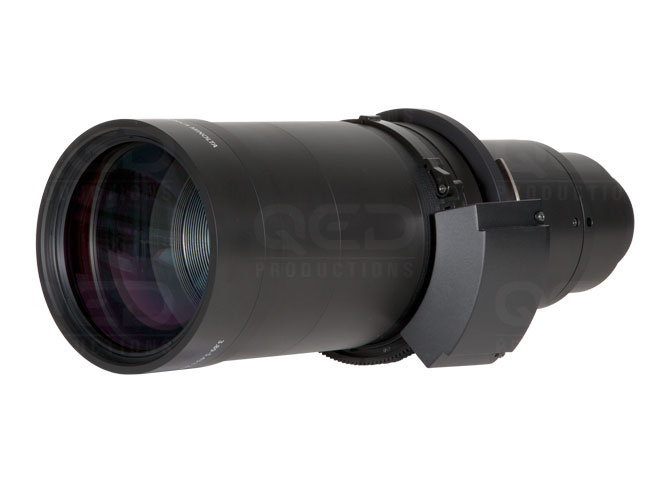

3.89-5.43:1 zoom lensMore information
Christie

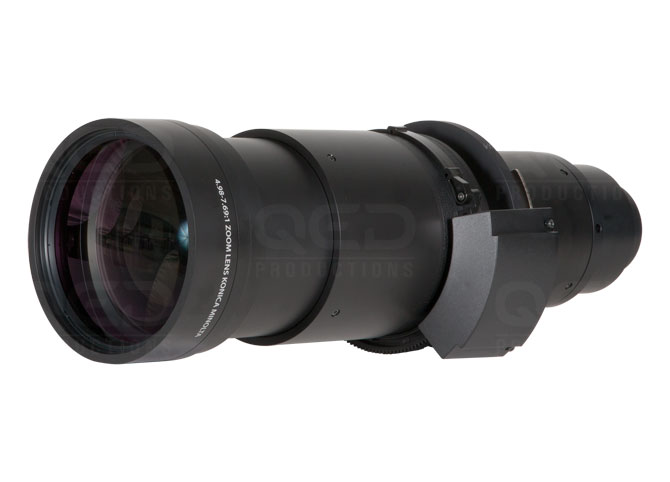

4.98-7.69:1 zoom lensMore information
