AV Stumpfl 16' x 9' Vario 64 screen

4880mm x 2740mm - Front & Rear Surfaces

Features

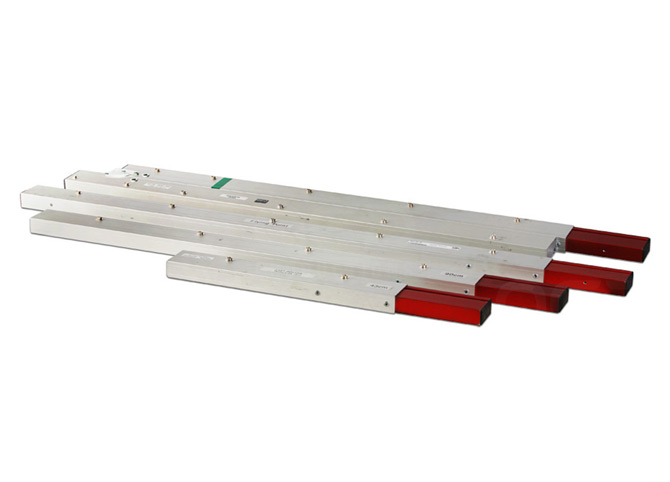

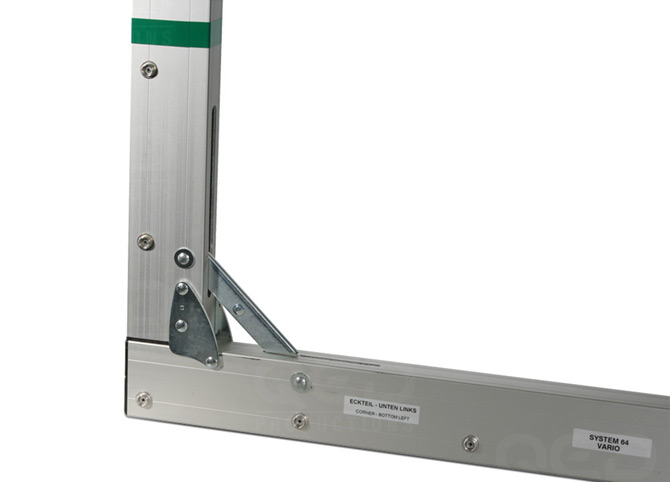

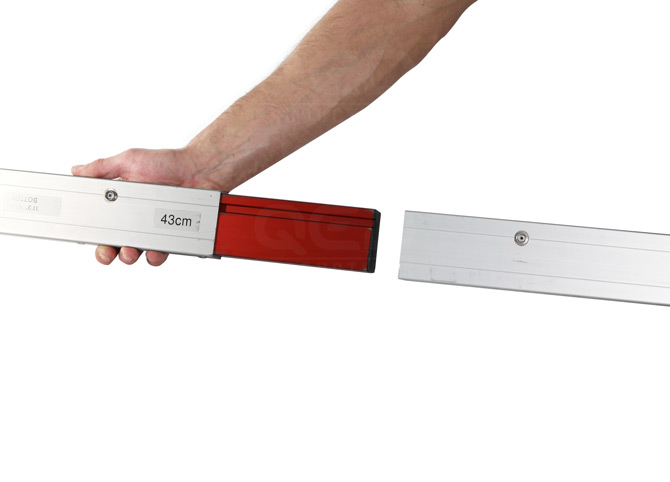

4 x corner sections, 8 x frame bars
Front or rear surface

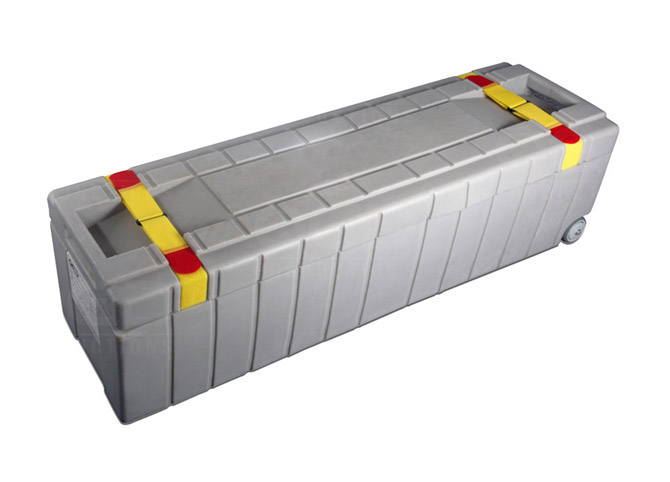

Transportation case

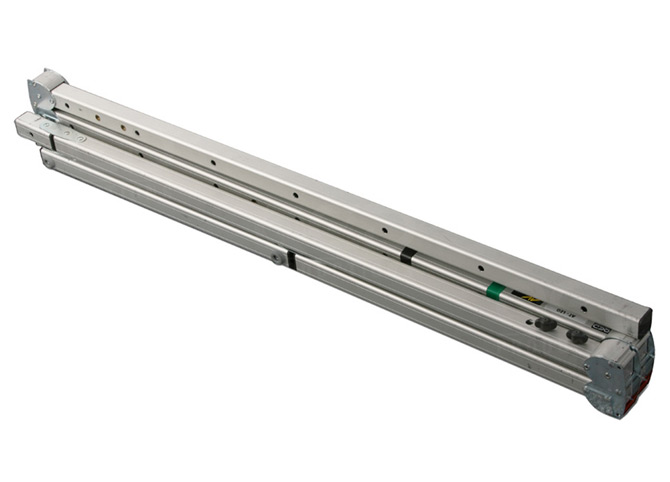

2 x AT32/64 14'2" legs (optional)

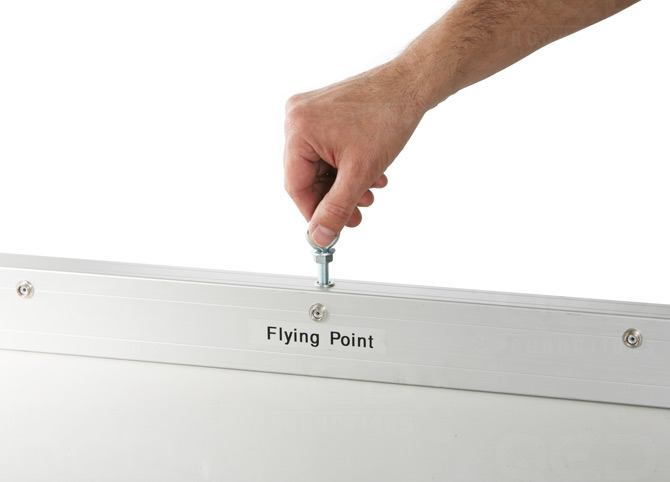

2 x eye-bolts for flying (optional)

Technical Specification

Front projection screen materialFlex White CI - 100% light-tight, cleanable, flame resistant.
Gain factor1.02
Viewing angle+/- 50°
Rear projection screen material(10 cm wide reinforced black border) - Flex Rear MO - cleanable, flame resistant.
Gain factor2.25
Viewing angle+/- 45°
Size of projection area (image dimensions)16' x 9' (488cm x 274cm) W x H
Frame size (outer dimensions)16'8" x 9'8" (508cm x 294cm) W x H
Bottom edge height (with legs)Minimum - 3.5" (9cm) / Maximum - 4'9" (146cm)
Top edge height (with legs)Minimum - 9'11" (303cm) / Maximum - 14'5" (440cm)
