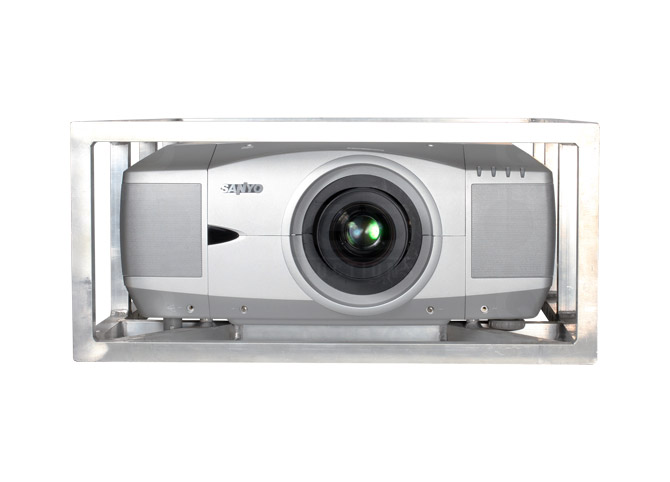

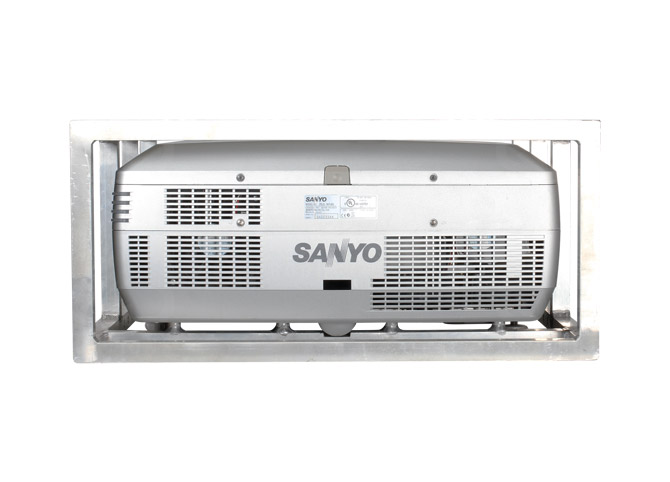

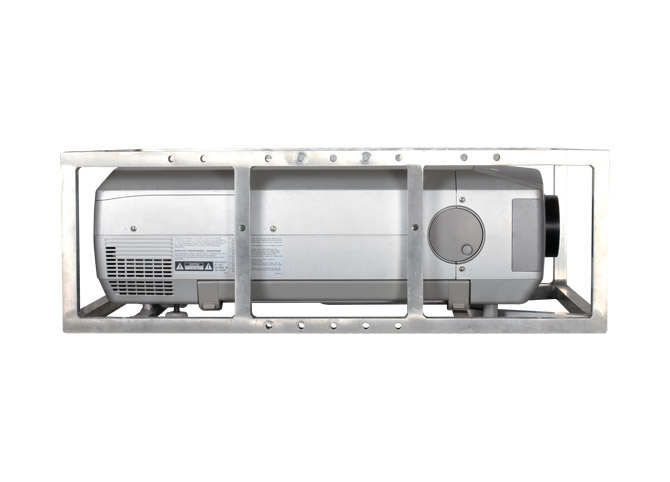

Sanyo PLC-XF45

1024 x 768 resolution - 10,000 lumens

Features

LCD™ Display Technology
10000 ANSI Lumens
1024 x 768 Native Resolution
4:3 Native Aspect Ratio
1100:1 Contrast Ratio
81.6 lbs
HDTV Ready

Technical Specification

Aspect Ratio 4:3 (Native), 16:9
Brightness (ANSI Lumens) 10000 ANSI Lumens (4 Lamp Mode)
5000 ANSI Lumens (2 Lamp Mode)
Contrast Ratio 1100:1
Display Type 1.8" Polysilicon LCD
Resolution (Native / Max) XGA (1024 x 768)
UXGA (1600 x 1200)
Video Compatibility PAL, PAL-M, PAL-N, SECAM, NTSC, NTSC 4.43, HDTV
Number of Colours 16.7 Million Colors
Dimensions (WxHxD) 22.9in. x 9.9in. x 30.8in. (58.17cm x 25.15cm x 78.23cm)
Weight 81.6 lbs. (37.01 kg)

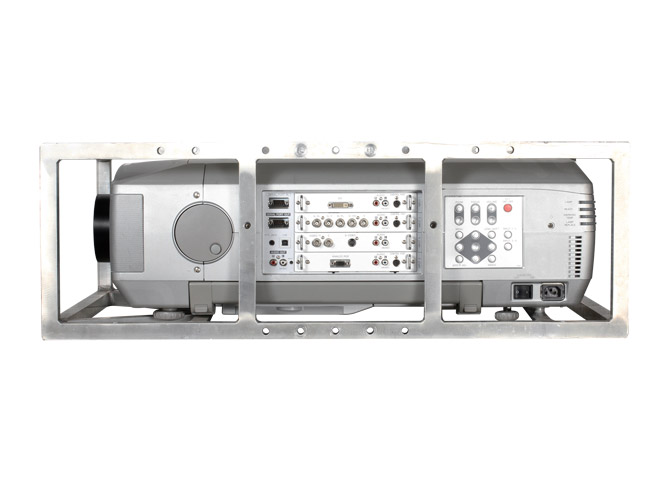

Inputs Digital Visual Interface (DVI-I), Left & Right Audio (RCA x 2), Control (Min DIN 8-pin), RGB & Component (5-BNC), Left & Right Audio (RCA x 2), Control (Min DIN 8-pin), Composite & Y/C (2-BNC), S-Video, Left & Right Audio (RCA x 2), VGA (D-Sub 15), Left & Right Audio (RCA x 2), Control (Min DIN 8-pin)
Control Serial in & Serial out (D-Sub 9 x 2), Audio out (RCA x 2), USB (type B), Wired RC jack (Stereo mini)
Power Supply 120 ~ 240 V / 50 ~ 60 Hz
Power Consumption 1500W
Audible Noise 46 dB
Operating Temperature 41°F ~ 95°F (5°C ~ 35°C)
Lamp Type 250W UHP x 4
Lens Shift Vertical: 10:0 ~ 0:10
Projection Mode Front
Projection Screen Size (Diagonal) 40in. ~ 600in. (101.6cm ~ 1524cm)
Vertical Keystone Correction +/- 40 Degrees
Dot Clock 230 Mhz
H-Sync Range 15 ~ 120 kHz
V-Sync Range 15 ~ 120 kHz
