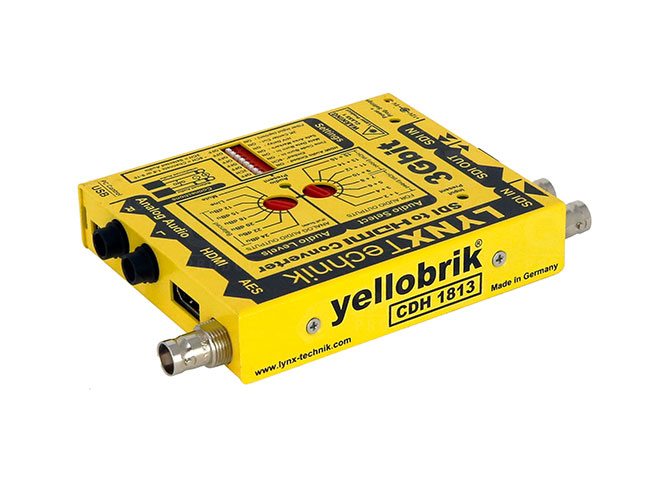

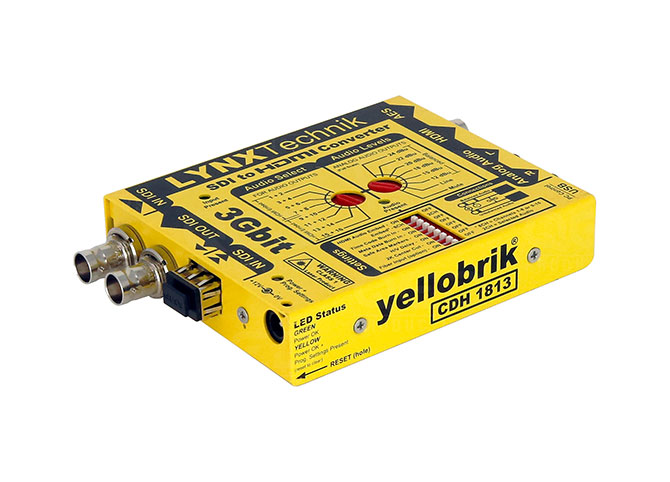

Lynx Technik yellobrik CDH 1813

3Gbit SDI to HDMI Converter + 3D Support

Overview

The CDH 1813 is a versatile, compact SDI to HDMI converter designed to combat a host of monitoring and display applications in broadcast, post production and pro A/V markets. Convert any SDI video signal, including 3D formats into HDMI signal for monitoring and display. Fibre connectivity options add SDI fibre transmission and/or SDI fibre reception using the integrated fibre SFP socket.

Two channels of audio can be de-embedded providing digital AES and analog audio outputs. Analog audio outputs have selectable full scale range presets. The two selected audio channels can also be embedded into the HDMI output. In addition 8 channels selected from the input signal (channels 1-8 or 9-16) can be embedded into the HDMI output. Various burn in features make the CDH1813 a true monitoring tool. Timecode burn in, 16 channel audio metering, safe area markers and Metadata display are just a few of the on-screen monitoring features. The yelloGUI software provides support for a host of additional settings and features which are accessed using a PC and the USB port on the module.

Features

Support for SDI video inputs up to 3Gbit/s (1080P)
3G SDI Level A and Level B support
Support for single link 3D formats
Automatic input standard and format detection
Fibre input and output options
HDMI video output with embedded audio
Analog and AES audio outputs
Selectable timecode burn in
Metadata burn in
16 channel on screen audio metres
H/V delay and safe area markers
yelloGUI compatible: Gain access to additional features
