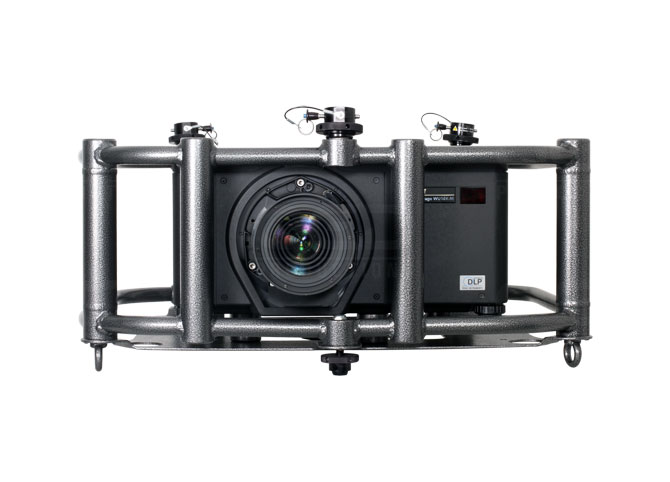

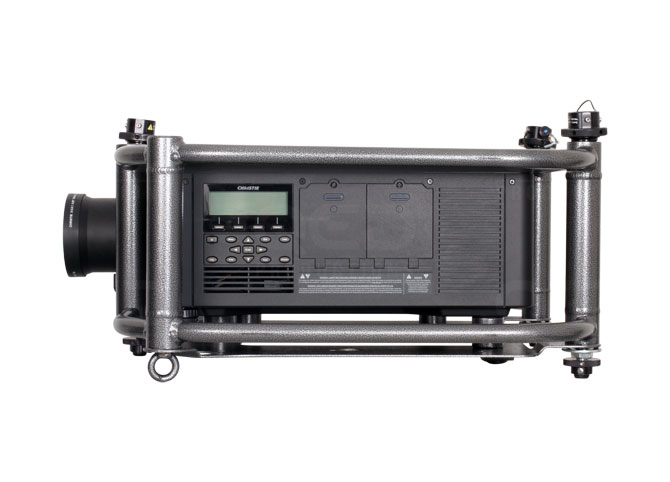

Christie WU14K-M

1920 x 1200 resolution - 14,000 lumens

Overview

The most compact in its class, the WU14K-M platform has embedded warping, blending and color matching capabilities that give you even more installation flexibility.

Features

WUXGA resolution (1920 x 1200)
14,000 center lumens
Variable contrast ratio of 2,500:1 (full on/ off) / 650:1 ANSI for crisp, detailed images
At maximum brightness this projector draws 1500W at 110V
Smallest chassis in its class
Dual mercury lamps (450W)
Comprehensive Color Adjustment (CCA™)
Embedded Christie Twist™ image warping and edge-blending
Dust-sealed engine, filter-free design
Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
Multiwindowing and screen processing (up to a 3x3 array)
Motorized yellow notch filter
24/7 operation

Technical Specification

Brightness Dual lamp: 14,000 center (12,500 ANSI) lumens
Single lamp: 7,000 center (6,250 ANSI) lumens
Contrast 2,500:1 (full on/off) 650:1 ANSI (typical)
Uniformity 90% brightness uniformity
Display type 3-chip 0.96" DMD
Resolution WUXGA (1920 x 1200)
Lamp type Dual 450W NSH
Lamp life High power: 1,250 hrs @ 450W
Low power: 1,500 hrs @ 360W
Standard inputs Analog (5 BNC)
Dual-link DVI
Input signals HDTV formats VGA through to QXGA (2048 x 1536)
Accepts all current HDTV/DTV formats
Multi-standard video decoder
Horizontal and vertical scaling, all inputs
Pixel clock 165 MHz
Scan rates Horizontal: 15 to 120 kHz
Vertical: 23.97 to 150 Hz
Inputs, control & networking RS232 in/out
RS422 in
Ethernet (10/100)
USB device
GPIO (RS232 9-pin male connector)
Built-in backlit LCD keypad
Remote control (with optional wired XLR connection)
Optical systems Dust sealed, 3-chip DMD light engine
Motorized horizontal and vertical lens offset
Scheimpflug (tilt) adjustment
Built-in light shutter
Tool-free lens insertion system
Offsets ±112% Vertical
±54% Horizontal
Enhanced feature sets LiteLOC™
Comprehensive Color Adjustment (CCA™)
Embedded Christie Twist™ image warping and edge-blending
Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset for all lenses
Auto setup
Digital keystone correction
Menus in five languages
99 channel memories
Multi-windowing and processing (up to a 3 x 3 array)
Black level blending
3D upgradable
Operating voltage 110-240 VAC 50/60 Hz
Operating current 15 A @ 100 VAC
Power 1500W
Dissipation 5118 BTU/hr
Size (LxWxH): 22.1 x 19.7 x 10.2" (561 x 500 x 259mm)
Weight 41.3kg including frame (without lens)
Operating environment Temperature: 40 to 104° F (5 to 40° C)
Humidity: 20-80% non-condensing
