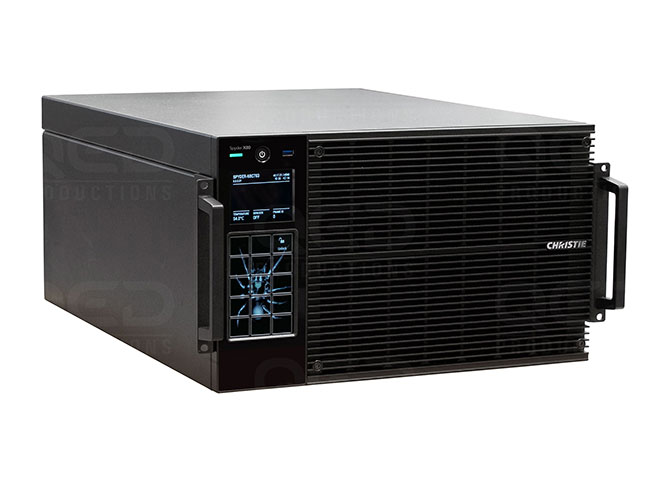

Christie Spyder X80

Multiviewer video processor

Overview

Christie, the undisputed leader in multi-window processing, is again setting the standard with the introduction of the new Spyder X80. Featuring processing and connectivity capabilities that surpass anything else in the market, the Christie Spyder X80 is the most powerful multi-screen windowing processor and content management solution available.

The X80 takes over from where the Spyder X20 left off, providing a digital canvas of at least 80 megapixels (six 4096x2160 independent destinations) all from within a single frame. With no linking of additional hardware or supplemental equipment the X80 can directly accommodate up to 72 individual 4K sources via DisplayPort 1.2, HDMI 2.0, 12G SDI, and up to sixteen unrestricted 4K outputs with 24 x 4K layers or 12 x 4K mixers live at any one time.

Also featuring 4 independent 4K multi-viewer outputs and 4 x 4K scaled outputs the X80 sets new standards in presentation technology, enabling the creation of spectacular, never-before-seen visual experiences.

Features

80 megapixel processing power - Unmatched processing in true 4K@60Hz performance across multiple displays.
Single-channel 4K support on every channel - Single-cable, 4K@60Hz performance reduces the need for additional channels and cables.
DisplayPort MST - Take advantage of multiple outputs form a single 4K DisplayPort output making the X80 perfect for LED, monitor arrays and multi-view outputs.
Extremely-low latency - Universal matrix switching with powerful, built-in cross-point hardware for fast switching and maximum input/output routing capability with no additional signal latency.
Flexible and scalable I/O architecture - Customizable I/O configurations of up to 24 inputs and 16 outputs and multiple connections, including HDMI 2.0, DisplayPort 1.2 and 12G HDSD.
Intelligent EDID - Easy management of EDID across the entire system to ensure adaptability across multiple sources and displays.
Christie Spyder Studio client software (GUI) - From simple presets to complex frame-accurate timelines, Spyder Studio has the flexibility and functionality required for the most demanding live environments.

Technical Specification

Inputs

Number

- Up to 6 input modules each with 4 inputs
- User may define the amount of modules required from 1 to 6

Signals

- Each input supports three connections
- DisplayPort 1.2, HDMI 2.0, 12G-SDI

Resolutions

- Horizontal up to 4096 (within pixel clock)
- Vertical up to 2400 (within pixel clock)

Scan rates

- Up to 120Hz dependent on pixel clock rate maximum

Outputs

Number

- Up to 4 output cards each with four outputs
- User may define the amount of modules required from 1 to 4

Signals

- Each output supports three connections
- DisplayPort 1.2, HDMI 2.0, and 12G-SDI

Resolutions

- Horizontal up to 4096 (within pixel clock)
- Vertical up to 2400 (within pixel clock)

Scan rates

- Up to 120Hz dependent on pixel clock rate maximum

Bit depth

- support for 8/10/12

Control and networking

- RS-232 in/out
- Ethernet (10/100/1000)

Power requirements

Operating voltage

- 90-264 VAC @ 50/60Hz

Operating current

- 14A Max

Power

- 1680W

Physical

Space required

- 6RU

Size (LxWxH)

- 23.54 x 17.36 x 10.28"
- 598 x 441 x 261mm

Weight (fully loaded)

- 79.75 lbs
- 36.17 kg

Environment

Temperature

- 40-95°F
- 5-35°C

Humidity

- 20-80% non-condensing

Enhanced features

- Independent aspect ratio and frame rate setup
- Overlays
- Transitions
- Aspect ratio conversions
- Integrated source monitoring
- Output rotation (portrait)
- Optional stereoscopic support
- HDCP support
- 2D and 3D capabilities
