Barco ImagePRO-II

Overview

ImagePRO-II is an advanced high performance all-in-one video scaler, scan converter, switcher and transcoder converting any input signal format to any output format. ImagePRO-II supports Universal Analog, DVI single and dual link, HDMI, DisplayPort and SD/HD/3G SDI signal formats. Loop-through outputs are provided for the Analog, DVI and SDI input and genlock signals. With features like HDCP and EDID management, USB back up and restore, multiple video effects and web page interface, ImagePRO-II is the most advanced and flexible signal processor in the rental and staging industry making it the best suitable solution for your live event.

Next generation Athena scaler
Incorporating the 5th generation of the Athena scaler - Barco's custom-designed image processing technology, ImagePRO-II supports higher resolutions, higher frame rates, higher quality de-interlacing with advanced Motion Adaptive processing, faster source acquisition, better color depth and native support for all the latest computer formats. As formats and interface requirements frequently change, the Athena scaler is built to be adaptable providing superior signal clarity, while maintaining a low processing latency of only one frame.

Simple setup and advanced control
Whether you are saving a setup for later, or need to copy a setup to multiple units, the incorporated USB back up and restore functionality makes configuration simple and efficient. ImagePRO-II is easily controlled via the front panel, browser or a mobile device. Featuring the fastest automatic source acquisition available, the ImagePRO-II excels in automatically acquiring and locking to any input signal. On the output side, ImagePRO-II can also automatically determine the format of the attached display optimizing its output resolution to match the display's resolution.

Shock tested, roadie approved
As the ImagePRO-II is built for the live event industry it has been designed with the road in mind. With features like field replaceable DVI connectors, 1 RU form factor and professional EtherconTM connector ImagePRO-II supports the demanding environment of any live event.

Features

Inputs/outputs
Dual-link DVI/HDCP I/O
3Gbit HDSDI I/O
HDMI/HDCP I/O
DisplayPort/HDCP I/O
Universal analog I/O
Loop-through on DVI, SDI & analog inputs
User interface

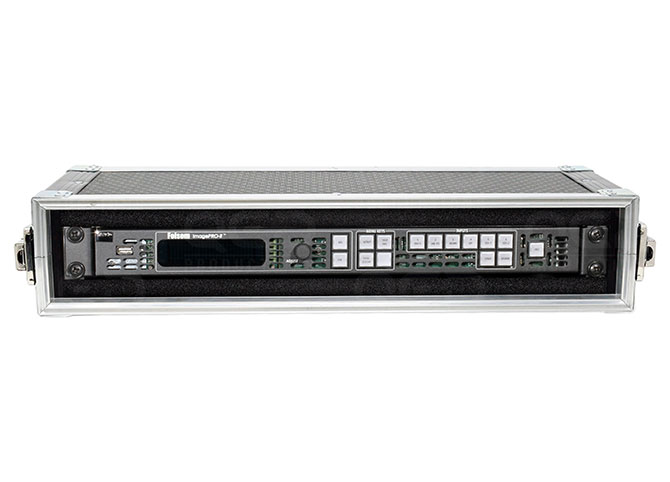

ImagePRO-3G front panel control
Web browser & tablet remote control
Encore suite of controllers
LED setup and configuration
Processing
12-bit processing
Resolution up to WQXGA (2560x1600)
Frame rate up to 120 Hz for 1080p
System configuration and restore via USB

Technical Specification

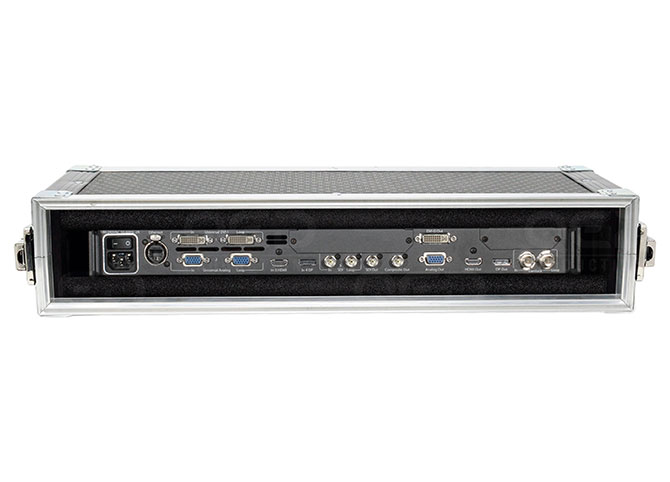

Video inputs Input 1: DVI-I Connector
Digital formats; all single-link DVI digital formats up to 165 Mhz, per DVI 1.0 Specification and all dual-link DVI formats up to 300 Mhz; Max H Active: 4096 Max V Active: 3072
Analog formats: NTSC/PAL composite and Y/C video, SD YPb
PR with bi-level sync, HD YPbPr with tri-level sync, RGBHV/RGBS/RGsB computer video with bi-level sync Analog sampling: sources with pixel rates up to 170 Mhz are sampled 1:1; sources with pixel rates above 170 Mhz are filtered and sampled at 170 Mhz, including but not limited to 1920x1200p, 2048x1080p
Active loop-through output of all input signals, including HDCP and EDID
EDID version 1.3 compatible
HDCP version 1.4 compatible

Input 2: HD-15 VGA Connector
Format: NTSC/PAL composite and Y/C video SD YPbPr with bi-level sync HD YPbPr with tri-level sync per SMPTE 274, RGBHV/RGBS/RGsB computer video with bi-level sync
Sampling: sources with pixel rates up to 170 Mhz are sampled 1:1; sources with pixel rates above 170 Mhz are filtered and sampled at 170 Mhz, including but not limited to: 1920x1200p, 2048x1080p
Active loop-through output of all input signals
EDID version 1.3 compatible

Input 3: HDMI (Type A) Connector
Formats: RGB and YCbCr; Resolutions up to 2048x1080p @ 60 Hz
EDID version 1.3 compatible
HDCP version 1.4 compatible

Input 4: DisplayPort Connector
Formats: resolutions up to 2560x1600 @ 60Hz (30 bits) per DisplayPort 1.1a
HDCP version 1.4 compatible

Input 5: SD/HD/3G SDI on BNC connector
Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 425
Re-clocked loop-through output
Video outputs Output1: SD/HD/3G SDI on BNC connector
Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 425

Output 2: NTSC/PAL composite video on BNC connector

Output 3: DVI-D Connector
Formats all single-link DVI digital formats up to 165 Mhz, per DVI 1.0 specification
All dual-link DVI formats up to 300 Mhz
EDID version 1.3 compatible
HDCP version 1.4 compatible

Output 4: HD-15 VGA Connector
Formats: NTSC/PAL composite on green, NTSC/PAL Y/C video with bi-level sync on Y only, (Y: Green, C: Red); SD YPbPr with bi-level sync; HD YPbPR with tri-level sync per SMPTE 274; RGBHV/RGBS/RGsB computer video with bilevel sync
EDID version 1.3 compatible
Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 425
Re-clocked loop-through output

Output 5: HDMI (Type A) Connector
Formats: RGB and YCbCr at 4:4:4, YCbCr at 4:2:2, per HDMI 1.4 specification; Resolutions up to 2048x1080p @ 60Hz
EDID version 1.3 compatible
HDCP version 1.4 compatible

Output 6: DisplayPort Connector
Formats: resolutions up to 2560x1600 @ 60Hz (30 bits) per DisplayPort 1.1a
HDCP version 1.4 compatible
Genlock Analog Ref Input/Loop/Output on BNC connectors; Bi-level and Blackburst at SD and Tri-level at HD
Remote Control USB 1.1
Ethernet RJ-45, 10/100 Mbps Autosense
Computer, tablet, smartphone, or external Encore or ScreenPRO-II Controller via Ethernet link.
Control functions include: source input configuration, output format selection, test pattern selection, transition effect selection and control
Physical Height: 1.75 in (4.4 cm) - 1 RU Rackmount

Width: 17 in (43.2 cm)- without chassis handles, 19.06 in (48.4cm) with chassis handles attached

Depth: 17.09 in (43.4 cm) from front panel to rear panel, 18.51 in (47 cm) from front of Adjust knob to face of BNC connectors

Weight: 15.75 lb (7.144 kg)
Input Power Power 100-240 VAC, 47-63 Hz, Auto-selecting 2.0A maximum
Environmental temperature 0-40° Celsius
Environmental humidity 0-95% noncondensing
