QED HDMI 2.0 TX/RX

Full 4K HDMI 2.0 fibre optic extender field kit

Overview

The TX/RX kit can cope with a bandwidth of up to 18 Gbit/s. The system analyses and interprets all data which is to be transferred, such as refresh rates, resolution, colour subsampling or even the copy protection (HDCP) and forwards these to the RX, e.g. also the hot-plug. It is thus possible to swap from UHD 4K, 60Hz 4:4:4 to 1080p without having to restart the system.

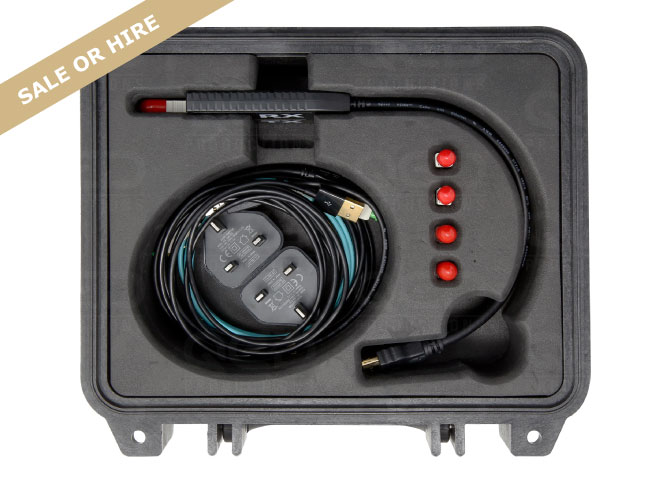

This equipment is supplied complete with a custom Peli case, LC to SC adapters, ST to SC adapters, and USB 13A plugs.

Features

Single fibre technology
4K @60Hz RGB 4:4:4 up to 600m, over multimode OM3 cable
FullHD @60Hz RGB up to 2500m, over multimode OM3 cable
Resolution agnostic
Transparent EDID
Bandwidth up to 18Gbit / s
HDCP support: no / 1.4 / 2.2
HDMI support: 1.4 / 2.0
DVI support: 1.0
Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
No signal latency, zero frame delay.
CEC support
Status LEDs (fiber link, signal and HDCP detect)
High Dynamic Range (HDR)
HDMI plug type A with tension spring for increased pull-out strength
CWDM technology for maximum bandwidth over a single fibre
Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio) amend the existing audio
Solid machined aluminum body
5v USB power
Universal connectivity - LC to SC and ST to SC adapters
Supplied in custom routed ruggedised Peli case with 13A plugs
