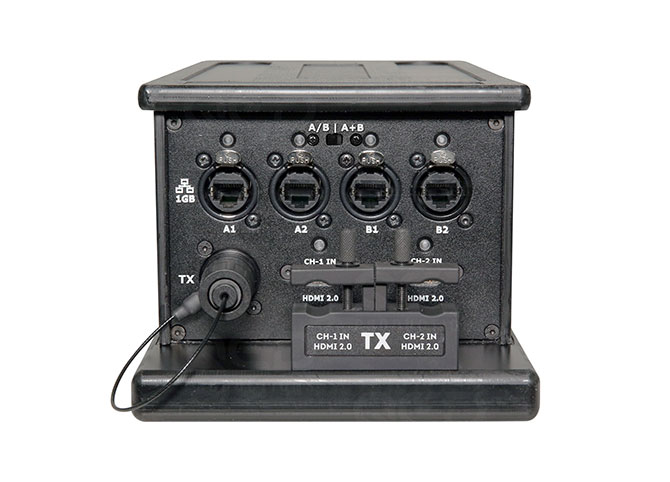

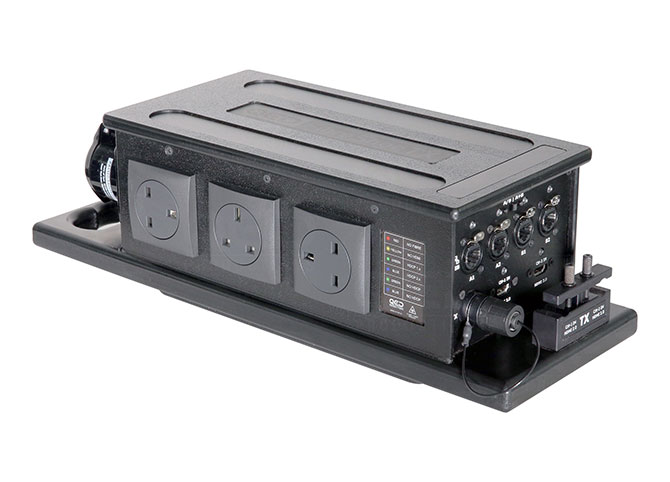

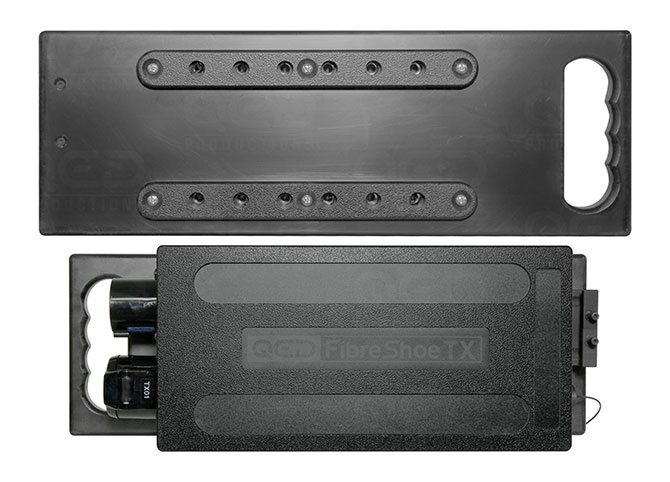

QED HDMI 2.0 FibreShoe™ TX

Dual channel HDMI 2.0 / 1Gb ethernet fibre transmitter

Features

Locking 16A input power connector
16A power loop-out connector
3 x 13A sockets for peripheral devices
2 x independent 4K HDMI channels
2 x discrete 1Gb network connections
Robust, dust-proof Fibreco Mini HMA hermaphroditic connector
Integrated adjustable rigging points for use with standard Doughty couplers
Fully compatible with QED FibreStick and QED HDMI 2.0 TX/RX system
Multi colour LED status display

Technical Specification

4K @60Hz RGB 4:4:4 up to 600m over multimode OM3 cable
Full HD @60Hz RGB up to 2500m over multimode OM3 cable
Resolution agnostic
Transparent EDID
Supports both HDCP 2.2 and 1.4
Supports both HDMI 2.0 and HDMI 1.4 signals
Supports DVI 1.0
No signal latency - zero frame delay
CEC support
High Dynamic Range (HDR)
CWDM technology for maximum bandwidth
Supports all embedded audio formats including PCM, Dolby Digital and DTS high-bitrate audio
