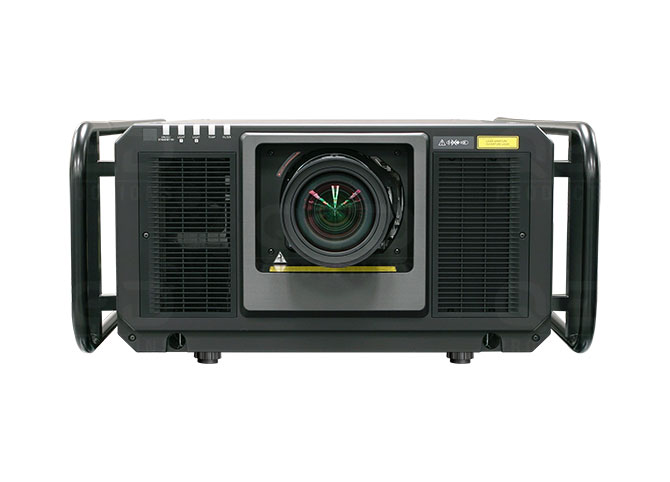

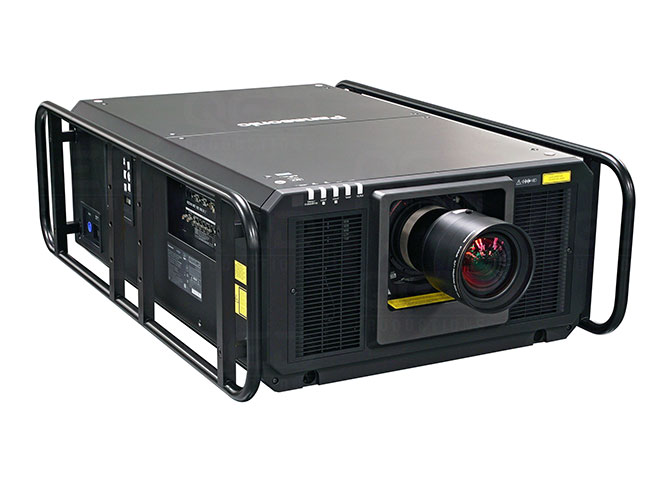

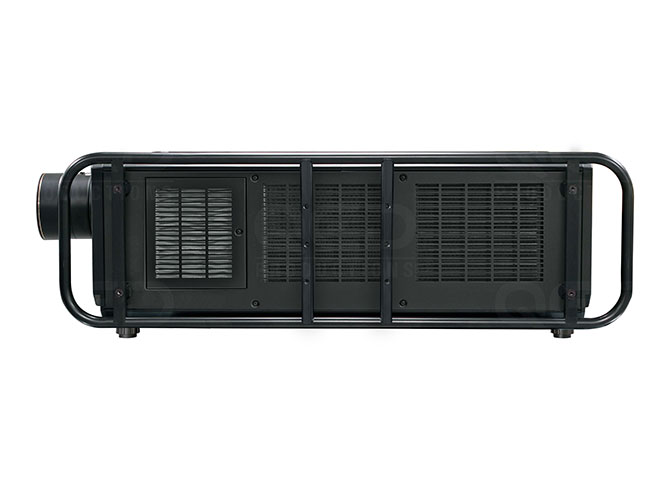

Panasonic PT-RZ31K projector

1920 x 1200 resolution - 31,000 lumens - laser

Features

Ultra-low power consumption

31,000 lm (centre) / 30,000 lm

WUXGA 1920 x 1200 resolution

SOLID SHINE laser technology

120 Hz drive reduces motion blur

Dynamic contrast technology adds depth and realism

Contrast sync function for multi-screen configurations

Detail clarity processor 5 provides pin-sharp insight

System daylight view 3 optimizes for mapping and bright conditions

Waveform monitor function

Active 3D projection capability

Color matching

Full 10-bit image processing

Digital cinema reality

IP conversion

2:2 pulldown function

sRGB compatibility

Technical Specification

Power supply	AC 200-240 V, 50/60 Hz; AC 100-200 V, 50/60 Hz (brightness is restricted with lower voltage)
Power consumption	2,870 W (0.3 W with Standby Mode set to Eco, 4 W with Standby Mode set to Normal) [2,870 VA, AC 200 V] Average Power Consumption: 2,310 W (High Mode), 1,890 W (Normal Mode), 1,040-1,680 W (Long Life 1 Mode), 924-1,580 W (Long Life 2 Mode), 794-1,460 W (Long Life 3 Mode) [Operating temperature: 25 °C (77 °F), altitude: 700 m (2,297 ft), IEC627087: 2008 Broadcast content, Image Mode: Standard, Dynamic Contrast Mode: 2]
DLP™ chip	Panel size: 24.4 mm (0.96 inches) diagonal (16:10 aspect ratio) Display method: DLP™ chip x 3, DLP™ projection system Pixels: 6,912,000 (1920 x 1200 x 3) pixels
Refresh rate	120 Hz (Refresh-rate varies depending on vertical scanning frequency).
Light source	Laser diode (laser class: Class 1), Light-source life: 18,000 hours (High Mode, brightness decreases to approx. 50 %), 20,000 hours (Normal Mode, brightness decreases to approx. 50 %), 43,800 hours (Long Life 1 Mode, consistent brightness), 61,320 hours (Long Life 2 Mode, consistent brightness), 87,600 hours (Long Life 3 Mode, consistent brightness) [IEC627087: 2008 Broadcast content, Image mode: Standard, Dynamic Contrast Mode: 3]
Filter	With supplied filter: 4,000 hours (Normal Mode), 2,000 hours (High Mode), 20,000 hours (Long Life 1/2/3 Mode); With Long Life Filter: 20,000 hours (Normal Mode), 4,000 hours (High Mode), 40,000 hours (Long Life 1/2/3 Mode)

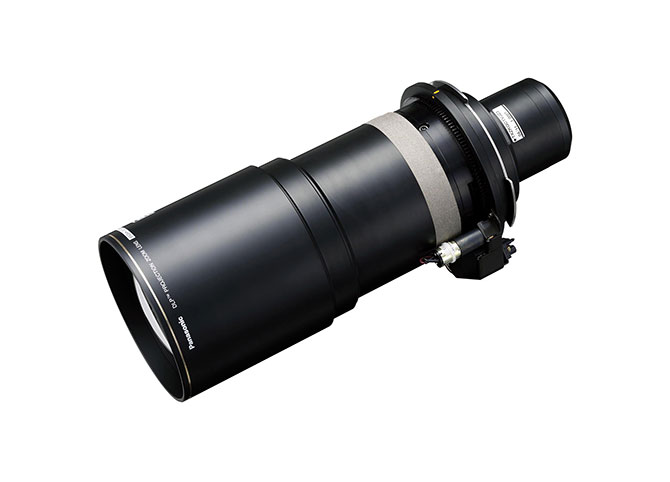

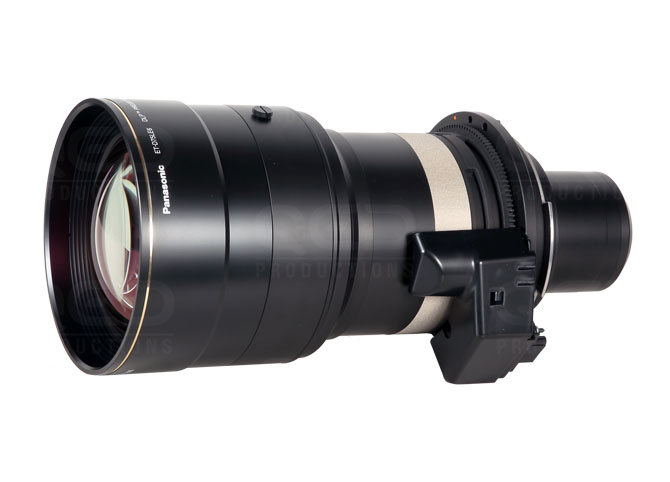

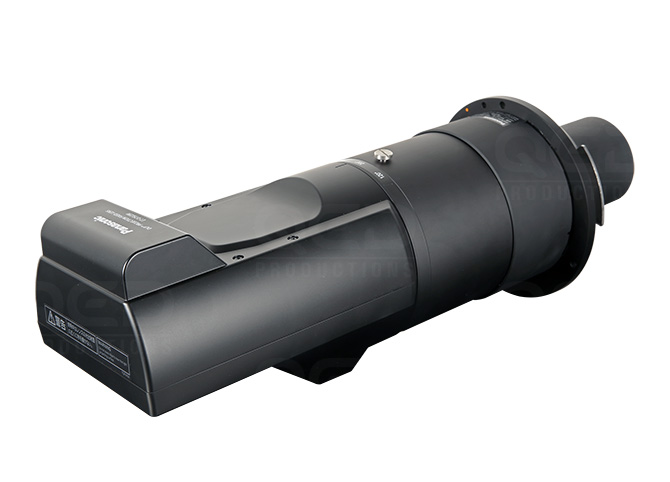

Screen size (diagonal)	1.78-25.4 m (70-1,000 in) with 16:10 aspect ratio 1.78-15.24 m (70-600 in) with the ET-D75LE8, 16:10 aspect ratio 3.05-15.24 m (120-600 in) with the ET-D75LE95, 16:10 aspect ratio
Brightness	31,000 lm (Center) / 30,000 lm (High Mode), 26,000 lm (Center) /25,000 lm (Normal Mode), 12,000 lm (Long Life 1 Mode), 10,000 lm (Long Life 2 Mode), 8,000 lm (Long Life 3 Mode)
Center-to-corner uniformity	90%
Contrast	20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
Resolution	1920 x 1200 pixels
Scanning frequency	SD-SDI: SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480/60i, 576/50i HD-SDI: SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p Dual-link HD-SDI: SMPTE ST 372 compliant, [RGB 4:4:4 12-bit/10-bit] 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 2048 x 1080/24p, [X'Y'Z' 4:4:4 12-bit] 2048 x 1080/24p, 2048 x 1080/25p 3G-SDI: SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 2048 x 1080/24p, 2048 x 1080/25p, 2048 x 1080/30p, [YPBPR 4:2:2 10-bit] 1080/60p, 1080/50p, 2048 x 1080/48p, 2048 x 1080/50p, 2048 x 1080/60p, [X'Y'Z' 4:4:4 12-bit] 2048 x 1080/24p, 2048 x 1080/25p, 2048 x 1080/30p Dual-link 3G-SDI: SMPTE ST 425 compliant, [YPBPR 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p, [RGB 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p HDMI/DVI-D/DIGITAL LINK: 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, 640 x 400-WUXGA*8 (1920 x 1200) (compatible with non-interlaced signals only), dot clock: 25-162 MHz RGB: fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower YPBPR (YCBCR): fH: 15.73 kHz, fV: 59.94 Hz [480/60i], fH: 15.63 kHz, fV: 50 Hz [576/50i], fH: 31.47 kHz, fV: 59.94 Hz [480/60p], fH: 31.25 kHz, fV: 50 Hz [576/50p], fH: 45.00 kHz, fV: 60 Hz [720/60p], fH: 37.50 kHz, fV: 50 Hz [720/50p], fH: 33.75 kHz, fV: 60 Hz [1080/60i], fH: 28.13 kHz, fV: 50 Hz [1080/50i], fH: 28.13 kHz, fV: 25 Hz [1080/25p], fH: 27.00 kHz, fV: 24 Hz [1080/24p], fH: 27.00 kHz, fV: 48 Hz [1080/24sF], fH: 33.75 kHz, fV: 30 Hz [1080/30p], fH: 67.50 kHz, fV: 60 Hz [1080/60p], fH: 56.25 kHz, fV: 50 Hz [1080/50p] Video/YC: fH: 15.73 kHz, fV: 59.94 Hz (NTSC/NTSC4.43/PAL-M/PAL60), fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM)
Optical axis shift	Vertical (from center of screen): ±55% Horizontal (from center of screen): ±20%
Keystone correction range	Vertical: ±40°, Horizontal: ±15°
Installation	Ceiling/floor, front/rear, free 360° installation

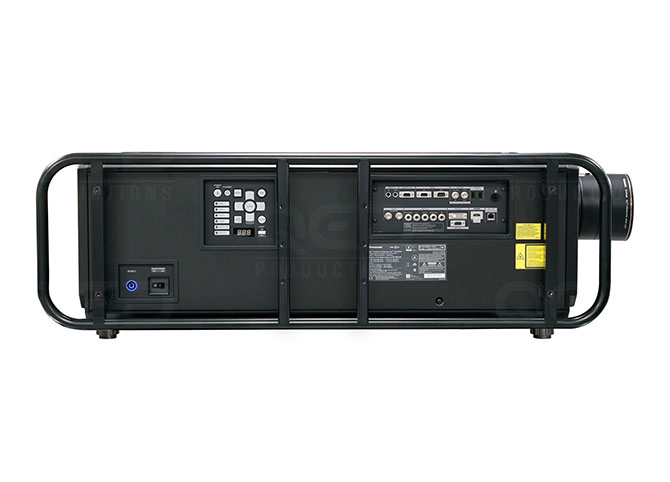

Terminals	SDI 1 IN: BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link-A), Dual-link 3G-SDI (Link 1) SDI 2 IN: BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link-B), Dual-link 3G-SDI (Link 2) HDMI IN: HDMI 19-pin x 1 (Deep Color, compatible with HDCP) DVI-D IN: DVI-D 24-pin x 1 (single link, DVI 1.0 compliant, compatible with HDCP) RGB 1 IN: RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR/YC/VIDEO RGB 2 IN: D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR MULTI PROJECTOR SYNC IN/3D SYNC 1 IN/OUT: BNC x 1 MULTI PROJECTOR SYNC OUT/3D SYNC 2 OUT: BNC x 1 SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant) SERIAL OUT: D-sub 9-pin (male) x 1 for link control REMOTE 1 IN: M3 x 1 for wired remote control REMOTE 1 OUT: M3 x 1 for link control REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel) LAN/DIGITAL LINK: RJ-45 x 1 for network, DIGITAL LINK connection, 100Base-TX, compatible with Art-Net, PJLink™ (Class 1), Deep Color, HDCP DC OUT: USB Type A x 2 for power supply (DC 5 V, max 900 mA)
Cabinet materials	Metal, molded plastic
Dimensions (W x H x D)	700mm x 418mm x 1,250 mm (including protruding parts)
Weight	Approx. 79 kg (174 lbs.)
Operation noise	49dB
Operating environment	Operating temperature: 0-50°C (32-122°F) [altitude: up to 1,400m (4,593ft), High/Normal Mode]; 0-45°C (32-113°F) [altitude: up to 4,200m (13,780ft), High/Normal/Standby/Eco/ Long Life1/2/3 Mode]; 0-40°C (32-104°F) [altitude: up to 1,400m (4,593ft) with Smoke Cut Filter]; Operating humidity: 10-80% (no condensation)
