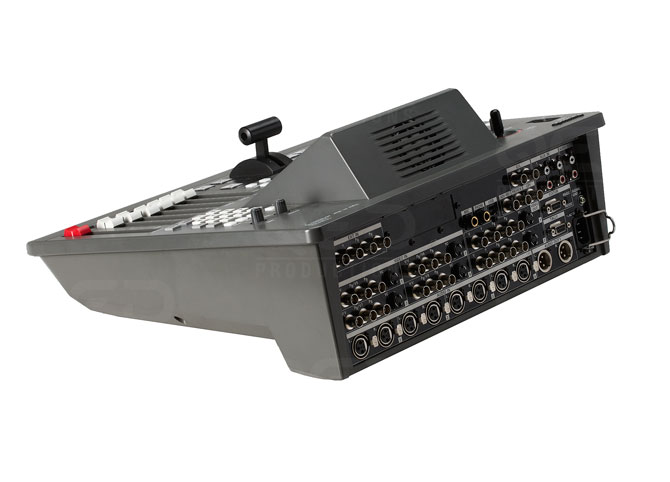

Panasonic AG-MX70

8-input vision mixer

Features

Designed for live events and full-fledged digital post-production.
Compact unit with a 2-BUS, 8-input video switcher, high-performance, multi-functional digital video effects unit and versatile audio mixer.
4:2:2:4 digital component picture quality with Dynamic RoundingTM for broadcast-quality video and 16:9 wide and 4:3 aspect ratio capability.
Creates more than 600 2D effects patterns including transitions, key patterns, mosaic, paint, trail and multi-images.
Optional AG-VE70P 3-D effects board delivers over 1600 effects including page-turns, accordion, spheres and ripples.
An easy-to-operate joystick allows users to position and size effects as well as select and adjust colors.
Tally outputs for up to eight cameras and 2-channel frame synchronization permitting special effects in each of the A/B program busses.
Large LCD control panel for easy operation and monitoring of system status.
Five-row matrix menu display with five rotary switches makes it easy to set the units multitude of functions.
Inputs including composite, Y/C, component, or Serial Digital (SDI).
30-frame graphics buffer for roll, crawl and logo animation; and a USB interface makes it easy to download graphics.
RS-422A and RS-232C remote control terminals standard and a GPI terminal to permit the AG-MX70 to team with video editing devices.
Versatile audio mixing with four stereo inputs (or embedded audio with the optional SDI interface), plus 2 Auxiliary Inputs, one of which can be switched to a microphone level input.
