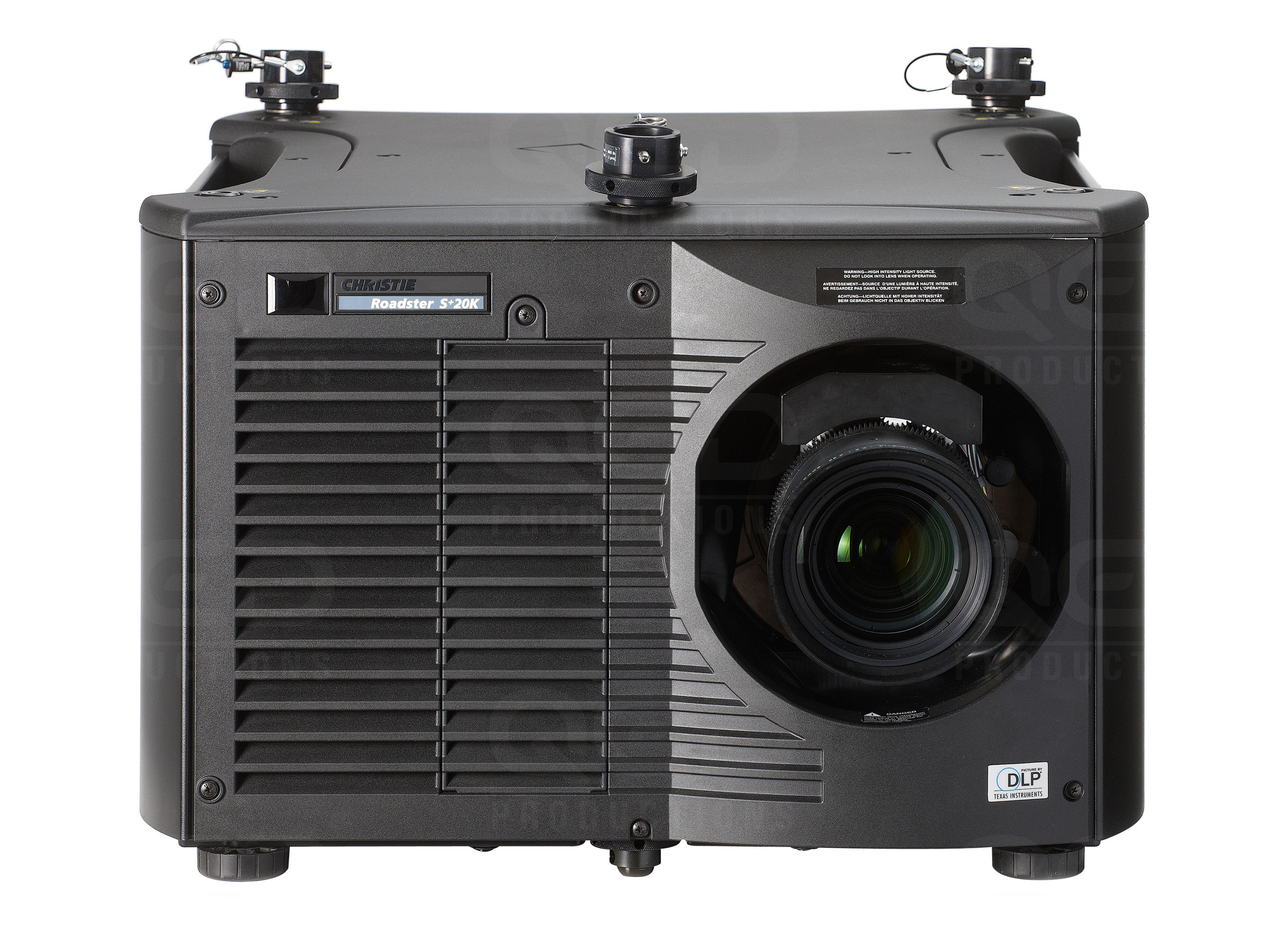

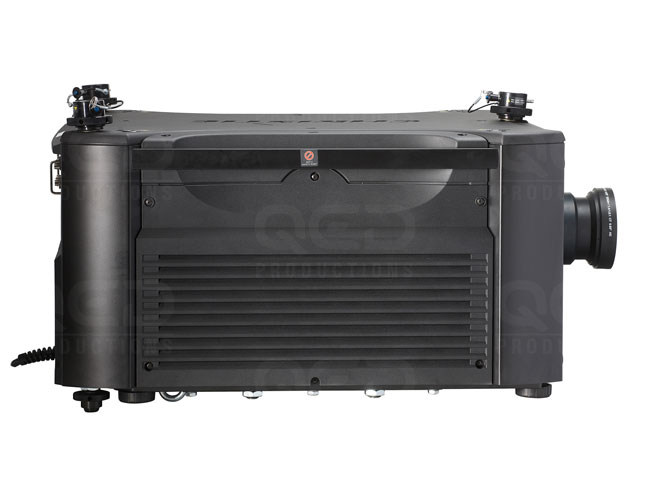

Christie Roadster S+20K

1400 x 1050 resolution - 20,000 lumens

Overview

For pure power, knock-out brightness and a compact, purpose-built package, the Christie Roadster S+20K DLP projector is the de facto standard for rental/staging. With 20,000 ANSI lumens, DLP® technology, and purpose-built features meant for the world of Rental/Staging, fly, rig, stack, ship it - use the Christie Roadster S+20K again and again. With customer replaceable bulbs, the highest contrast, DLP™ technology, a standard Dual SD/HD-SDI module and a compact form factor - the Christie Roadster S+20K is ideal for executive briefing rooms, conference centers, concerts, tradeshows, and auditoriums.

Featuring a Xenon illumination system, Digital Black Level Adjustment and LiteLOC™ light output control - you’ll get big, bright, edge-blended images from the smallest form factor available at greater than 20,000 ANSI lumens.

Features

20,000 ANSI lumens
SXGA+ 1400 x 1050 resolution
1800:1 contrast ratio enabling highly enhanced image detail, with blacker blacks and whiter whites
All new 10-bit image processing providing broader color spectrum and wider input signal compatibility

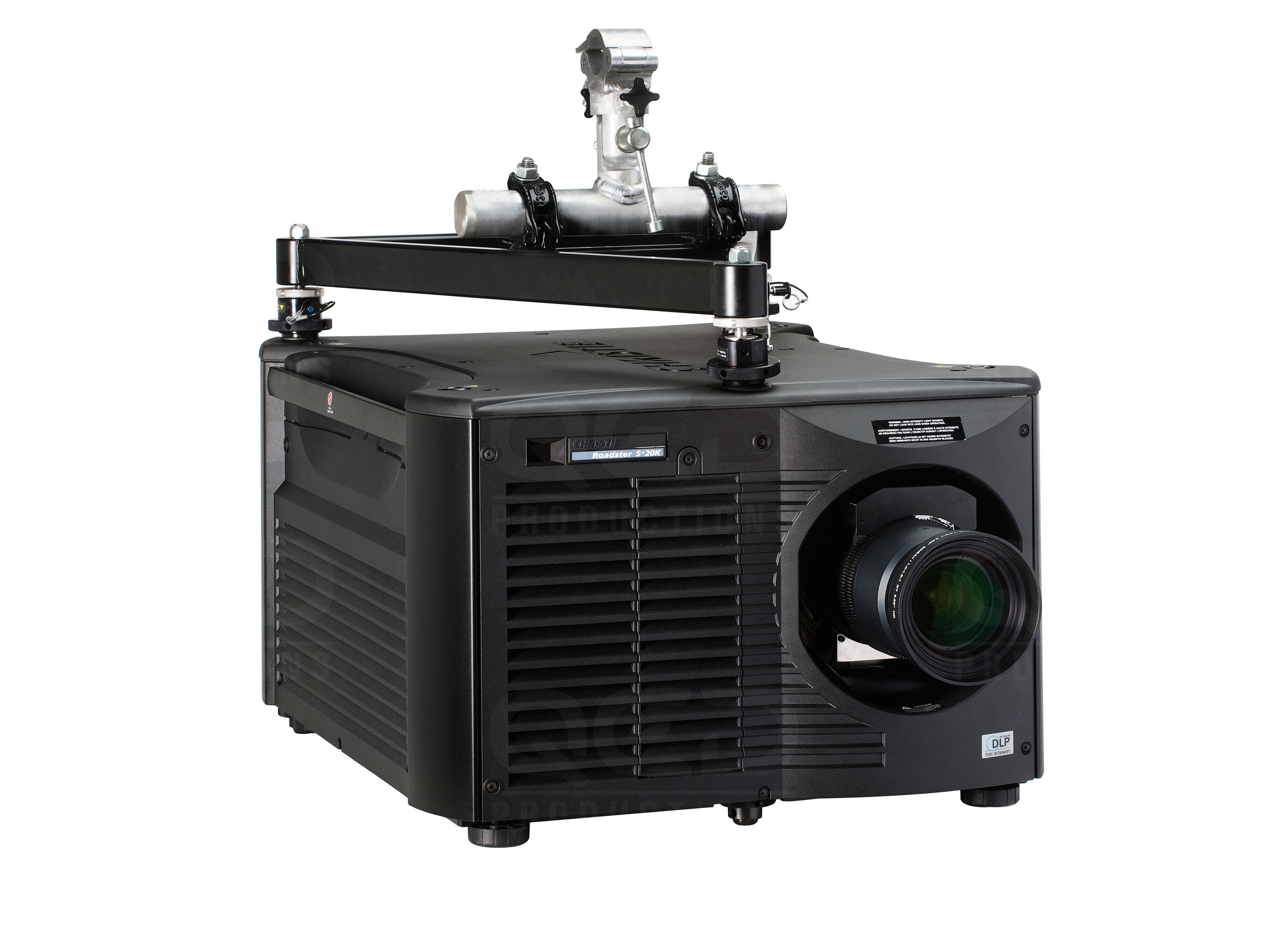

Built-in stacking and rigging
Xenon Bubble lamp system providing photo-realistic color with the ability to edge-blend and tile images
Widest source compatibility and has built-in Ethernet networking for full compatibility with ChristieNET™ for total projector monitoring and control.

Technical Specification

Image 20,000 ANSI lumens (+/- 10%)
90% brightness uniformity across the screen
Contrast 1800:1 full field
Display Technology and Resolution 3-chip 0.95" DLP®
True SXGA+ 1400 x 1050 resolution
Input Signal Compatibility VGA through to QXGA (2048 x 1536)
Supports standard HDTV formats up to 1080p
Multi-standard video decoder
Horizontal and vertical scaling, all inputs
Scan Rates Horizontal - 15 kHz to 120 kHz
Vertical - 23.97 Hz to 150 Hz

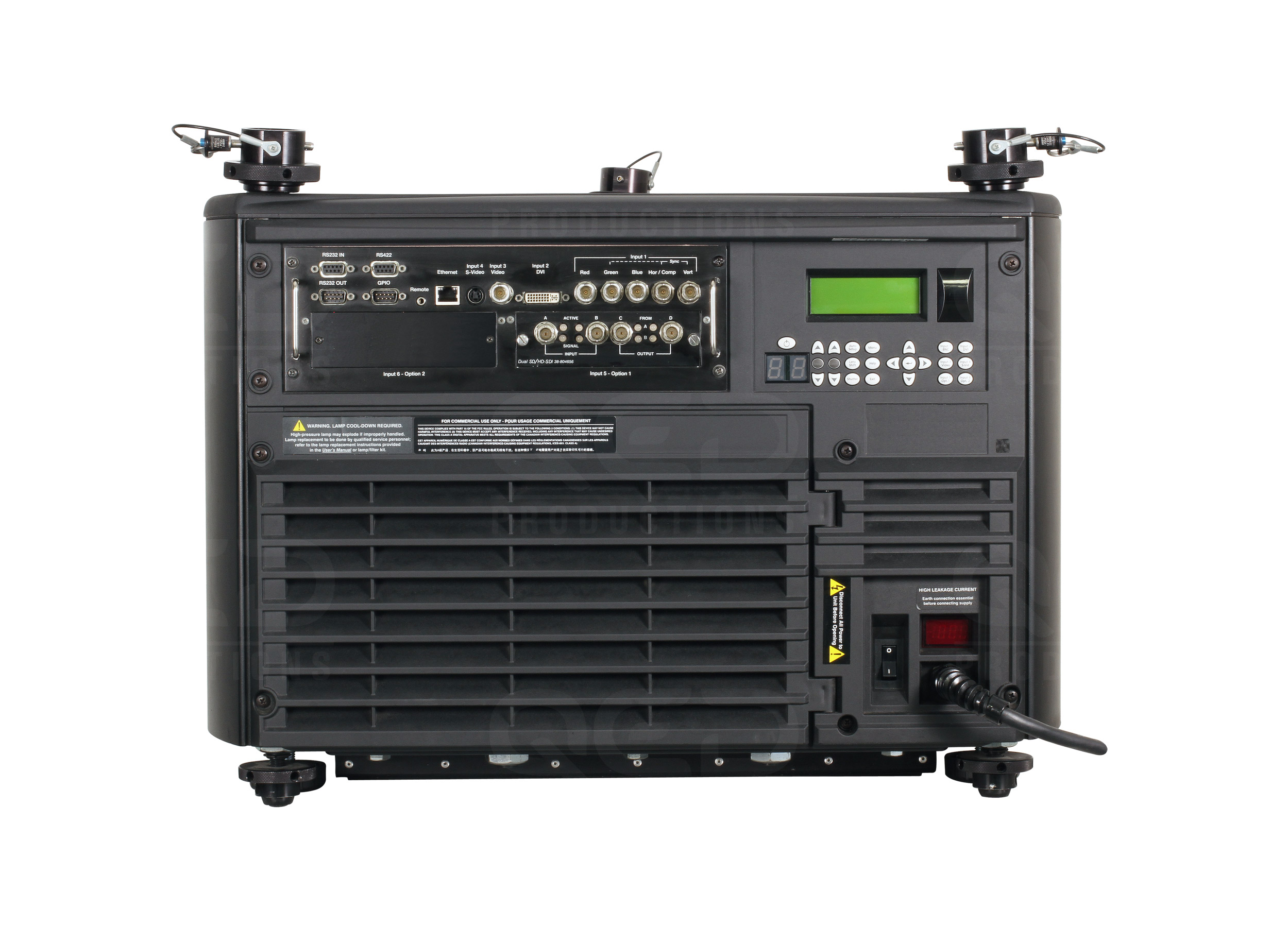

Inputs, Control and Networking RGBHV/YPbPr via 5 BNC
DVI-I - digital/analog RGB/YPbPr (HDCP)
One composite video, one S-Video
Two option slots for analog/digital modules
3 RS-232 ports and 1 RS-422 port
On-board ChristieNET™ connectivity (RJ45)
Built-in backlit keypad and IR remote control
Graphical User Interface Auto set-up, power-up feature
Menus in five languages
On-screen help
50 channel memories
Optional image warping
Built-in edge-blending
Comprehensive Color Adjustment (CCA™)
Lens Mount Motorized horizontal and vertical offset
Tool-free lens insertion system
Tilt adjustment
Lamp 3.0kW Xenon Bubble lamp
750 hours (typical) lifetime
Light Output Control (LITELOC™) "Auto Brightness" (Intensity), "Lamp Conserve" (Power), "Max Brightness" modes
Built-in light shutter
Power Requirements 200 VAC to 240 VAC +/- 10% @ 50/60 Hz
Power consumption: 5000W maximum (measured 3900W at 264 @ 14.8 A)
Thermal dissipation: 17,060 BTU/hr
Operating current: 25A @ 200V
Dimensions Weight: 73 kg (excludes lens, feet, stacking points)
Shipping weight: 122 kg (in flight case, excludes lens, feet, stacking points)
Size: 24.5" W x 32.1" L x 15.1" H (631.4mm W x 814.8mm L x 384mm H) (excludes lens, feet, stacking points)
Operating Environment Temp: 40 to 95° F (5 to 35° C
Humidity: 20 - 80% non-condensing
HD Lens Options 0.73:1 HD Fixed Lens
1.2:1 HD Long Focal Lens
1.26-1.61:1 HD Zoom Lens
1.5-2.1:1 HD Zoom Lens
2.0-2.8:1 HD Zoom Lens
2.8-4.5:1 HD Zoom Lens
4.1-6.9:1 HD Zoom Lens
6.9-10.4:1 HD Zoom Lens
