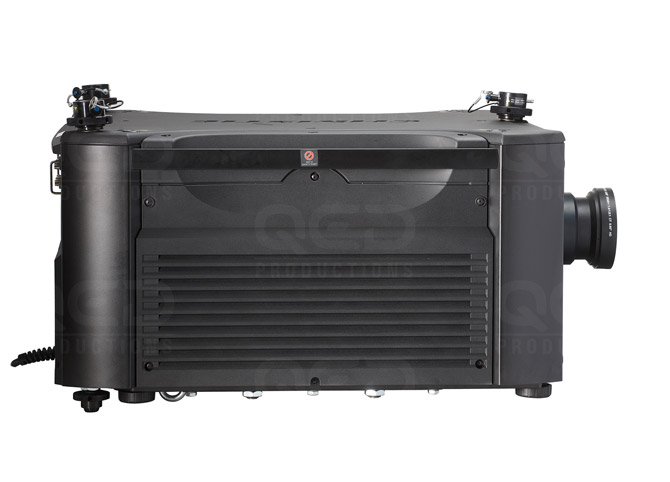

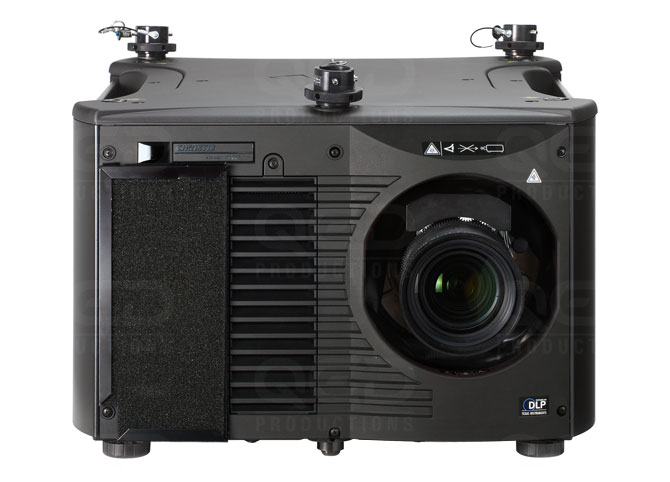

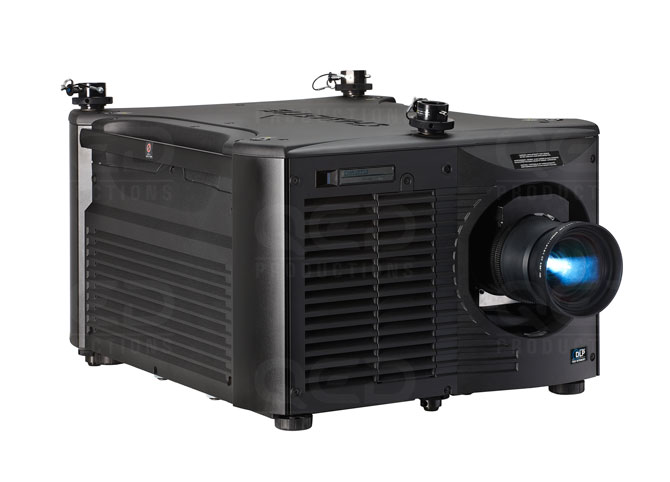

Christie Mirage WU20K-J

1920 x 1200 resolution - 20,000 lumens

Overview

The Mirage WU20K-J couples the benefits of xenon illumination – for the most natural colour accuracy and stability - with the next level of technology, performance and flexibility. With powerful standard features, such as Christie Twist™, liquid cooling and portrait display capabilities, the Mirage WU20K-J provides high performance and more lumens per watt in the smallest, most rugged chassis in its class.

Delivering more pixels, and more performance for visually stunning 3D for corporate events and entertainment, museums and education, scientific research, manufacturing, oil and gas exploration and anything in between.

With dual image processing capabilities, there are three modes of 3D input - native 3D input, frame doubled 3D and Dual Input 3D for maximum source compatibility and high-performance flicker-free operation without the need of a passive to active converter.

Features

WUXGA resolution (1920 x 1200)
18,000 ANSI (20,000 centre) lumens
Embedded Christie Twist™ for image warping and edge blending
Variable contrast ratio of 1600-2000:1 Full Field | 650:1 ANSI for crisp, detailed images
3.0kW xenon bubble lamp module
Comprehensive Color Adjustment (CCA™)
Dust-sealed engine
Intelligent Lens System (ILS) for zoom, focus, horizontal and vertical offset
Multi-windowing and screen processing (up to a 3x3 array)
Yellow notch filter (optional)
Setup lights help users see menu displays in low-light environments
Hybrid stacking
Built-in portrait capabilities
Liquid cooling allows for operating temperatures up to 40°C (104°)

Technical Specification

Image Brightness: 18,000 ANSI lumens, 20,000 centre lumens
Contrast: 1600-2000:1 Full Field | 650:1 ANSI
Uniformity: 80% brightness uniformity
Display Type: 3-chip 0.96" DMD
Native resolution: WUXGA (1920 x 1200)
Lamp Type: 3.0kW xenon bubble lamp module
Life: 750 hours typical lamp life
Inputs Analog
Dual link DVI
SD/HD-SDI
Video Decoder
Twin HDMI
Signals HDTV formats VGA through to QXGA (2048 x 1536)
Accepts all current HDTV/DTV formats
Multi-standard video decoder
Horizontal and vertical scaling, all inputs
Pixel Clock 165MHz
Scan Rates 15kHz – 120kHz Horizontal
23.97Hz – 150Hz Vertical

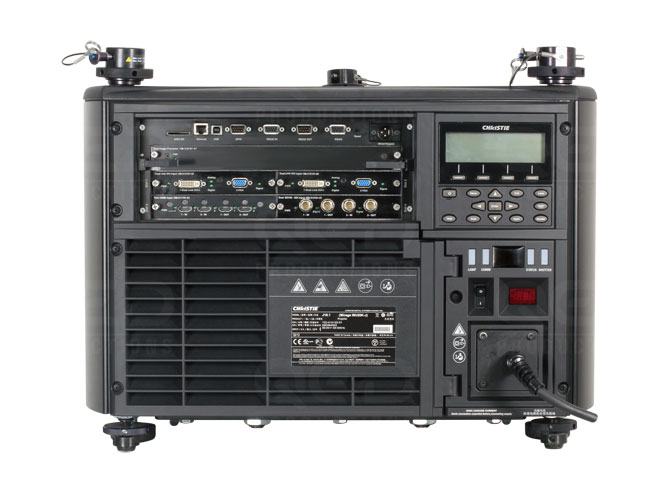

Control & Networking RS232 In/Out
RS422 In
Ethernet (10/100)
USB Device
GPIO (RS232 9 Pin male connector)
Built-in, backlit LCD keypad
Remote control (with optional wired XLR connection)
Enhanced Feature Set Embedded Christie Twist™
Embedded image tiling
Intelligent Lens System (ILS)
Liquid cooling
Advanced block artifact reduction
ChristieNET ™ Web interface
User-friendly, intuitive LCD keypad
Advanced Loop-Thru twin HDMI card
Set-up lights
Lamp memory module
User replaceable lamps
Advanced, 10-bit processing
Automatic shut off and ECO mode
Dust-sealed light engine
SNMP (simple network management protocol)
DHCP (dynamic host configuration protocol)
Hybrid stack
Compatibility with legacy accessories
Power Requirements Operating voltage: 200V AC to 240V AC @ 50/60Hz
Max current: 20A @200V
Max power: 4000 W
Dissipation: 13,650 BTU/hr
Dimensions Dimensions: (LxWxH): 815 x 621 x 419mm (32 x 24.5 x 16.5")
Weight: 72.5kg (160lbs) (without lens)
Shipping weight: 91kg (200lbs)
Operating Environment Temp: 5 – 40°C (40 – 104°F)
Humidity: 20 – 80% noncondensing
