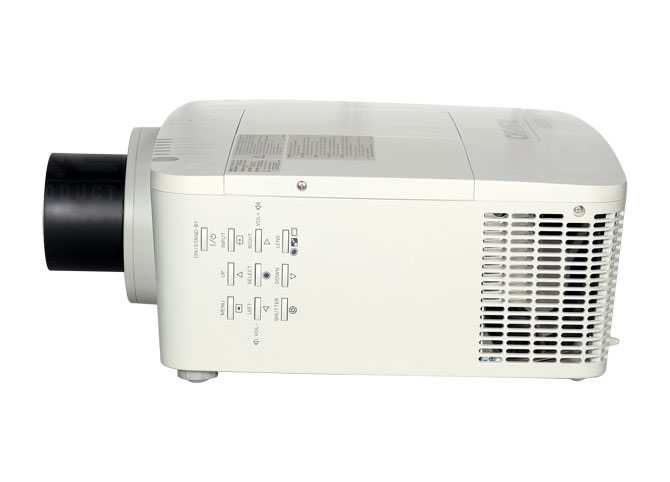

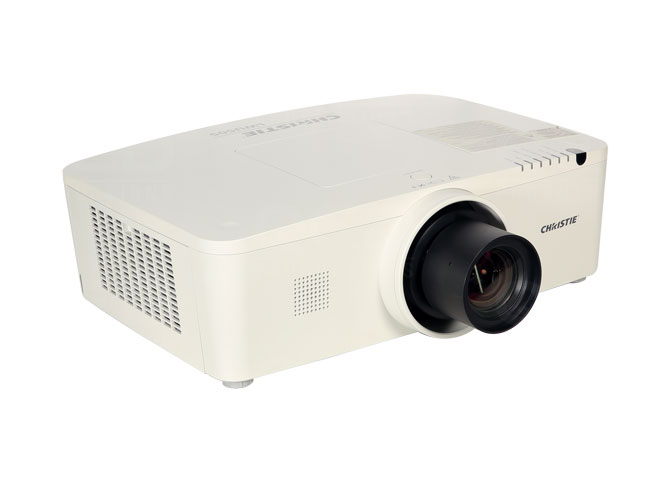

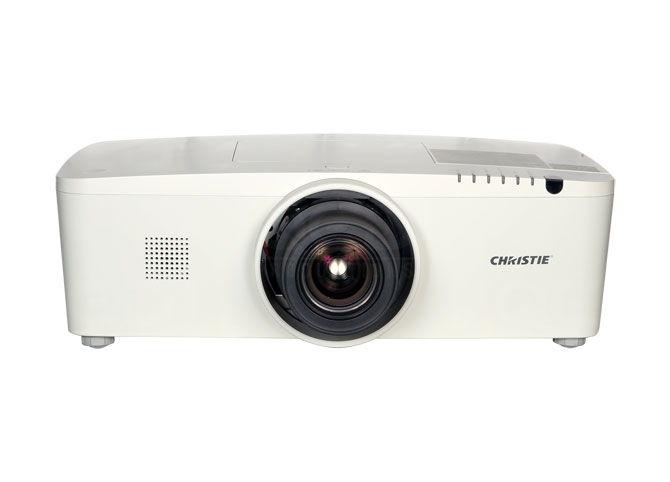

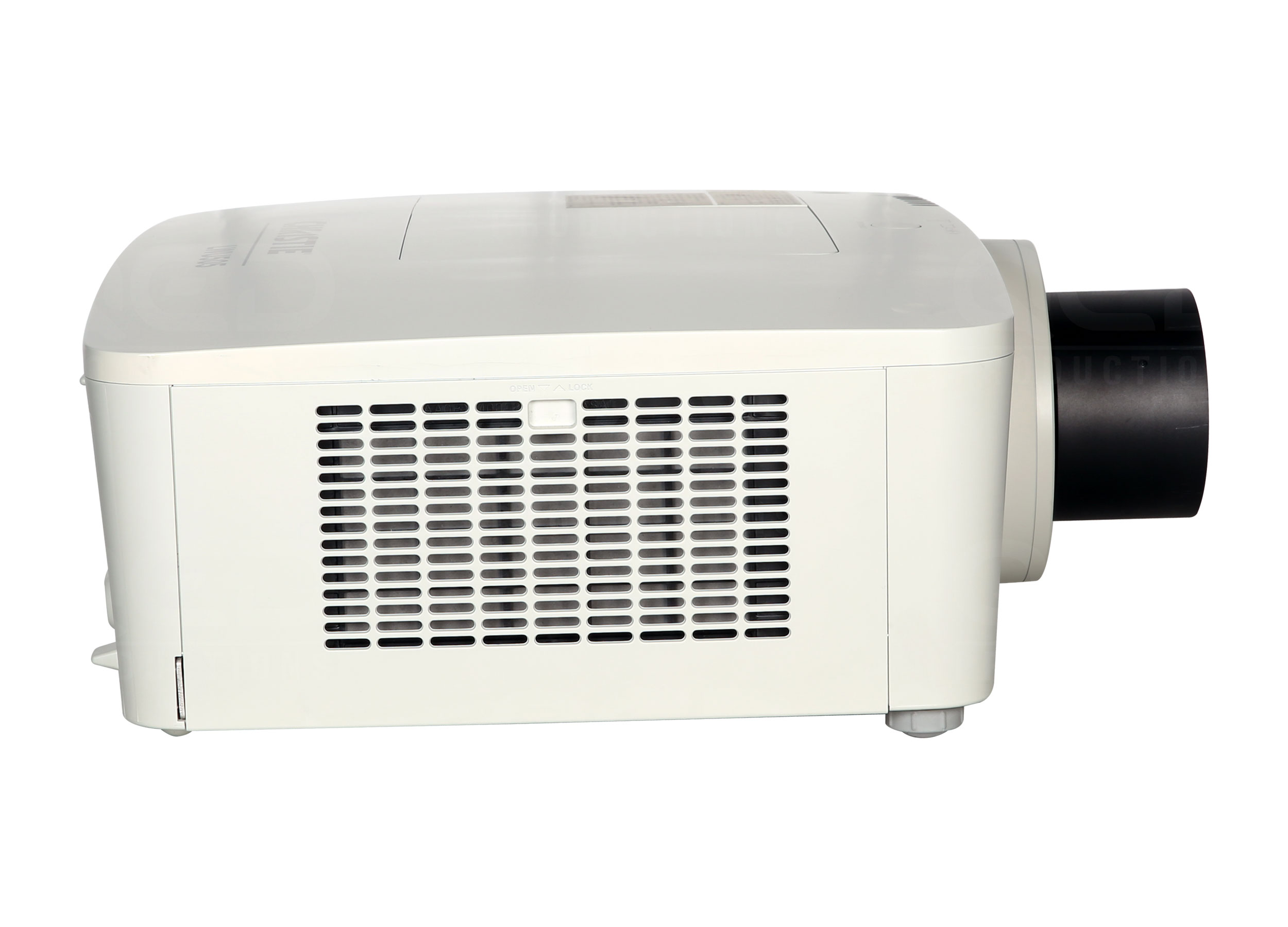

Christie LWU505

1920 x 1200 resolution - 5,000 lumens

Overview

The Christie LWU505 digital projector offers native WUXGA resolution (1920 x 1200) making it an ideal choice for small to mid-sized applications.

Set up and image adjustment is a breeze, even in the most challenging room environments...built-in 3D Keystone™ technology ensures quick and easy image alignment. The Christie LWU505 is also equipped with motorized lens shift for zoom and focus, with a center mount lens design and easy one-button lens release capability.

Features

5,000 ANSI lumens brightness suitable for small to medium size applications
Native WUXGA resolution (1920x1200)
2000:1 contrast ratio for exceptional image clarity
Highest level of data resolution without compromising full HD video content
Mechanical shutter (light dowser)

Technical Specification

Image 5000 ANSI lumens
2000:1 contrast ratio
>80% brightness uniformity
Display 3 x 0.76" Inorganic LCD panels
Native WUXGA (1920 x 1200) resolution
Lamp 330W NSHA
Normal mode 2000 hours, eco mode 3000 hours
Signal Compatibility VGA through WUXGA (1920 x 1200)
Video Signal Accepts current HDTV/DTV formats (720p, 1035i, 1080i, 1080p)
Pixel Clock 162MHz ~ 162MHz

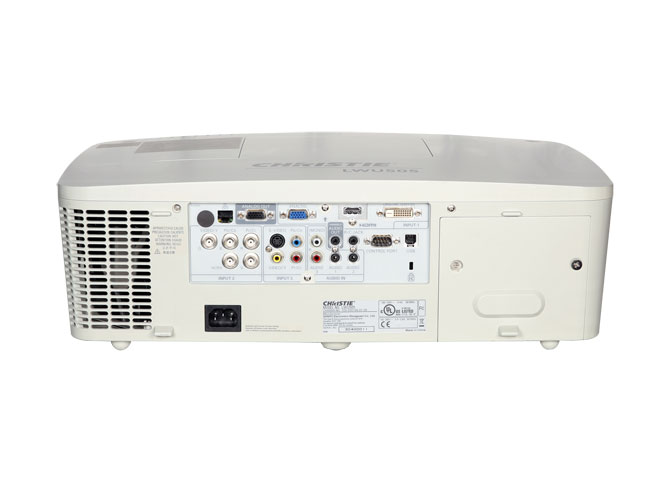

Inputs, Control and Networking DVI-D x 1 (HDCP Compliant)
HDMI x 1
D-Sub 15 x 1
BNC x 5 (R,G,B,H,V & Y, Pb/Cb, Pr/Cr & Composite)
Mini DIN 4-pin (S-video)
RCA x3 (Video/Y,Pb/Cb,Pr/Cr)
Audio input Mini jack x 2(1,2)(stereo)
RCA x2(R,L-mono)
Control port Dsub-9 x 1
R/C Jack - Mini jack x 1 (wired remote)
RJ45 LAN x 1
Optical System Motorized zoom, focus and lens shift
Vertical and Horizontal lens shift
Power Requirements Operating voltage: 100-120 VAC ±10%/200-240 VAC ±10%
Operating current: 5.2A max @ 100-120 VAC 50/60Hz; 2.5A max @ 200-240 VAC 50/60Hz
Operating power: 488W max
Dissipation: 1,771 BTU/hr
Dissipation: 1,665 BTU/hr
Dimensions Body size with lens (LxWxH): 17.12 x 19.27 x 6.50" (434.8 x 489.5 x 164.0mm)
Weight: 21.6lbs (9.8kg) with lens (approx.)
Noise 35dBA standard mode
29dBA eco mode
Operating Environment Operating temperature: 41-104°F (5-40°C)
Humidity (non-condensing): 20-80%
Altitude: 0-8858ft/0-2700m

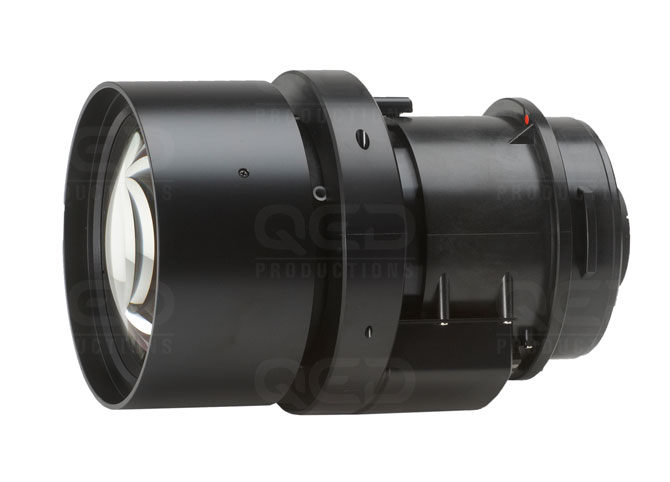

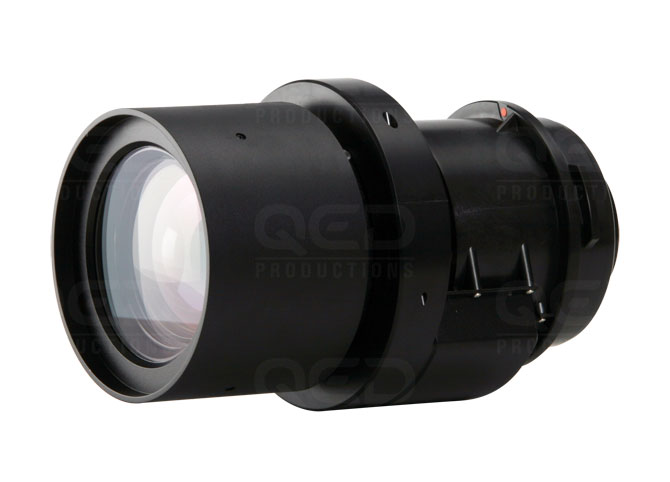

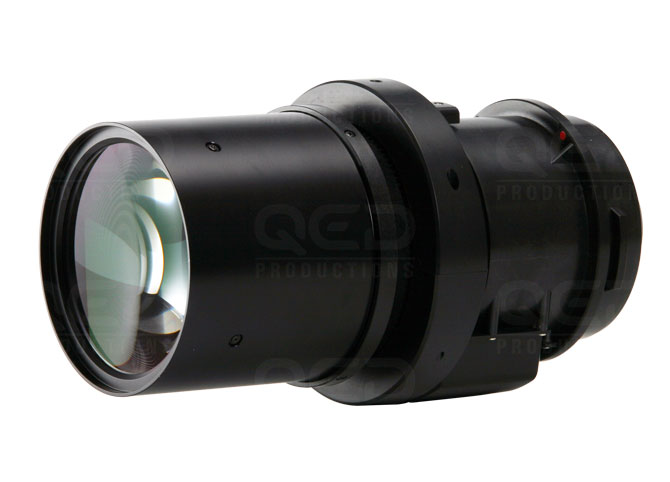

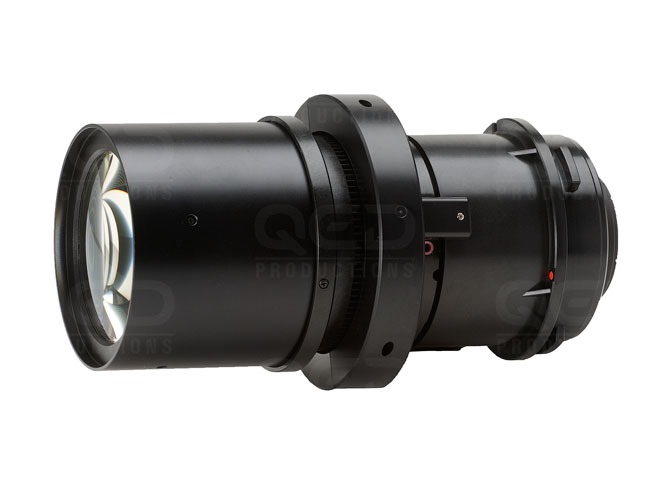

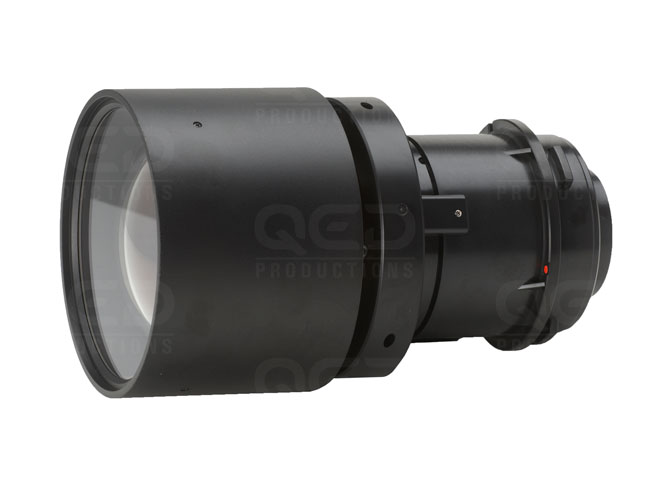

Related Equipment
