Christie Roadster HD8K

1920 x 1080 resolution - 10,000 lumens

Overview

Hire the world's first native HD resolution 3-chip DLP® high brightness digital projector from QED.

The Christie HD8K has a 1920 x 1080 native resolution and a variable contrast ratio of 1500-2000:1 for crisp, detailed images.  Next generation DLP® technology, high-quality optics and proven 10-bit image processing deliver exceptional image quality.  The Christie HD8K features high-quality lenses specifically designed to increase image sharpness and provide manual contrast adjustment for impeccable control over your images.  It also features the Christie TWIST module for edge-blending and image warping, two HD input channels that will also allow 4:4:4 signals, digital dark level adjustment,  Intelligent Lens System™ on zoom and focus, and DMX 512 communication capabilities.  It utilizes Xenon illumination - the pinnacle of image colour accuracy and adjustability.

Features

True HD native resolution (1920 x 1080)
10,000 ANSI lumens from a compact, robust package
1500-2000:1 contrast ratio enabling highly enhanced image detail, with blacker blacks and whiter whites
Can come with optional stacking cage
Smallest, high-performance 3-chip DLP® product offers the pinnacle of image color accuracy and adjustability
True 10-bit image processing offers high-bandwidth signal processing
Xenon lamp system provides repeatability of photo-realistic colors and ability to accurately color-match images
2 High Definition input channels that allow 4:4:4 HD signals
DMX 512 communication capabilities

Technical Specification

Image 10,000 ANSI lumens (+/- 10%)
90% brightness uniformity across the screen
Contrast 1610-2100:1 full field
Display Technology and Resolution 3-chip 0.95" DLP®
True HD 1920 x 1080 resolution
Scan Rates Horizontal - 15 kHz to 120 kHz
Vertical - 23.97 Hz to 150 Hz
Input Signal Compatibility VGA through to QXGA (2048 x 1536)
Supports standard HDTV formats up to 1080p
Multi-standard video decoder
Horizontal and vertical scaling, all inputs

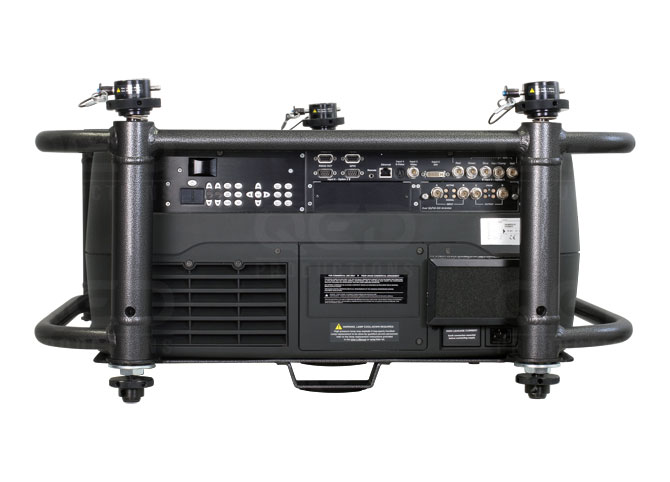

Inputs, Control and Networking RGBHV/YPbPr via 5 BNC
DVI-I - digital/analog RGB/YPbPr (HDCP)
One composite video, one S-Video
Two option slots for analog/digital modules
3 RS-232 ports and 1 RS-422 port
On-board ChristieNET™ connectivity (RJ45)
Built-in backlit keypad and IR remote control
Advanced Feature Set Auto set-up, power-up feature
Menus in five languages
On-screen help
50 channel memories
Built-in edge-blending
Comprehensive Color Adjustment (CCA™)
Optional ChristieTWIST™ image warping
Lens Mount Motorized horizontal and vertical offset
Tool-free lens insertion system
Tilt adjustment
Built-in light shutter
Lamp 1.2kW CERMAX® Xenon pre-aligned lamp module
1500 hours (typical) lifetime
Power Requirements 210 VAC to 240 VAC +/- 10% @ 50/60 Hz
Power consumption: 2100W maximum
Thermal dissipation: 6825 BTU/hr
Operating current: 10A @ 210V
Dimensions Weight: 52.6 kg including frame (excluding lens)
Flightcase weight: 48 kg (excluding lens)
Shipping weight: 100.6 kg
Size: 26"W x 22.3" L x 12.3"H (660mm W x 566mm L x 313mm H) (excluding lens)
Flightcase dimensions: 34.5" W x 36.2" L x 28.7" H (870mm W x 920mm L x 730mm H)
Operating Environment Temp: 40 to 95° F (5 to 35° C
Humidity: 20 - 80% non-condensing
HD Lens Options 0.67:1 HD Fixed Lens
1.1:1 HD Long Focal Lens
1.16-1.49 HD Zoom Lens
1.4-1.8:1 HD Zoom Lens
1.8-2.6:1 HD Zoom Lens
2.6-4.1:1 HD Zoom Lens
4.1-6.9:1 HD Zoom Lens
6.9-10.4:1 HD Zoom Lens
