Brainstorm Distripalyzer SR-112

Time code reader, distributor, reshaper, analyser and generator

Overview

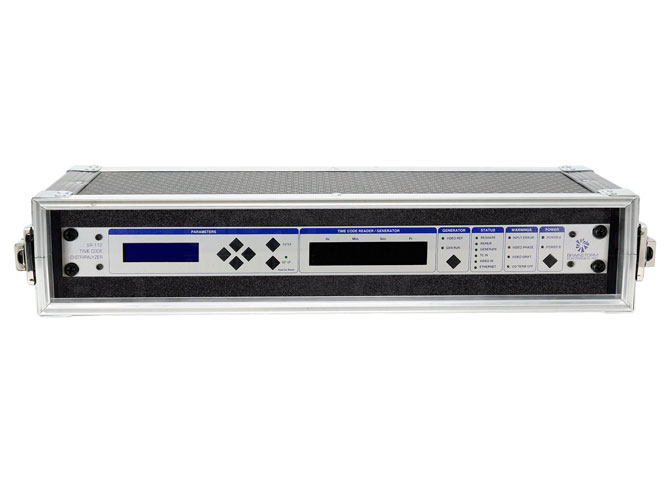

The SR-112 reshapes and distributes time code, while analyzing it. A large 8 digit reader is included on the front panel and an error report can be sent via the ethernet port. All modern SMPTE and EBU SD/HD rates are supported. But, unlike the SR-15+, the new SR-112, with the optional generator software (TCG), can also repair bad time codes and generate new ones.

Features

Identifies time code, reports errors (rate, type, drop outs)
Monitors time code / video phase
Outputs a complete report via Ethernet
Eliminates level fluctuations
Buffered outputs; balanced or unbalanced
Adjustable Output Levels
Repairs errors such as drop outs or video phase
Generates new Time Code with or without video reference

Technical Specification

To view the full technical specification please click here.
Back to equipment list

Product Downloads
