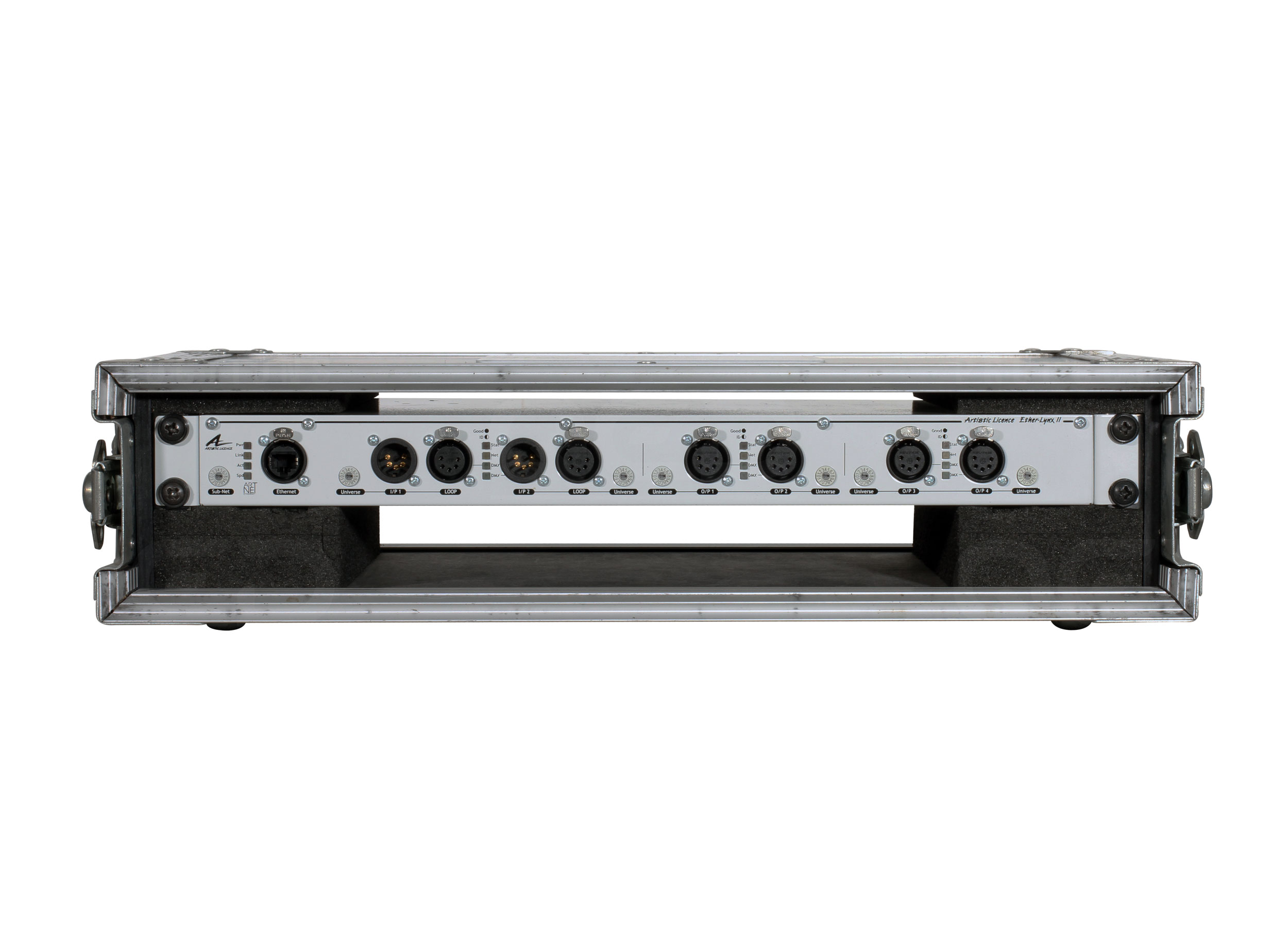

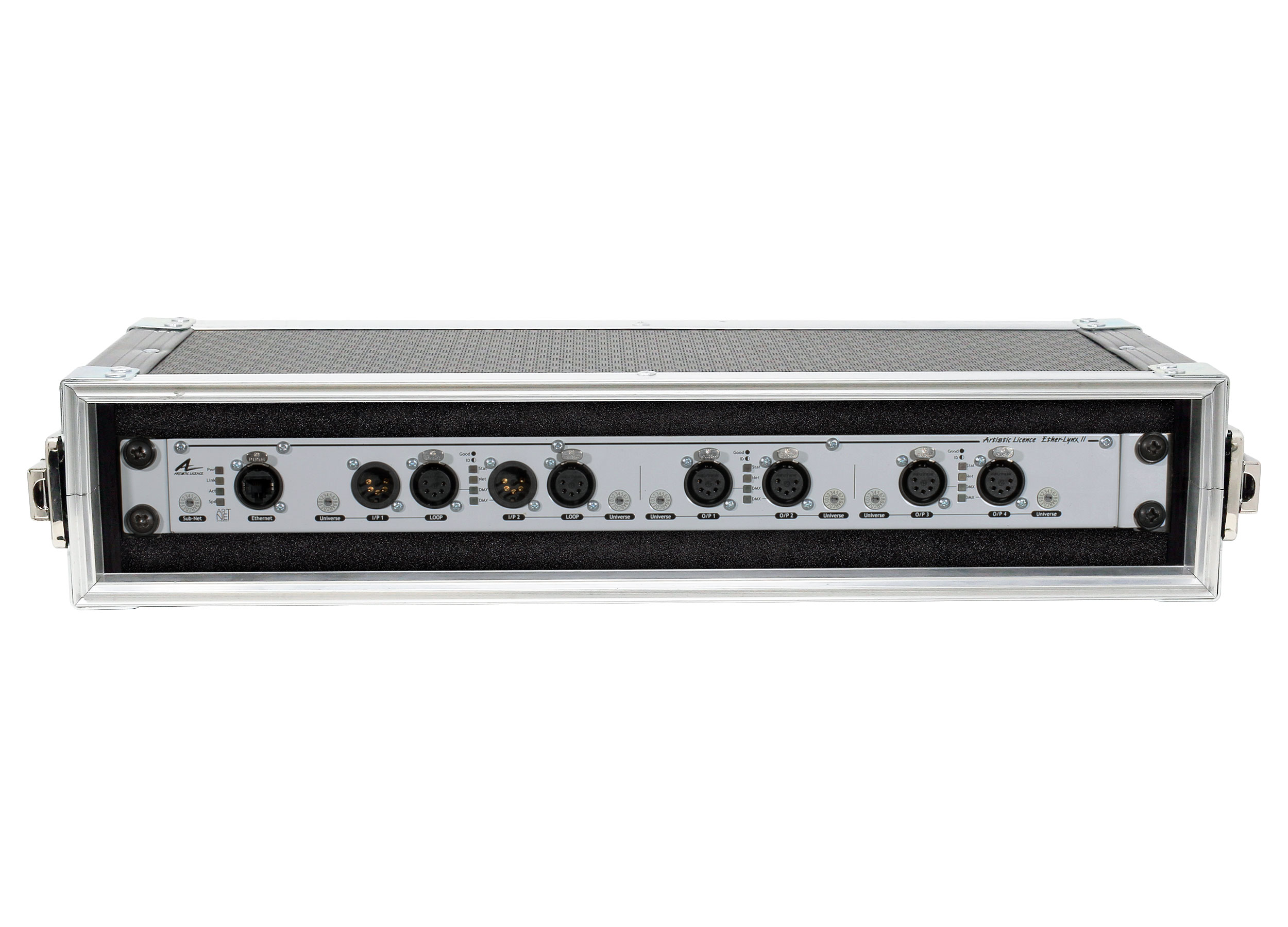

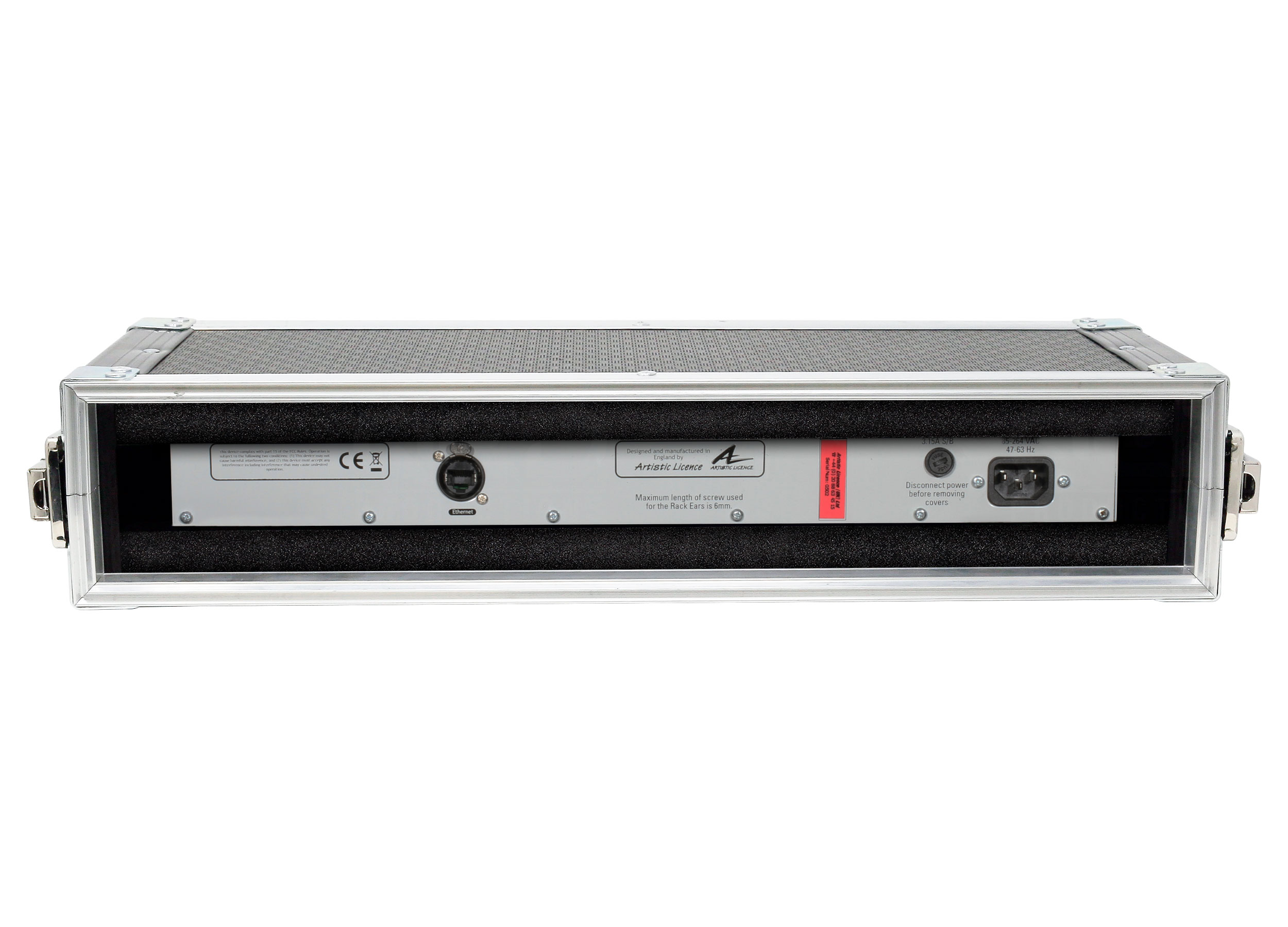

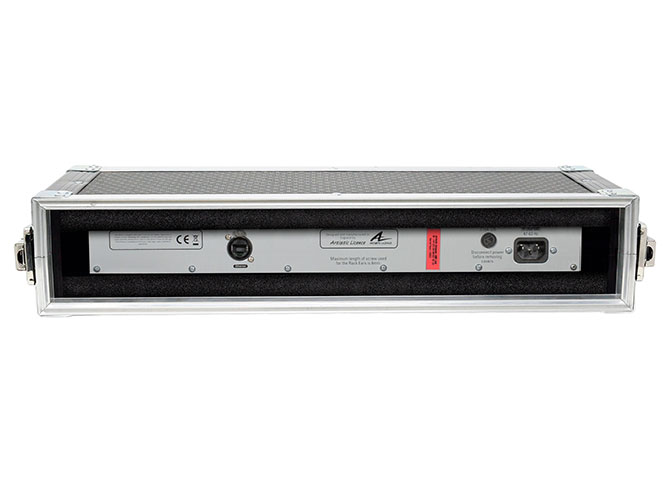

Artistic Licence Ether-Lynx II

Art-Net to DMX-512 interface

Features

DMX routing by Ethernet
Two independently Isolated DMX512 inputs
Four DMX512 outputs
10BaseT Ethernet Port
Data activity indicators
Compatible with Art-Net II
Compatible with DMX512-A
Compatible with RDM V1.0 (E1.20 - 2006 ESTA Standard)

Technical Specification

Listing CE FCC
IP Rating Indoor use
Power 100W
Input Voltage 90-250VAC
Height 1RU
Depth 257mm
Width 19" Rack
DMX Control Connections XLR5
Art-Net Connections Ethercon
Mains Connection IEC
Isolation Ethernet port Isolated
Isolation Power input Isolated
Isolation DMX Inputs Isolated
Isolation DMX Outputs Ground Referenced
