Analog Way Di-Ventix II 8044

8-input seamless switcher

Overview

Di-VentiX II™ by Analog Way is a Multi Layer Mixer Scaler Seamless Switcher with Universal Analog and Digital input/output and Full High Resolution Digital Processing. It offers numerous Live effects including Keying and Moving PiP as well as 3 different operation modes: Multi Layer Mixer, Stand alone Embedded Edge Blending and 8 by 2 Seamless Sync Matrix.

Features

4 Live Layers
Video Output option in order to monitor the Program/Preview at the same time
3 modes: Seamless Mixer, 8x2 Seamless Matrix or Edge Blending
Full Digital In/Out Processing
Very powerful and easy to use Soft Edge

Technical Specification

Analog Inputs (All inputs #1 to #8) SD-TV Composite, S.Video, YUV, RGsB or RGBS
NTSC: 15.735kHz / 60Hz
PAL/SECAM : 15.625kHz / 50Hz

ED/HD-TV
RGsB, RGBS or YUV
480p / 60 Hz - 576p / 50 Hz - 720p, 1080i, 1035i/50 or 60Hz-1080p/24, 25, 30, 50 or 60Hz-1080psF/24, 25 or 30Hz

Computer
RGBHV, RGBS or RGsB
Resolution up to 1600x1200 / 60 Hz, 1920x1200 / 60 Hz or 2048x1080 / 60 Hz
Horizontal frequency from 31.5 to 130 kHz
Vertical frequency up to 130 Hz
FpxMax = 165MHz
Digital Inputs ( Inputs #1 to #4 only) DVI-D: SD-TV, ED-TV, HD-TV and Computer formats
SDI: SD-TV & HD-TV - YUV / 10bits / 4:2:2
Automatic synchronization detection
Main and Preview Outputs Computer Digital and Analog
RGBHV, RGBS or RGsB and DVI
Resolution up to 1600x1200 / 60 Hz, 1920x1200 / 60 Hz or 2048x1080 / 60 Hz
Vertical frequency 50, 60, 72 or 75 Hz depending on Output format FpxMax = 165MHz

HD-TV
RGsB, RGBS or YUV, DVI and HD-SDI
720p, 1080i, 1035i / 50 or 60Hz - 1080p / 24, 25, 30, 50 or 60Hz-1080psF/24, 25 or 30Hz
Analog Genlock Input: HD Black 3 levels or SD Black Burst
Output: Active loop through

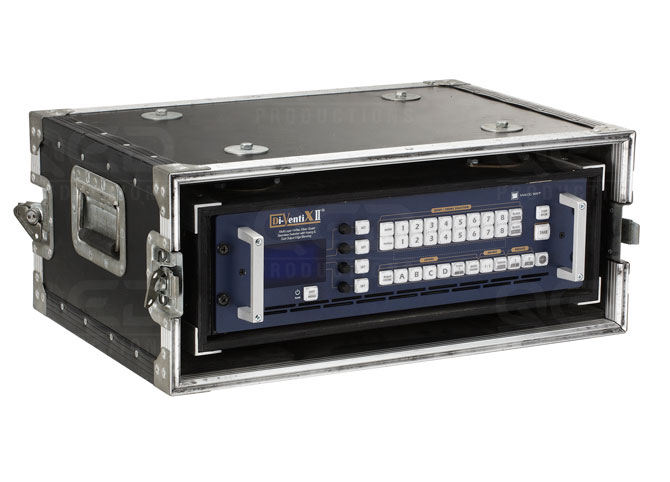

User Controls - Front Panel Standby On/Off
Input, Layer and Logo direct access
Freeze/Black
User defined layer properties
Aspect ratio: 1/1 - Cropped - Full Screen
Large Graphic VFD screen with control knobs and buttons for easy and fast access to menus and adjustments

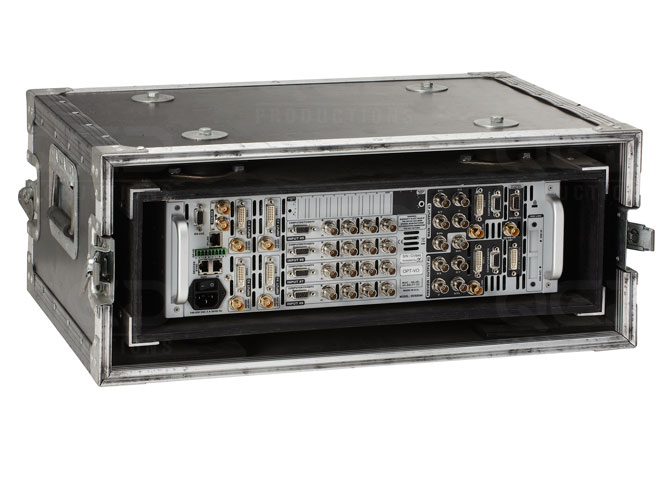

Connectors - Rear Panel Input #1 to #4 Connectors
DVI-I Female: (Digital and Analog SD/ED/HD-TV and Computer)
BNC (SD/HD-SDI)

Input #5 to #8 Connectors
HD15-F and 4xBNC: (Analog SD/ED/HD-TV and Computer)

Main and Preview Output Connectors
Each output is fitted with:
DVI-I Female: (Digital and Analog) RGB or YUV
HD15 Female: RGB or YUV - BNC : HD-SDI
BNC (x5): RGB or YUV

Miscellaneous
BNC (x2): Analog Genlock In and Loop Out
RJ45 (x2): Proprietary Device Synchronization
MCO 8 pins: GPI/O
DB9: RS232 for remote control
RJ45: Ethernet connection
AC mains connector with On/Off switch
Dimensions (D x W x H) 16.5" 19" x 5.25" (420 mm x 480 mm x 133 mm)
Weight 10kg / 22lbs
Power Supply Internal, universal, automatic, 100-250 V; 50/60 Hz; 250W(UL, CSA, GS, CE)
