AV Stumpfl 8' x 6' System 32 Monoblox

2440mm x 1830mm - Front & Rear Surfaces

Features

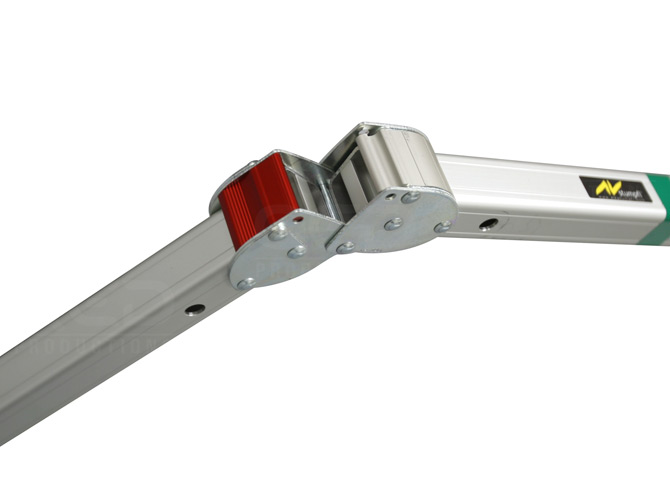

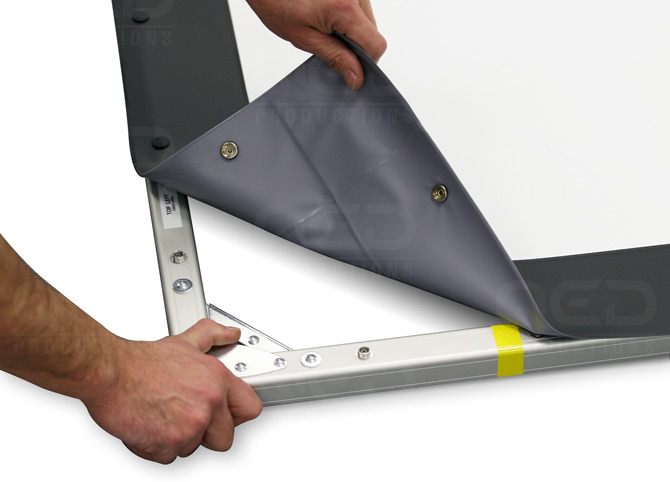

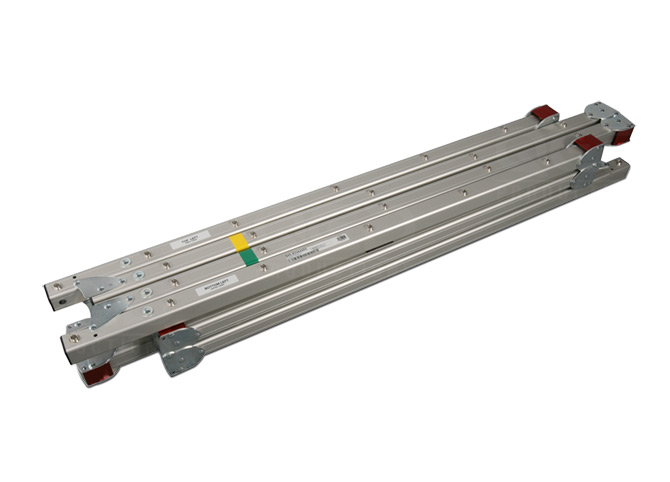

1 x Monoblox single-piece aluminum frame with snap joints
Front or rear surface

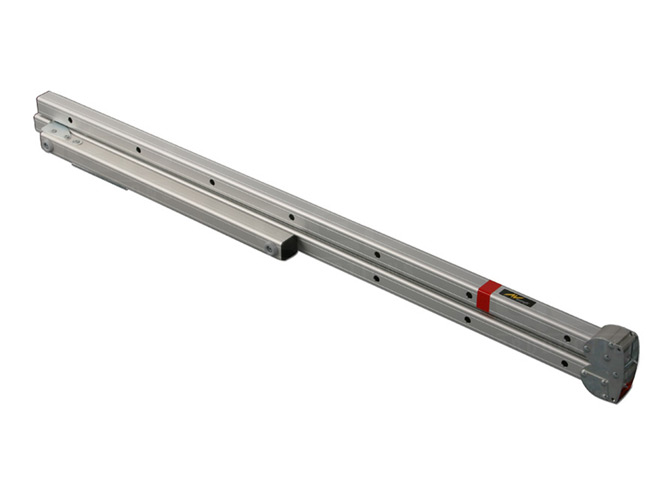

2 x T32 7'3" legs
Transportation case

Technical Specification

Front projection screen materialFlex White CI - 100 % light-tight, flame resistant.
Gain factor1.02
Viewing angle+/- 50°
Rear projection screen materialFlex Rear MO - cleanable, flame resistant.
Gain factor2.25
Viewing angle+/- 45°
Size of projection area (image dimensions)8' x 6' (244cm x 183cm) W x H
Frame size (outer dimensions)8'8" x 6'8" (264cm x 203cm) W x H
Bottom edge height (with legs)Minimum - 2.4" (6cm) / Maximum - 2'8" (82cm)
Top edge height (with legs)Minimum - 6'10" (209cm) / Maximum - 9'4" (285cm)
Shipping weight27.8kg
