AV Stumpfl 13'3" x 7'6" System 32 Monoblox

4050mm x 2290mm - Front & Rear Surfaces

Features

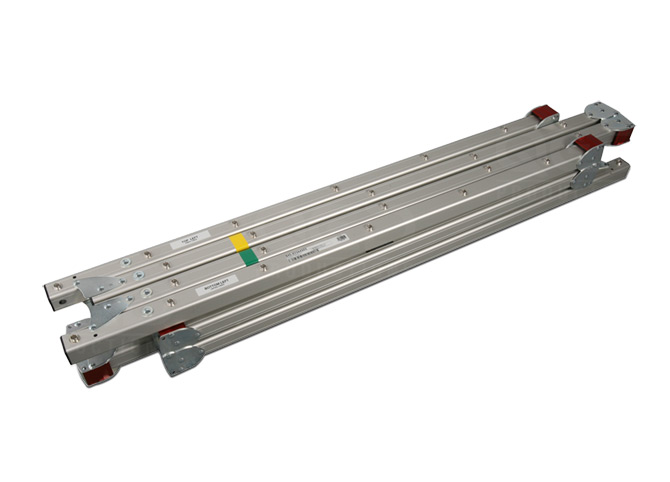

1 x Monoblox single-piece aluminum frame with snap joints
Front or rear surface
2 x AT32/64 14'2" legs
Transportation case

Technical Specification

Front projection screen materialFlex White CI - 100 % light-tight, flame resistant.
Gain factor1.02
Viewing angle+/- 50°
Rear projection screen materialFlex Rear MO - cleanable, flame resistant.
Gain factor2.25
Viewing angle+/- 45°
Size of projection area (image dimensions)13'3" x 7'6" (405cm x 229cm) W x H
Frame size (outer dimensions)13'11" x 8'2" (425cm x 249cm) W x H
Bottom edge height (with legs)Minimum - 3.5" (9cm) / Maximum - 4'9" (146cm)
Top edge height (with legs)Minimum - 8'6" (258cm) / Maximum - 12'11" (395cm)
Shipping weight40.6kg
